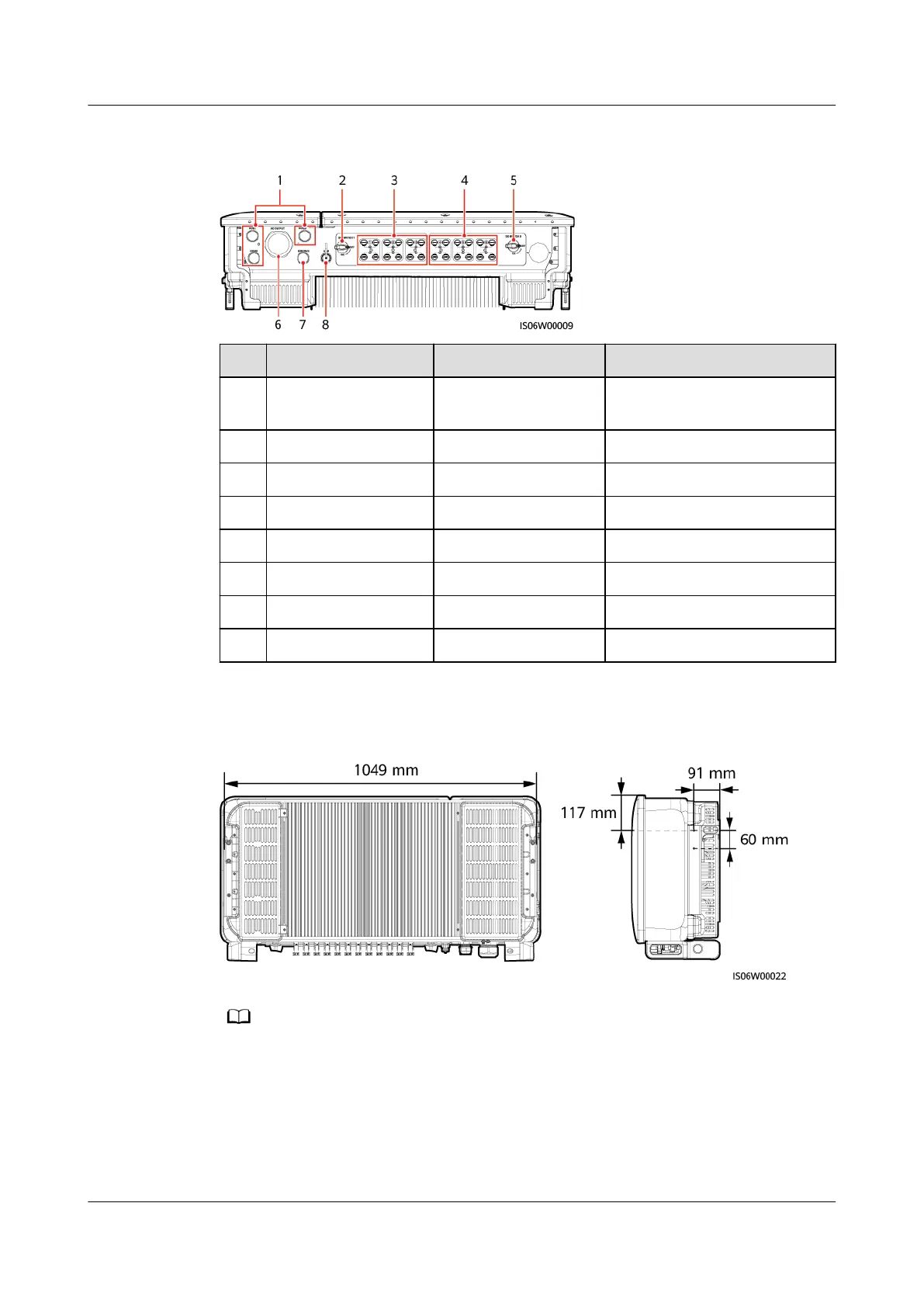

Bottom View
No. Component Silk Screen Description
1 Cable gland COM1, COM2, and
COM3
Inner diameter: 14–18 mm
2 DC switch 1 DC SWITCH 1 N/A
3 DC input terminals +/– Controlled by DC SWITCH 1
4 DC input terminals +/– Controlled by DC SWITCH 2
5 DC switch 2 DC SWITCH 2 N/A
6 Cable gland AC OUTPUT Inner diameter: 24–57 mm
7 Cable gland RESERVE Inner diameter: 14–18 mm
8 USB port USB N/A
Holes Reserved at the Side of the Enclosure
There are two M6 tapped holes reserved on both sides of the enclosures, which are used for
installing an awning.
2.3 Label Description
SUN2000-(50KTL, 60KTL, 65KTL)-M0
User Manual 2 Overview
