Huawei SUN2000-50KTL-M0 - Optional) Installing the Solar Tracker Power Cable

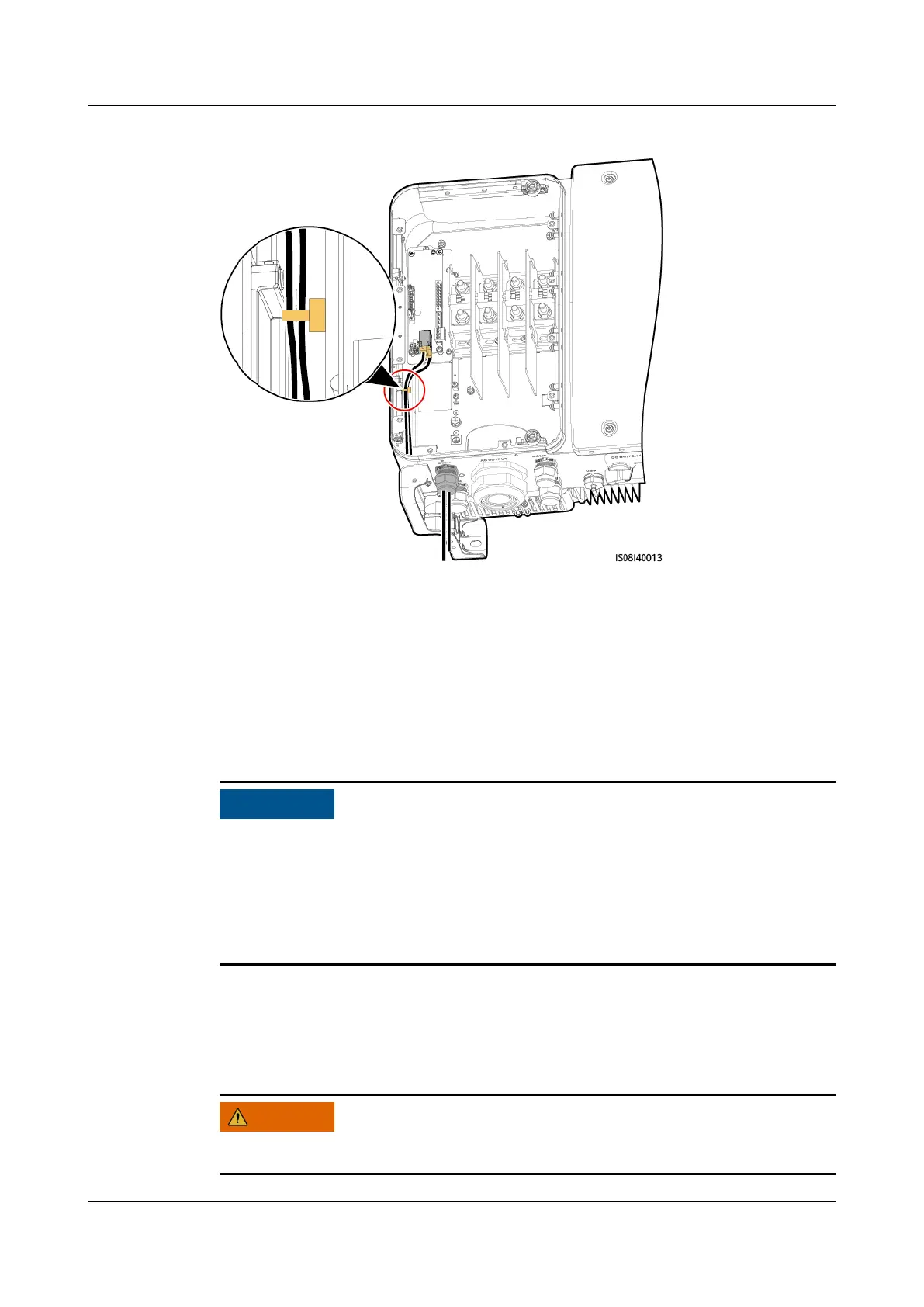

Figure 5-34 Bundling communications cables
Step 5 Tighten the thread-lock sealing nut and seal the cable gland.
----End
5.6.3 (Optional) Installing the Solar Tracker Power Cable
The solar tracker power cable can be installed on the SUN2000-65KTL-M0 only.
Precautions
NO TICE
● A switch-disconnector-fuse or fuse-switch-disconnector with a voltage of no
less than 500 V, current of 16 A, and protection type of gM needs to be
installed between the SUN2000 and the tracker controller for protection.
● The cable between the wiring terminal on the power cable and the switch-
disconnector-fuse or fuse-switch-disconnector should be less than or equal to
2.5 meters.
Cable Specications
Recommended: dual-layer three-core outdoor copper cable with a conductor
cross-sectional area of 10 mm
2
.
WARNING
Do not place ammable materials around the cable.
