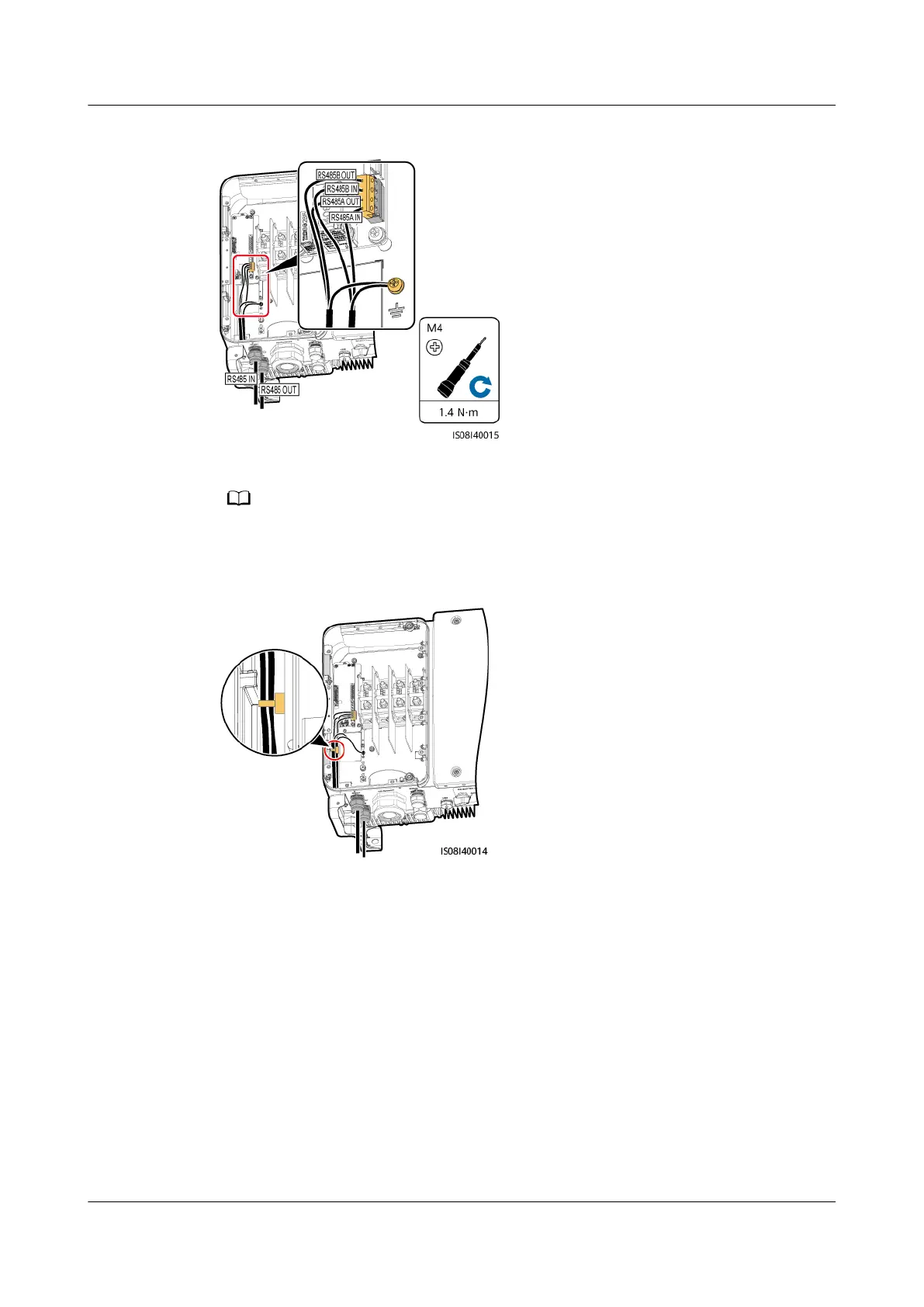

Figure 5-28 Connecting communications cables
Step 5 Bundle communications cables after connecting them.
Tie the communication cables with the cables on internal side of the maintenance
compartment.
Figure 5-29 Bundling communications cables
Step 6 Tighten the thread-lock sealing nut and seal the cable gland.
----End
5.6.2.2 Connecting Cables to the RJ45 Network Port
RJ45 Connector Pin Denitions
Figure 5-30 shows an RJ45 connector.
