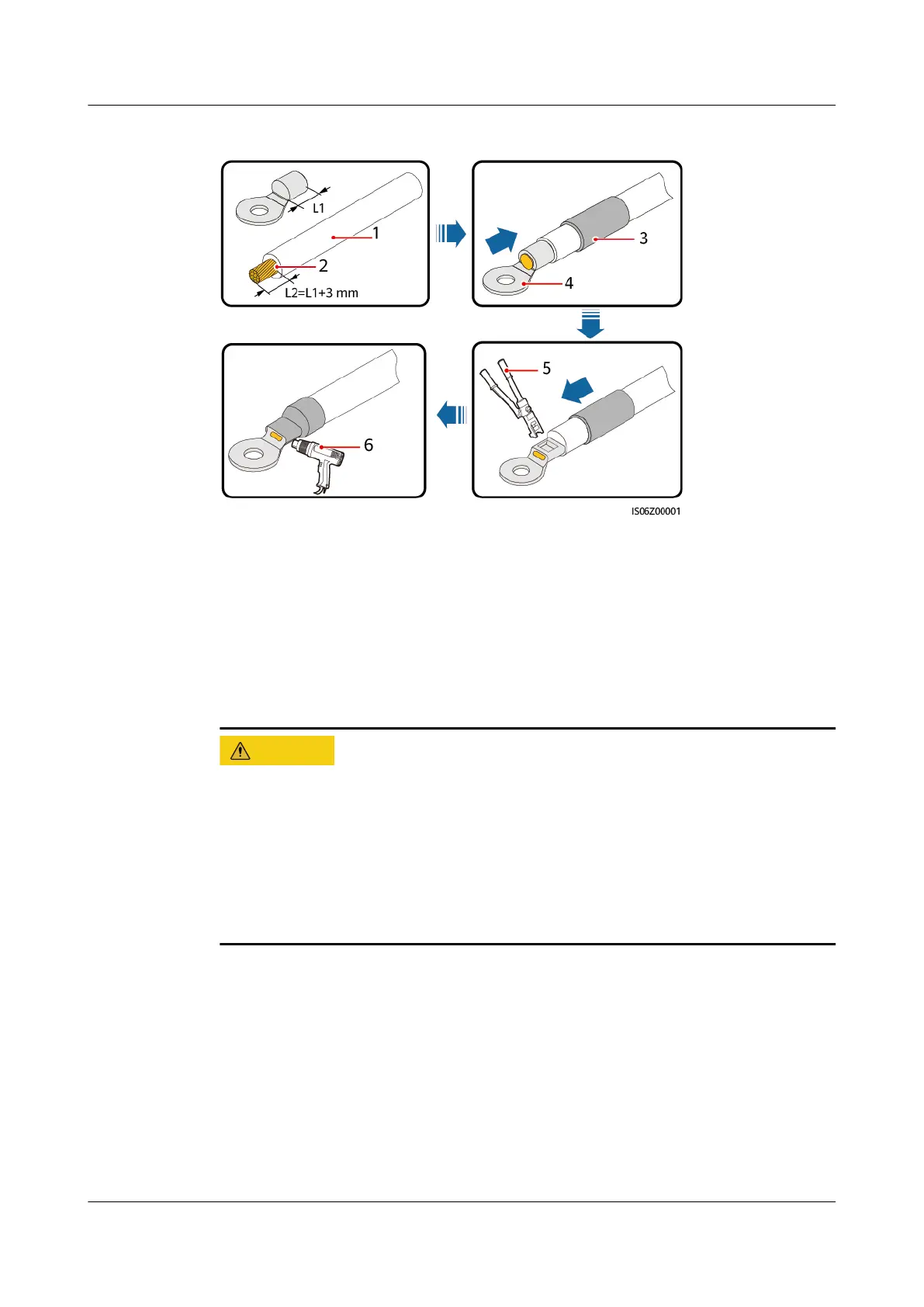

Figure 5-2 Crimping the OT Terminal
(1) Cable (2) Core wire (3) Heat shrink tubing
(4) OT terminal (5) Hydraulic pliers (6) Heat gun
5.3 Opening the Maintenance Compartment Door
Precautions
● Never open the host panel cover of the SUN2000.
● Before opening the maintenance compartment door, ensure that neither of the
AC and DC connections to the SUN2000 is connected.
● Do not open the maintenance compartment door in rainy or snowy days. If
unavoidable, take protective measures to prevent rain or snow from entering
the maintenance compartment.
● Do not leave extra hardware in the maintenance compartment.
Procedure
Step 1 Partially loosen the two screws on the maintenance compartment door.
SUN2000-(50KTL, 60KTL, 65KTL)-M0
User Manual 5 Electrical Connections
Issue 11 (2024-02-02) Copyright © Huawei Technologies Co., Ltd. 44
To Next Page
