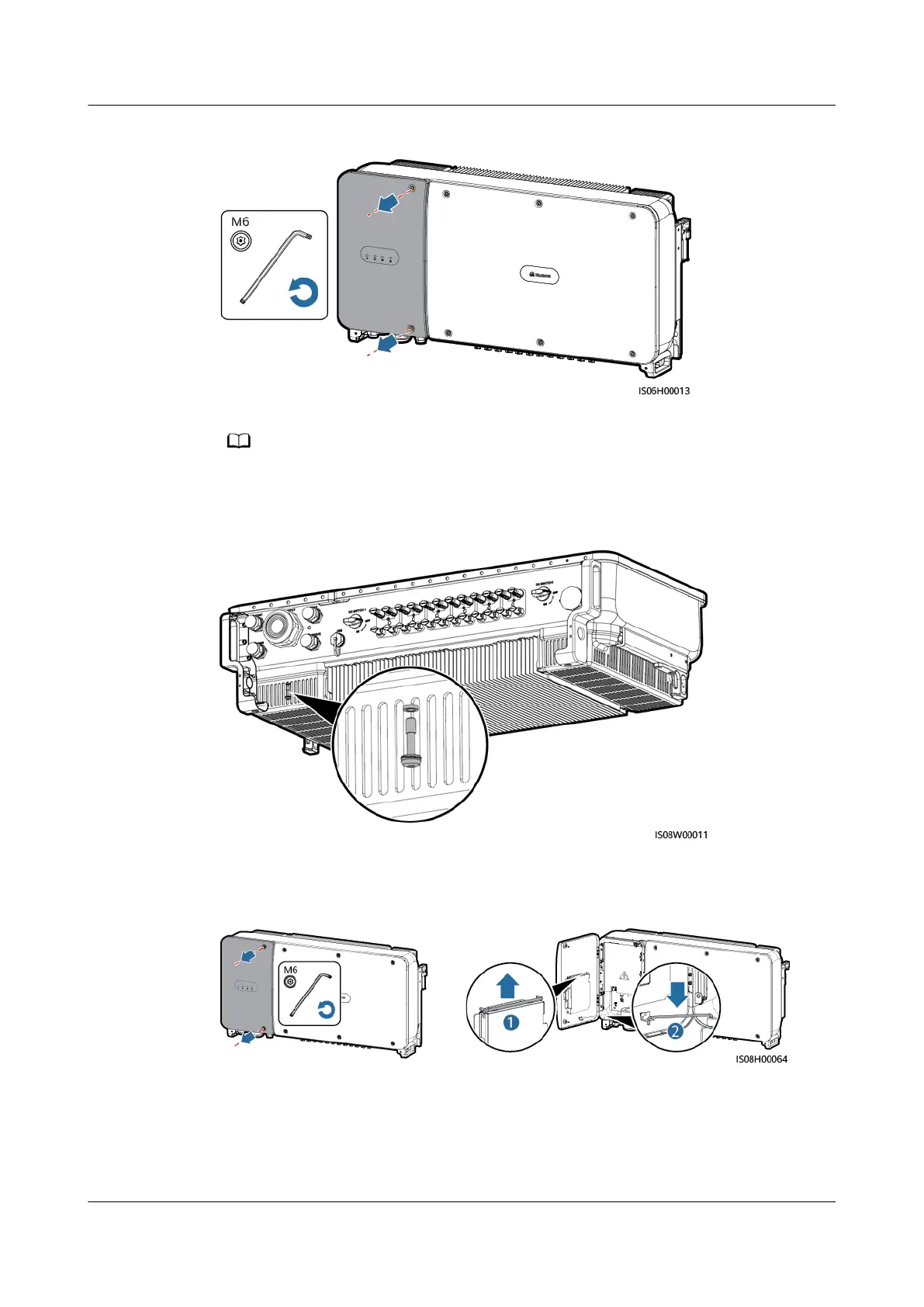

Figure 5-3 Loosening screws
If the screws on the enclosure door are lost, obtain spare screws from the tting bag bound
to the inductor cover at the bottom of the enclosure.
Figure 5-4 Position for spare screws
Step 2 Open the maintenance compartment door and keep it open with the support bar.
Figure 5-5 Keeping the door open with a support bar
Step 3 Remove the cover and hang it on the hook of the door.
SUN2000-(50KTL, 60KTL, 65KTL)-M0
User Manual 5 Electrical Connections
Issue 11 (2024-02-02) Copyright © Huawei Technologies Co., Ltd. 45
