Procedure
Step 1 Remove an appropriate length of the jacket and insulation layer from the tracking
power cable using a wire stripper. (Ensure that the jacket is in the maintenance
compartment.)

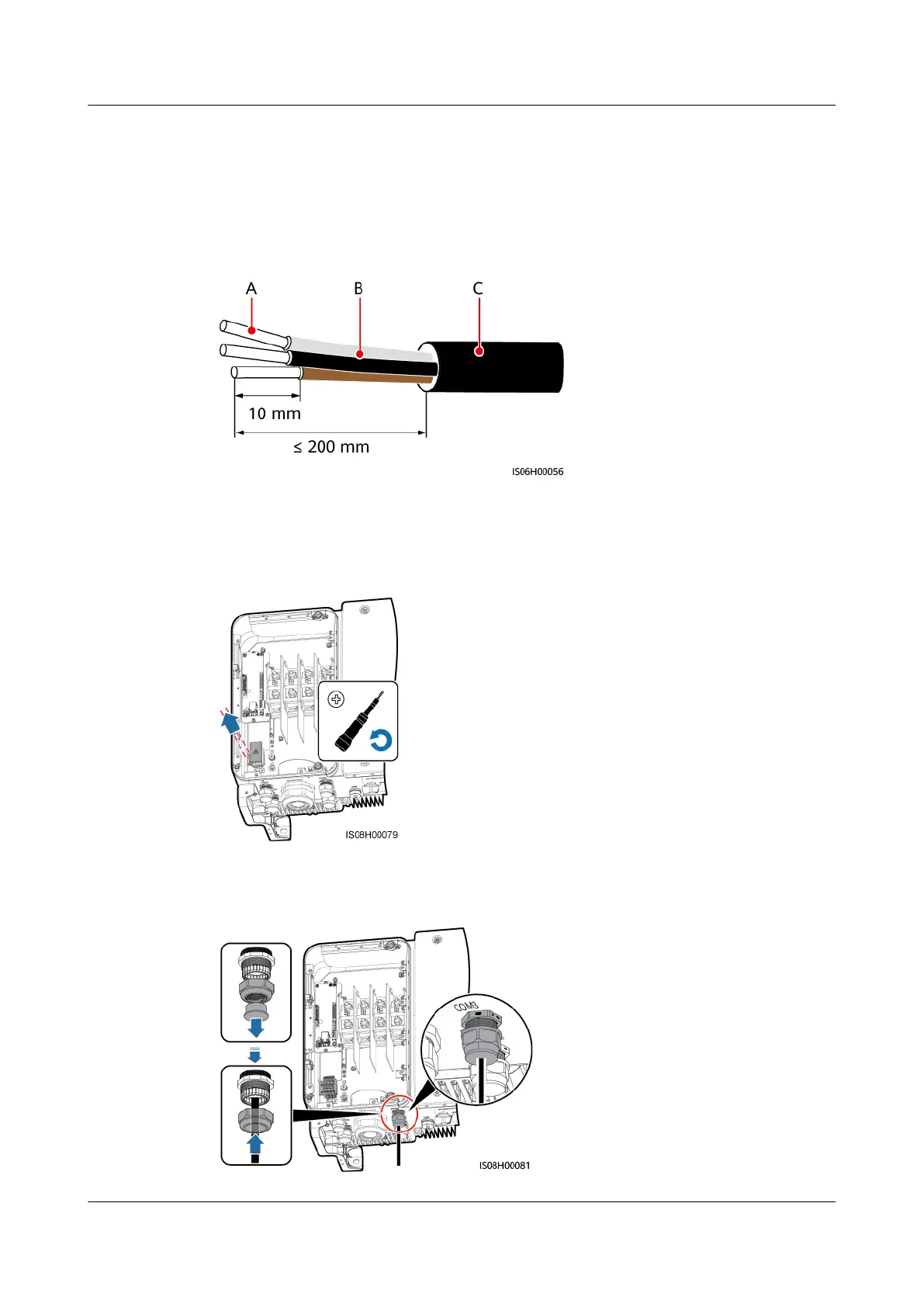

Figure 5-35 Stripping a cable
(A) Core wire (B) Insulation layer (C) Jacket
Step 2 Remove the shielding cover from wiring terminals.
Figure 5-36 Removing a shielding cover
Step 3 Route the cable through the cable gland.
Figure 5-37 Routing a cable
SUN2000-(50KTL, 60KTL, 65KTL)-M0
User Manual 5 Electrical Connections
Issue 11 (2024-02-02) Copyright © Huawei Technologies Co., Ltd. 69
