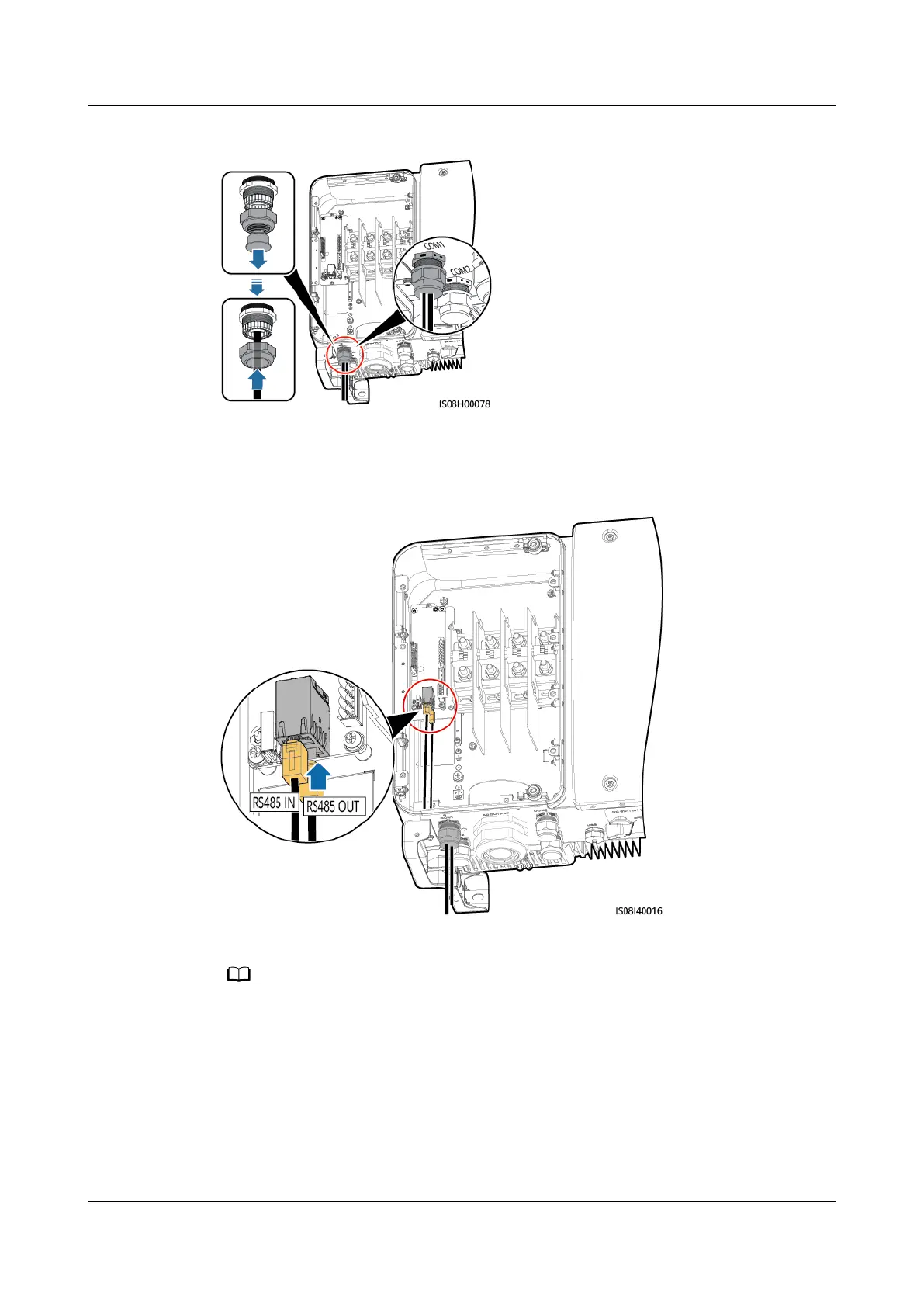

Figure 5-32 Routing a cable
Step 3 Insert the RJ45 connector into the RJ45 network port in the SUN2000
maintenance compartment.
Figure 5-33 Connecting communications cables
Step 4 Bundle communications cables after connecting them.
Tie the communication cables with the cables on internal side of the maintenance
compartment.
SUN2000-(50KTL, 60KTL, 65KTL)-M0
User Manual 5 Electrical Connections
Issue 11 (2024-02-02) Copyright © Huawei Technologies Co., Ltd. 67
