NO TE
The nameplate gure is for reference only.
2.4 Working Principles
2.4.1 Circuit Diagram
Two PV strings connect to the SUN2000, and their maximum power points are
tracked by two maximum power point tracking (MPPT) circuits. The SUN2000
converts DC power into three-phase AC power through an inverter circuit. Surge
protection is supported on both the DC and AC sides.

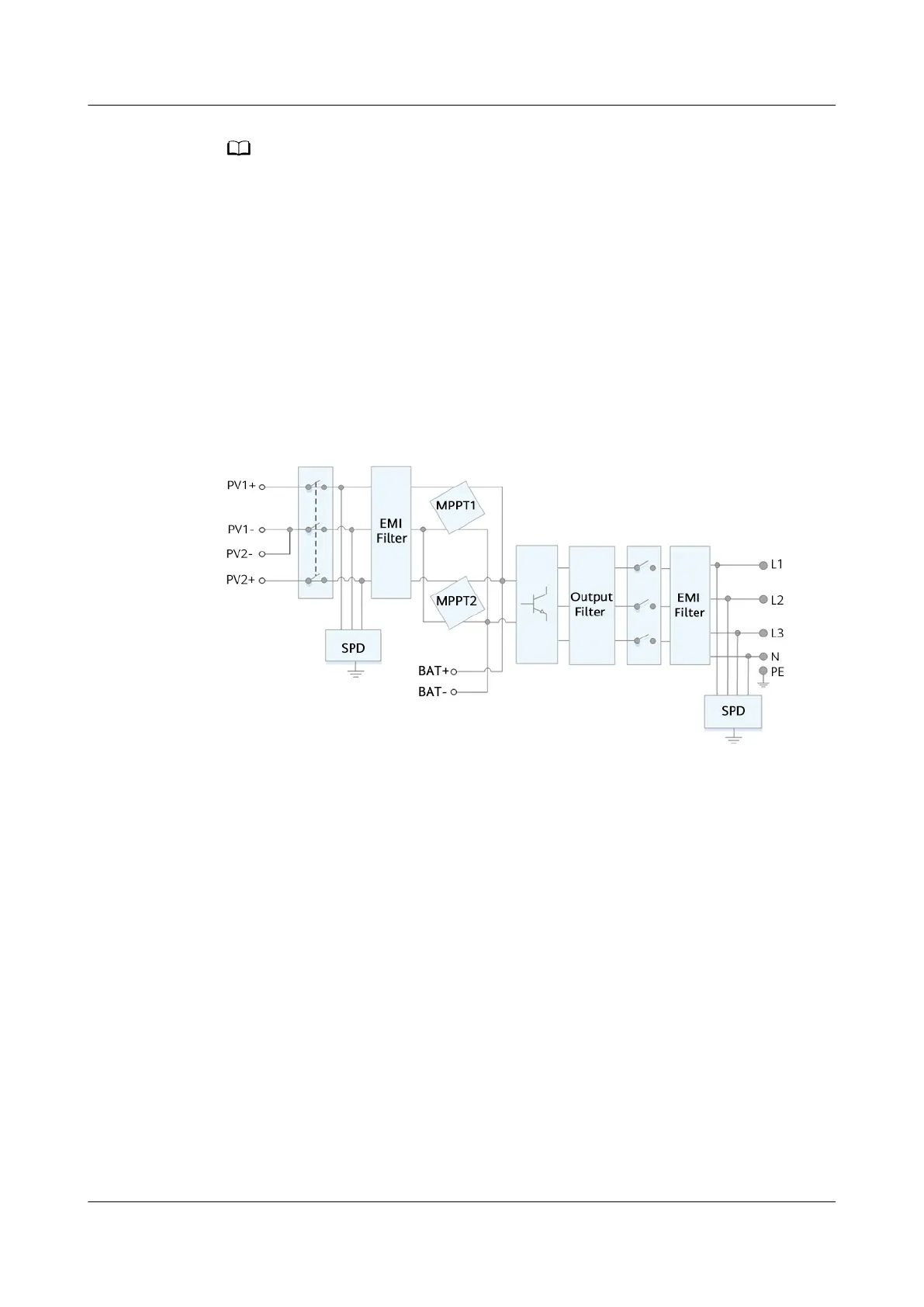

Figure 2-6 SUN2000 conceptual diagram
2.4.2 Working Modes
The SUN2000 can work in Standby, Operating, or Shutdown mode.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 2 Overview
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 21

Table of Contents

Other manuals for Huawei SUN2000-6KTL-M1

Preview: Quick Guide
Quick Guide29 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Huawei SUN2000-6KTL-M1 and is the answer not in the manual?

Huawei SUN2000-6KTL-M1 Specifications

General IconGeneral
Max. Efficiency98.4%
Rated AC Output Power6000 W
Max. AC Apparent Power6600 VA
AC Grid Frequency50/60 Hz
Dimensions525 x 470 x 146.5 mm
Weight17 kg
Operating Temperature Range-25°C to +60°C
IP RatingIP65
Max. DC Voltage1100 V
Start Voltage200 V
European Weighted Efficiency97.8%
Cooling MethodNatural Convection
Max. DC Power9000 W
Nominal Output Voltage230 V
