Huawei SUN2000-6KTL-M1 User Manual

CA UTION
● Stay away from the equipment when preparing cables to prevent cable scraps
from entering the equipment. Cable scraps may cause sparks and result in
personal injury and equipment damage.
● When routing PV cables whose pipe is less than 1.5 m long, the positive and
negative PV string cables shall be routed in dierent pipes to prevent cable
damage and short circuits caused by improper operations during construction.
NO TE
The cable colors shown in the electrical connection diagrams provided in this section are for
reference only. Select cables in accordance with local cable specications (green-and-yellow
cables are only used for protective earthing).
5.2 Installation Preparation

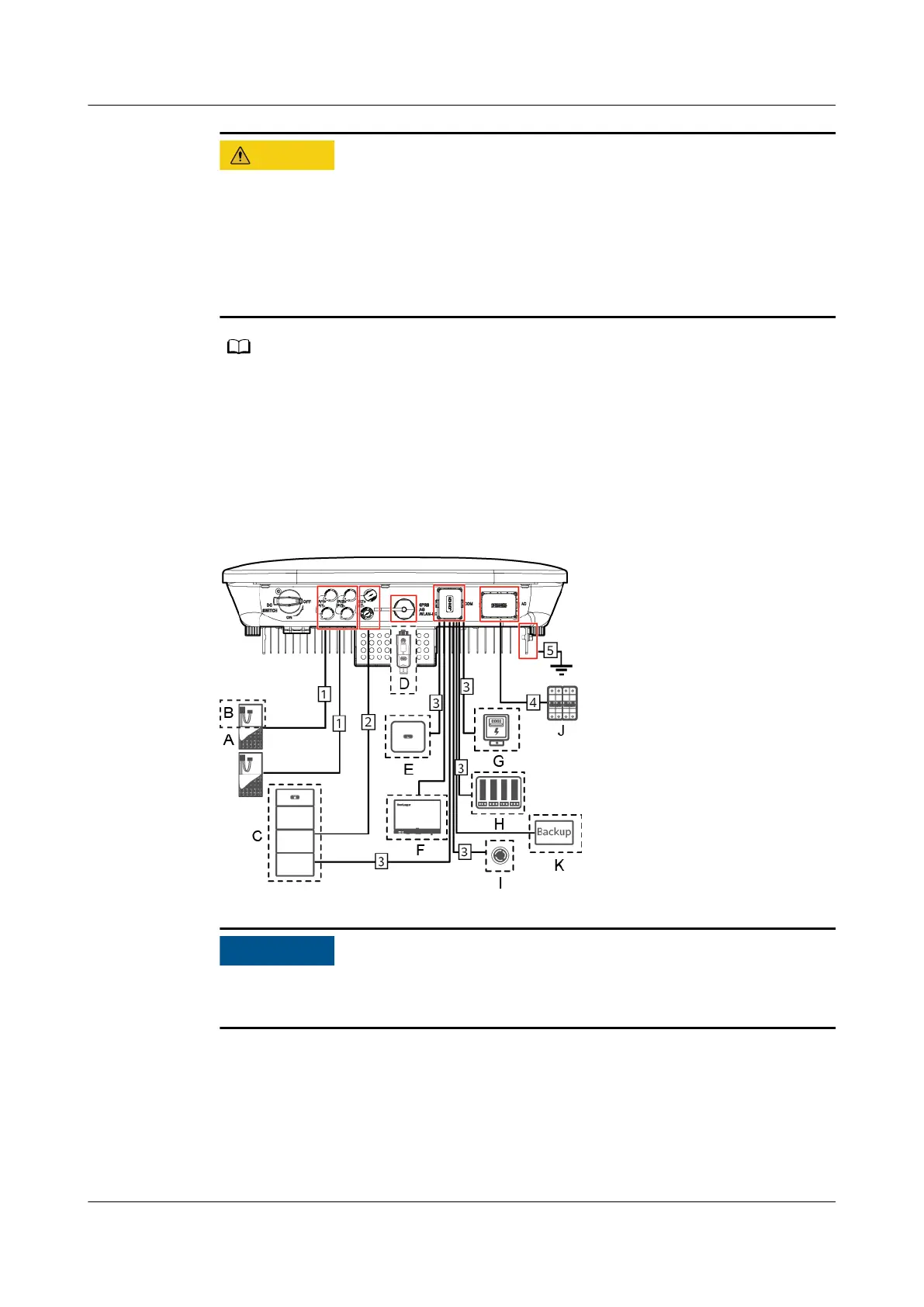

Figure 5-1 SUN2000 cable connections (dashed boxes indicate optional
components)
NO TICE
If a Smart Dongle is congured, it is recommended that you install it before
connecting the signal cable.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 5 Electrical Connections
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 39

Huawei SUN2000-6KTL-M1 Specifications

General

Max. Efficiency	98.4%
Rated AC Output Power	6000 W
Max. AC Apparent Power	6600 VA
AC Grid Frequency	50/60 Hz
Dimensions	525 x 470 x 146.5 mm
Weight	17 kg
Operating Temperature Range	-25°C to +60°C
IP Rating	IP65
Max. DC Voltage	1100 V
Start Voltage	200 V
European Weighted Efficiency	97.8%
Cooling Method	Natural Convection
Max. DC Power	9000 W
Nominal Output Voltage	230 V
