Two M6 screw holes are reserved on both left and right sides of the enclosure for installing
an awning.
4.5.1 Wall-mounted Installation
Procedure
Step 1 Determine the positions for drilling holes and mark the positions using a marker.
Step 2 Secure the mounting bracket.
NO TE
● M6x60 expansion bolts are delivered with the SUN2000. If the length and number of the
bolts do not meet installation requirements, prepare M6 stainless steel expansion bolts
by yourself.
● The expansion bolts delivered with the inverter are used for solid concrete walls. For
other types of walls, prepare bolts by yourself and ensure that the wall meets the load
bearing requirements of the inverter.

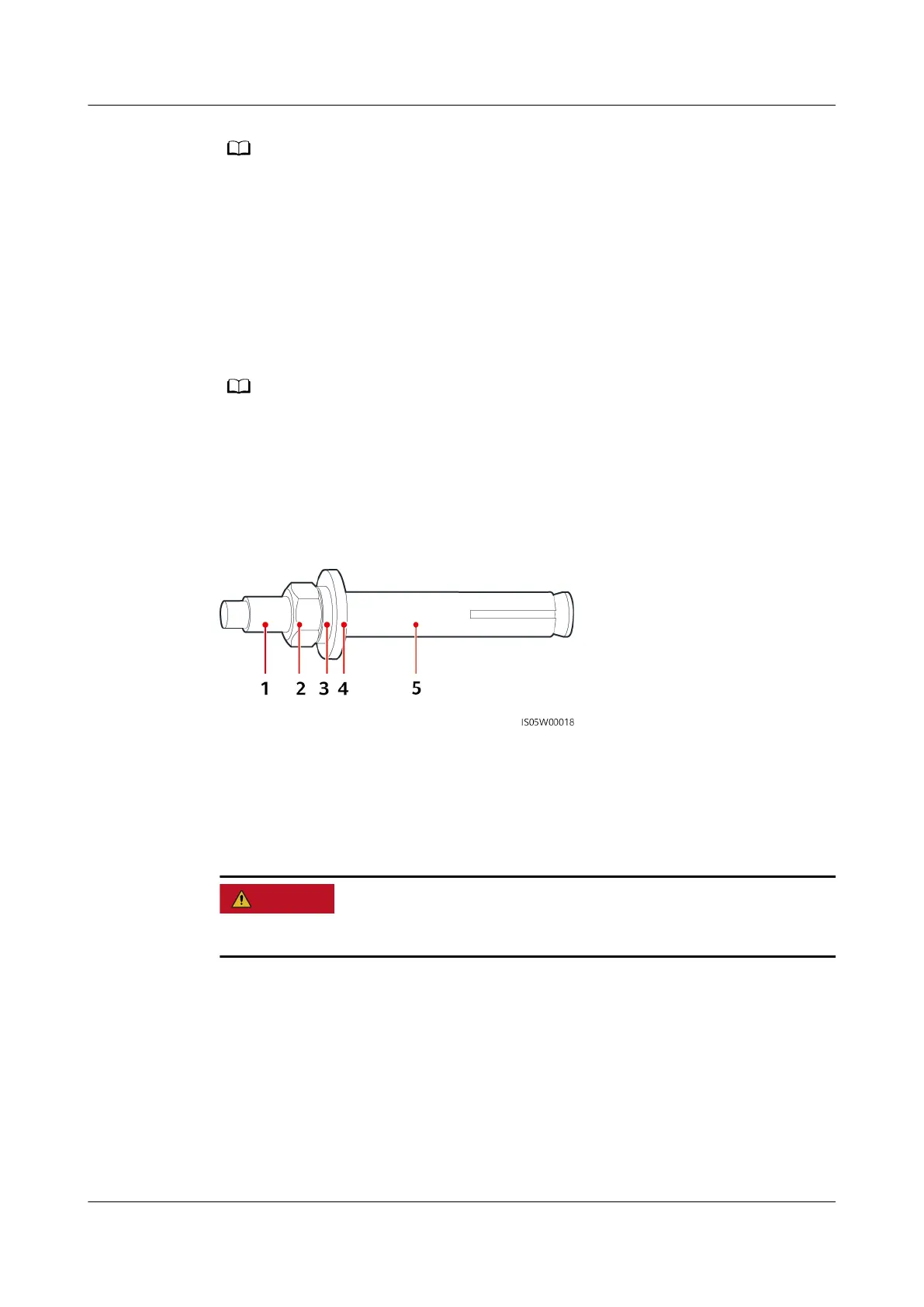

Figure 4-8 Expansion bolt composition
(1) Bolt
(2) Nut (3) Spring washer
(4) Flat washer (5) Expansion sleeve
D ANGER
Avoid drilling holes in the water pipes and cables buried in the wall.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 4 Installation
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 32

Huawei SUN2000-6KTL-M1 Specifications

General

Max. Efficiency	98.4%
Rated AC Output Power	6000 W
Max. AC Apparent Power	6600 VA
AC Grid Frequency	50/60 Hz
Dimensions	525 x 470 x 146.5 mm
Weight	17 kg
Operating Temperature Range	-25°C to +60°C
IP Rating	IP65
Max. DC Voltage	1100 V
Start Voltage	200 V
European Weighted Efficiency	97.8%
Cooling Method	Natural Convection
Max. DC Power	9000 W
Nominal Output Voltage	230 V
