Huawei SUN2000-6KTL-M1 User Manual

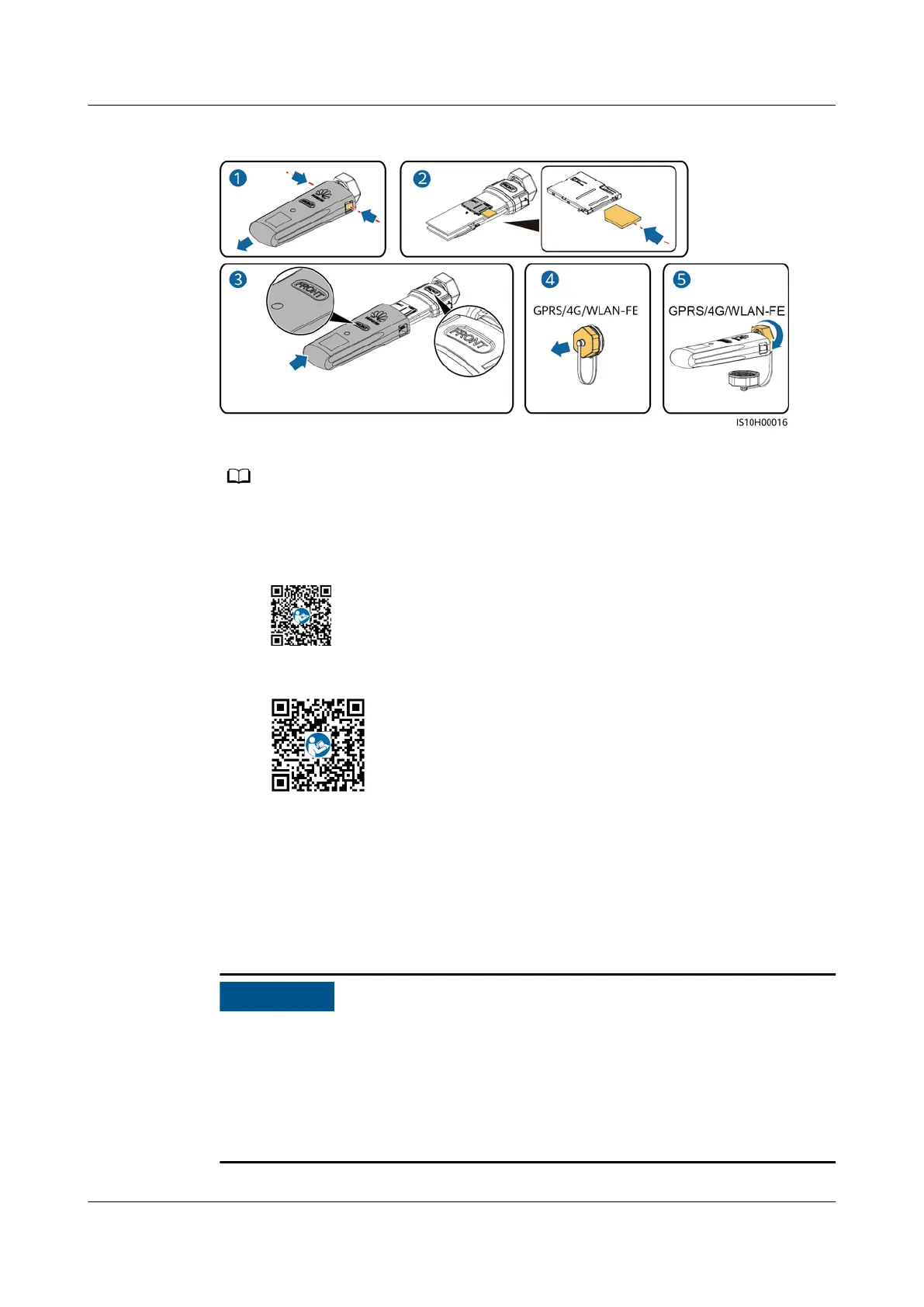

Figure 5-17 Installing a 4G Smart Dongle
NO TE
There are two types of Smart Dongle.
● For details about how to operate the WLAN-FE Smart Dongle SDongleA-05, see
SDongleA-05 Quick Guide (WLAN-FE). You can also scan the QR code to obtain the
document.
● For details about how to operate the 4G Smart Dongle SDongleA-03, see SDongleA-03
Quick Guide (4G). You can also scan the QR code to obtain the document.
The quick guide is delivered with the Smart Dongle.
5.8 (Optional) Connecting the Signal Cable
COM Port Pin Denitions
NO TICE
● When laying out the signal cable, separate it from the power cable and keep it
away from strong interference sources to avoid strong communication
interference.
● Ensure that the protective layer of the cable is inside the connector, that excess
core wires are cut o from the protection layer, that the exposed core wire is
totally inserted into the cable hole, and that the cable is connected securely.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 5 Electrical Connections
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 56

Huawei SUN2000-6KTL-M1 Specifications

General

Max. Efficiency	98.4%
Rated AC Output Power	6000 W
Max. AC Apparent Power	6600 VA
AC Grid Frequency	50/60 Hz
Dimensions	525 x 470 x 146.5 mm
Weight	17 kg
Operating Temperature Range	-25°C to +60°C
IP Rating	IP65
Max. DC Voltage	1100 V
Start Voltage	200 V
European Weighted Efficiency	97.8%
Cooling Method	Natural Convection
Max. DC Power	9000 W
Nominal Output Voltage	230 V
