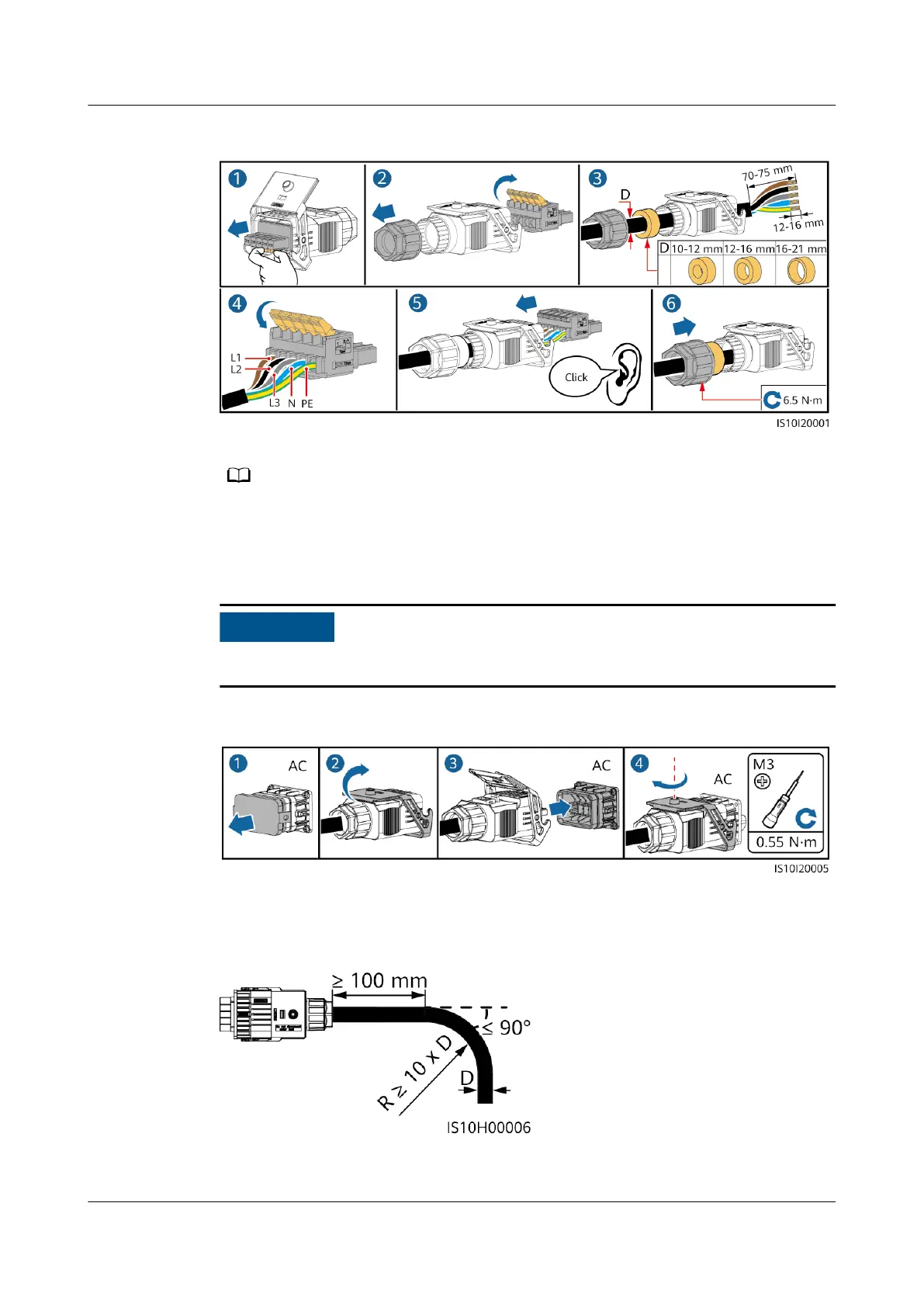

Figure 5-8 Five-core cable (L1, L2, L3, N, and PE)
The cable colors shown in the gures are for reference only. Select an appropriate cable
according to local standards.
Step 2 Connect the AC connector to the AC output port.
Ensure that the AC connector is connected securely.
Figure 5-9 Securing the AC connector
Step 3 Check the route of the AC output power cable.
Figure 5-10 Cable route
----End
