Huawei SUN2000-6KTL-M1 User Manual

(1) Shielding layer of the signal cable
NO TE
● The DTSU666-HW and YDS60-80 power meters support a maximum current of 80 A.
● If the SUN2000-(2KTL-6KTL)-L1 are cascaded with three-phase inverters, they must be
connected to the grid in the same phase.
● For a three-phase three-wire system, you need to set the cable connection mode.
Otherwise, the displayed voltage is incorrect.
● Ensure that the baud rates of the DTSU666-H, YDS60-C24, DTSU71 and DHSU1079-CT
meters are set to the default values. If they are changed, meters may go oine,
generate alarms, or aect the inverter output power.
Table 5-4 Select the cable connection mode
Paramet
er
Note
Select the cable connection mode:
0: n.34 indicates three-phase four-wire. 1: n.33 indicates three-phase
three-wire.
Procedure
Step 1 Connect the signal cable to the signal cable connector.

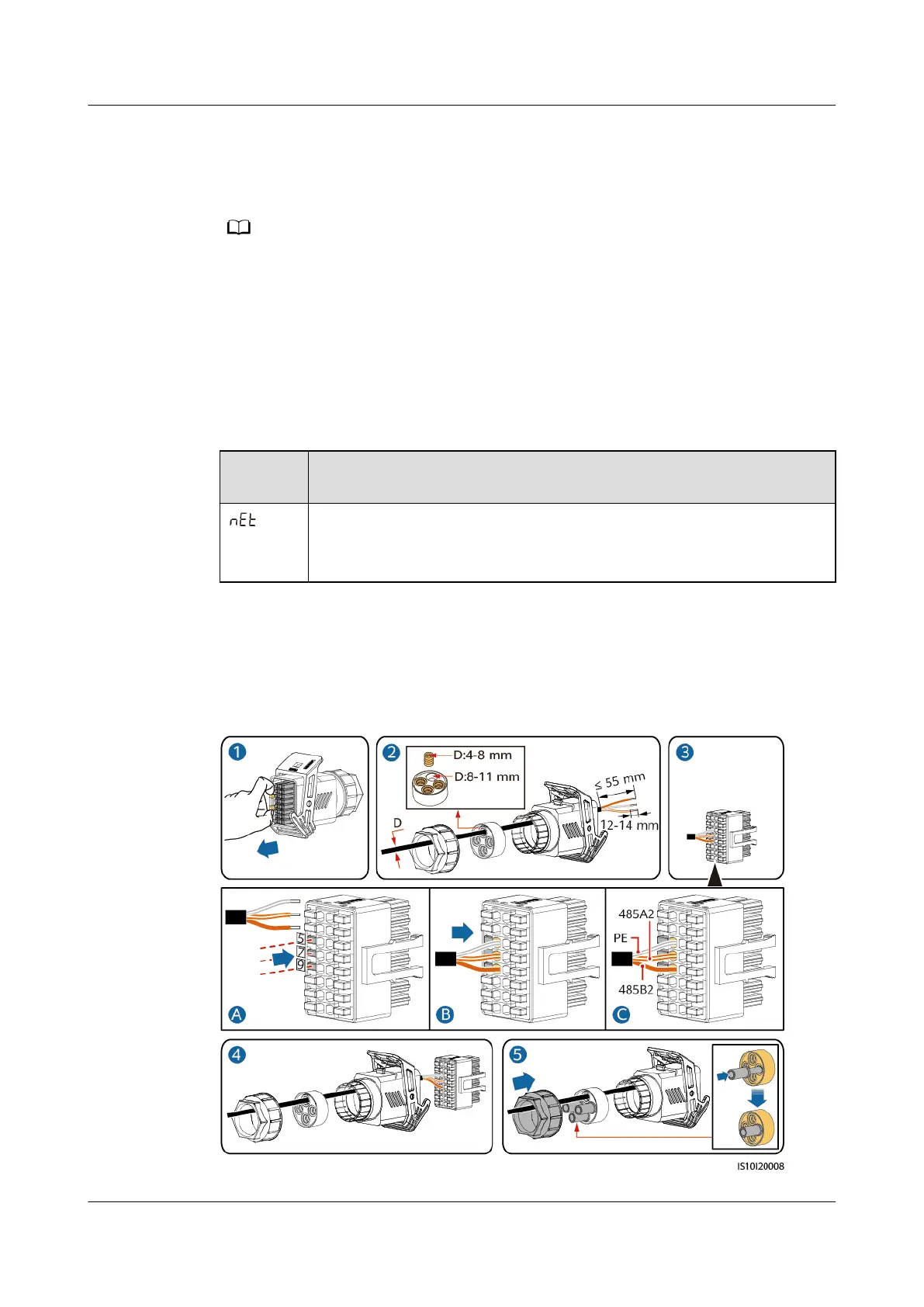

Figure 5-30 Installing the cable
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 5 Electrical Connections
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 67

Huawei SUN2000-6KTL-M1 Specifications

General

Max. Efficiency	98.4%
Rated AC Output Power	6000 W
Max. AC Apparent Power	6600 VA
AC Grid Frequency	50/60 Hz
Dimensions	525 x 470 x 146.5 mm
Weight	17 kg
Operating Temperature Range	-25°C to +60°C
IP Rating	IP65
Max. DC Voltage	1100 V
Start Voltage	200 V
European Weighted Efficiency	97.8%
Cooling Method	Natural Convection
Max. DC Power	9000 W
Nominal Output Voltage	230 V
