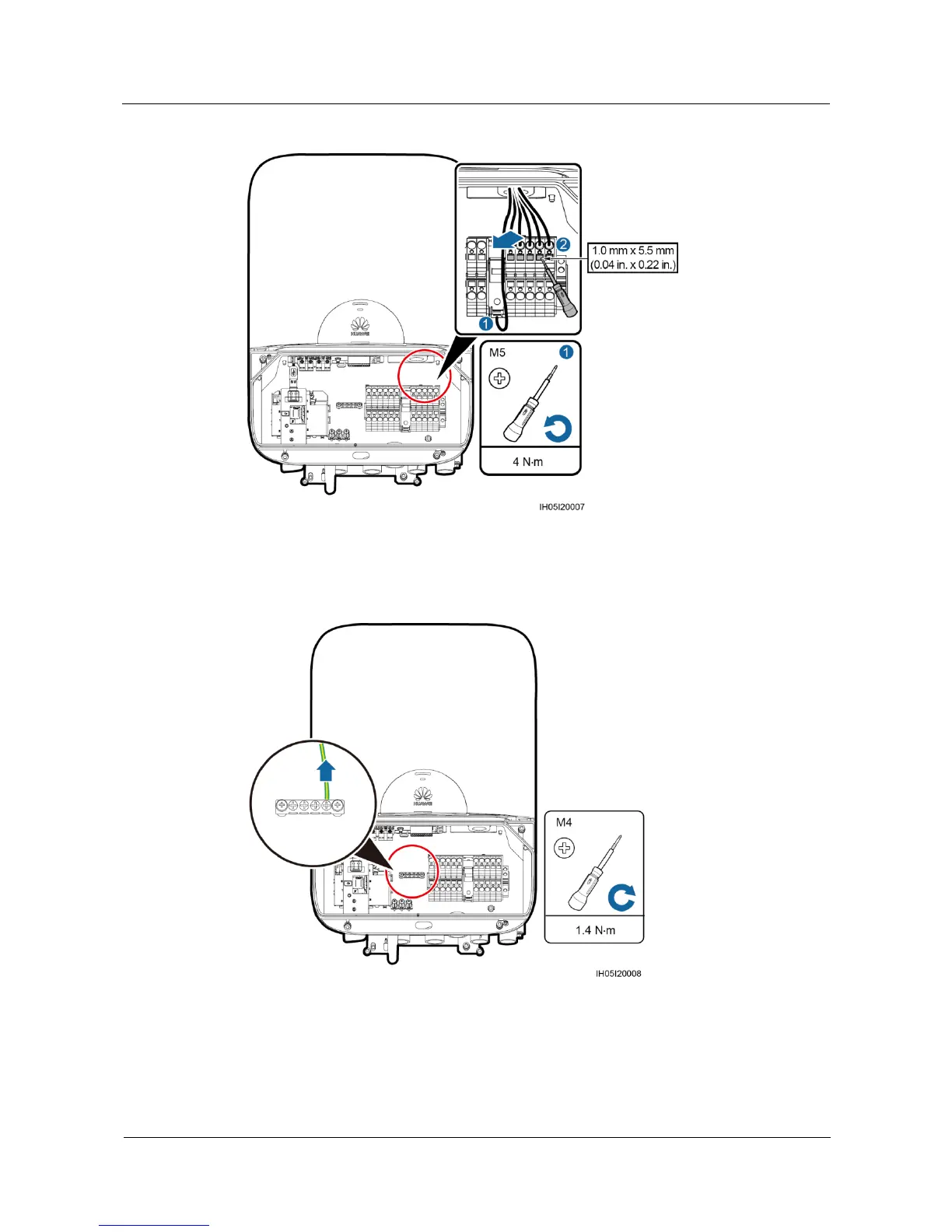

Figure 8-7 Removing the AC cable and the fuse cable
Step 6 Remove the ground cable.
Figure 8-8 Removing the ground cable
Step 7 Remove the external four M6 screws that secure the power and maintenance compartments.
