8 System Maintenance
Issue 01 (2018-05-21)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
138

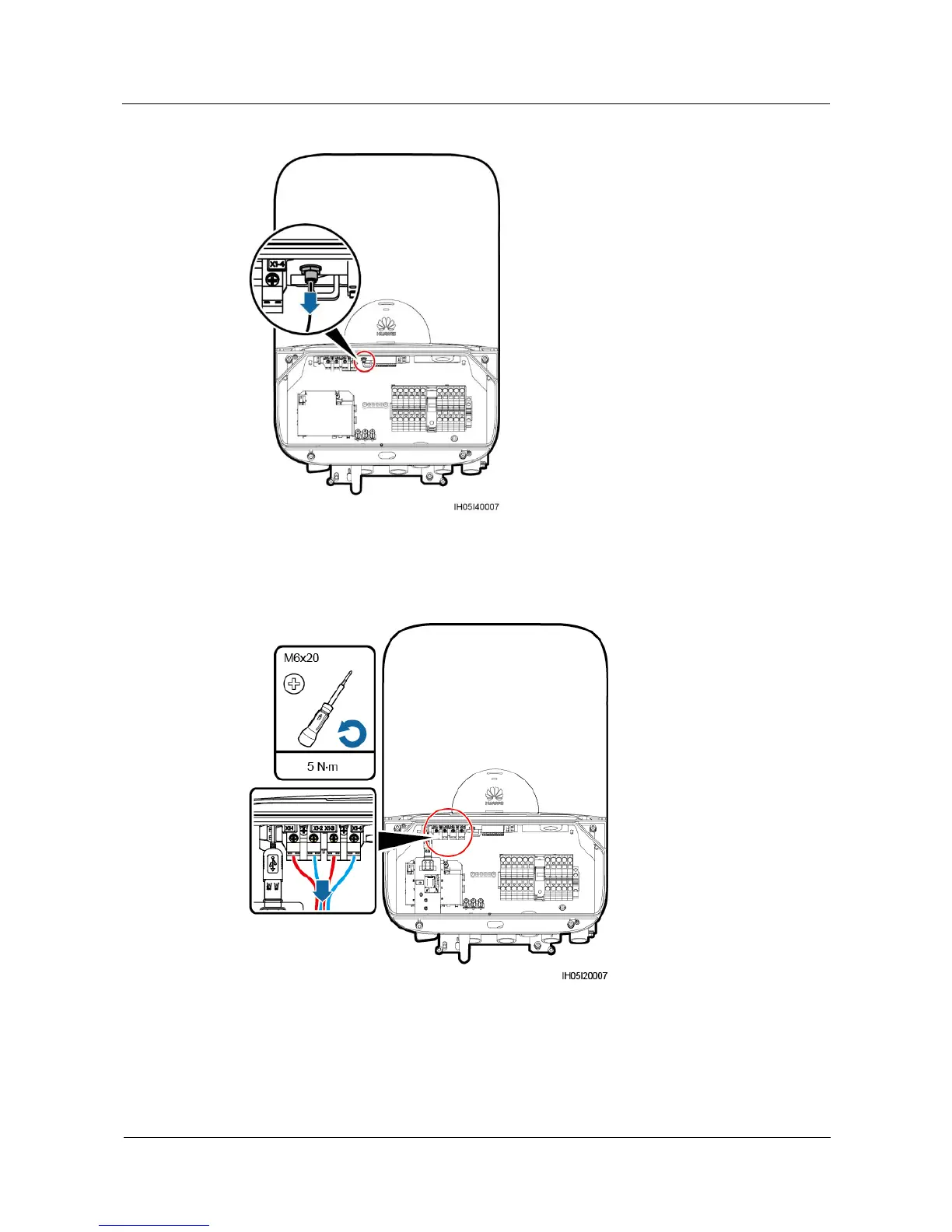

Figure 8-5 Removing the WLAN cable (optional, only for the WLAN model)
Step 4 Remove the DC cable.
Figure 8-6 Removing the DC cable
Step 5 Remove the AC cable and the fuse cable.
