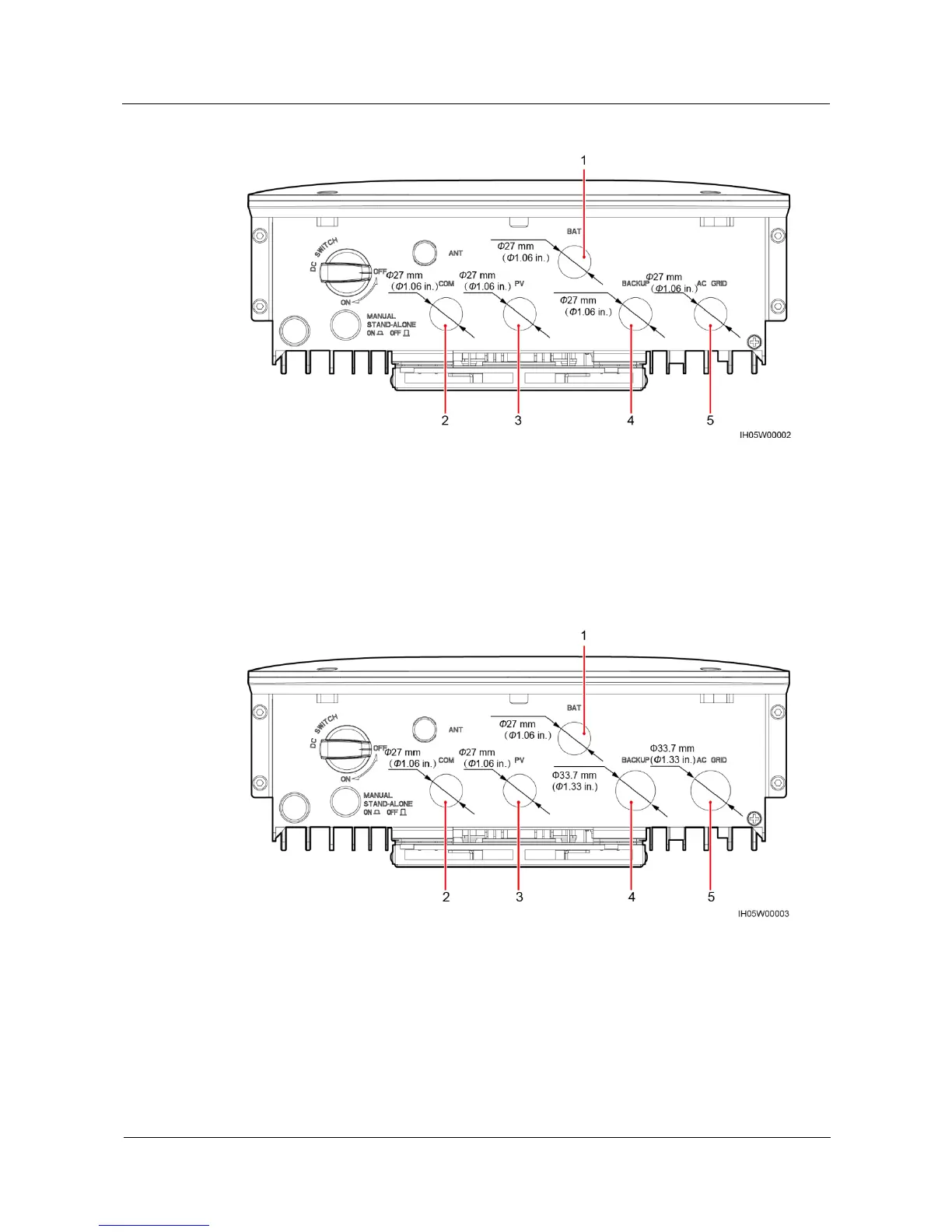

Figure 5-3 Cable hole diameters (SUN2000-3.8KTL/5KTL/7.6KTL-USL0)
(1) Battery cable hole
(BAT)
(2) Signal cable hole (COM)
(3) DC cable hole (PV)
(4) Critical load cable hole
(BACKUP)
(5) Home load cable hole
(AC GRID)
Figure 5-4 Cable hole diameters (SUN2000-9KTL/10KTL/11.4KTL-USL0)
(1) Battery cable hole (BAT)
(2) Signal cable hole (COM)
(3) DC cable hole
(PV)
(4) Critical load cable hole
(BACKUP)
(5) Home load cable hole (AC
GRID)
The following figure shows a pipe for routing cables.
