SUN2000-(3.8KTL-11.4KTL)-USL0

User Manual

5 Electrical Connections

Issue 01 (2018-05-21)

Huawei Proprietary and Confidential

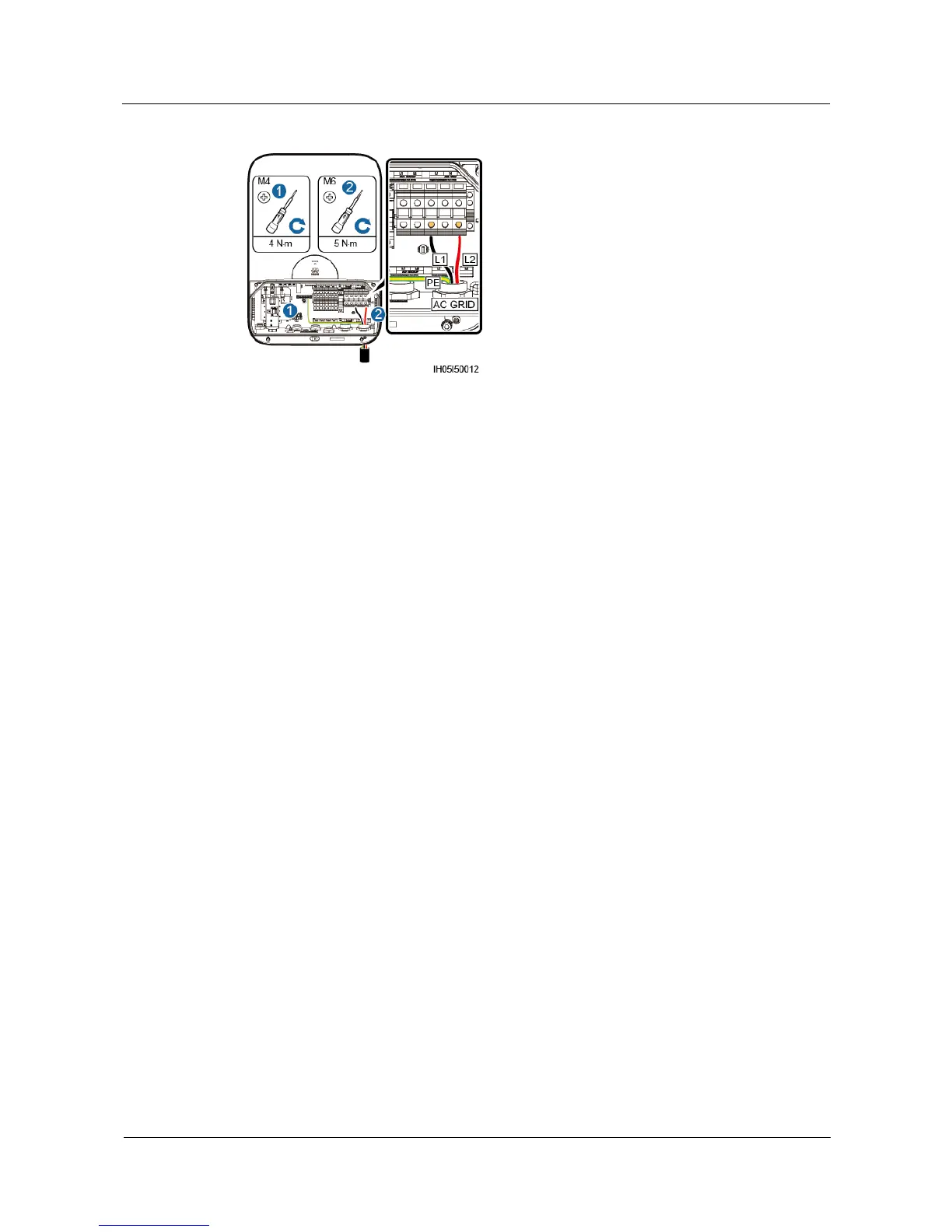

Figure 5-10 SUN2000-9KTL/10KTL/11.4KTL-USL0 (L1/L2)

----End

Connecting the AC Output Power Cable for Critical Load

Step 1 Install the pipe fittings. For details, see 5.2 Installing the Pipe Fittings.

Step 2 Route the AC output power cable through the conduit and then the fitting of the pipe.

Step 3 Connect the AC output power cable to the terminal block.

Step 4 Secure the fitting to the conduit.

Step 5 Check that the cables are connected correctly and securely. Then take appropriate measures to

ensure that the pipe conduit and fitting are secured reliably, and seal the cable holes.

Step 6 Keep the maintenance compartment clean.
