UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

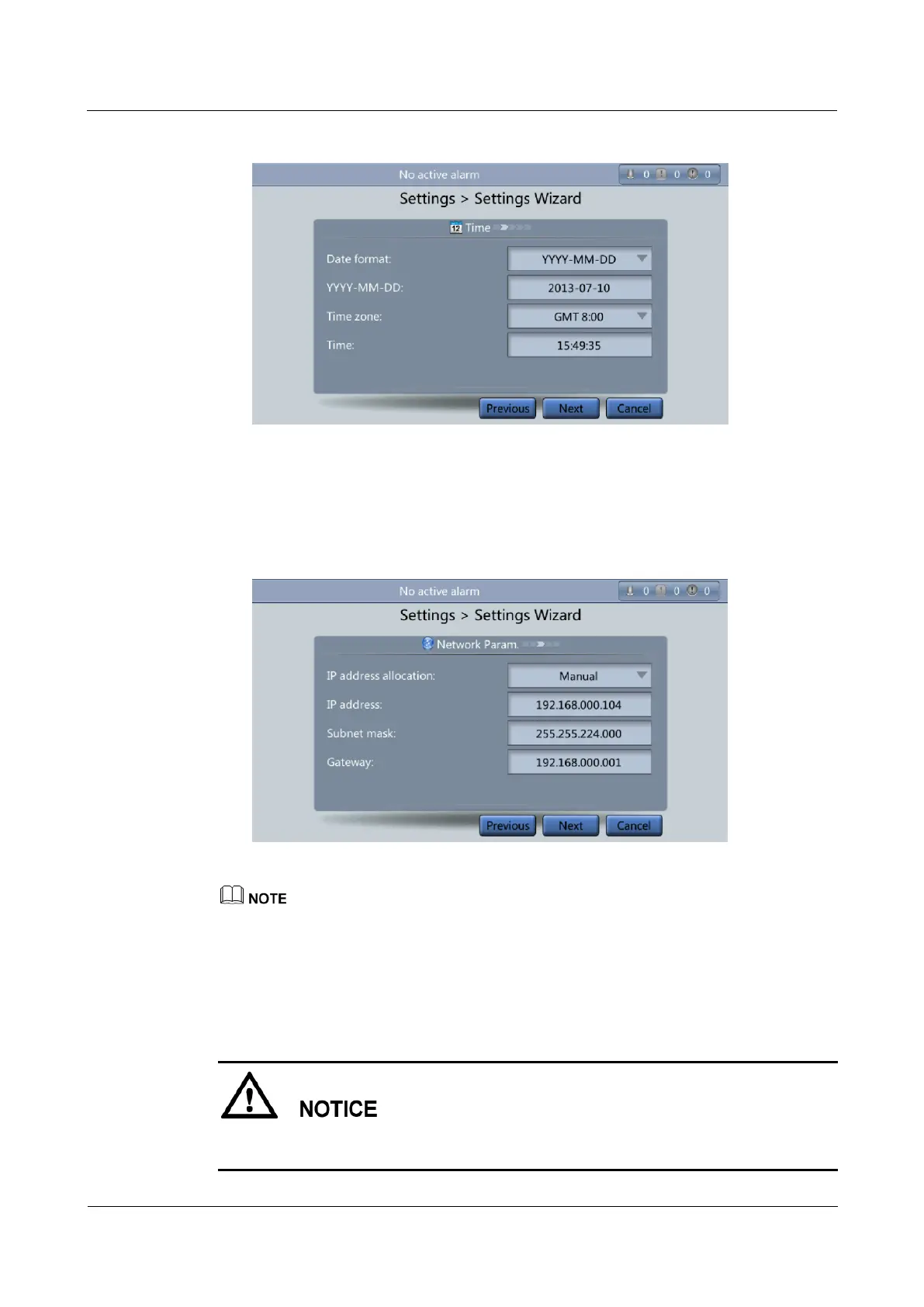

Figure 5-4 Time screen
3. On the Network Param. screen, set IP address allocation, IP address, Subnet mask,
and Gateway, as shown in Figure 5-5. For details, see Communications Settings in
section 4.1.3.4 Settings Screen.
Figure 5-5 Network Param. screen
After setting network parameters, connect the UPS to the network over a network cable, which enables
remote management of the UPS. If remote management is not required, retain the default network
parameter settings.
4. On the System Param. screen, select Single (default value) or Parallel, as shown in
Figure 5-6. Set the Output voltage level, Output frequency, Battery capacity, and
Number of cells, as shown in Figure 5-7.
System parameter settings affect UPS operation. Before setting system parameters, note the
following:
