Huawei WS319 User Manual

12

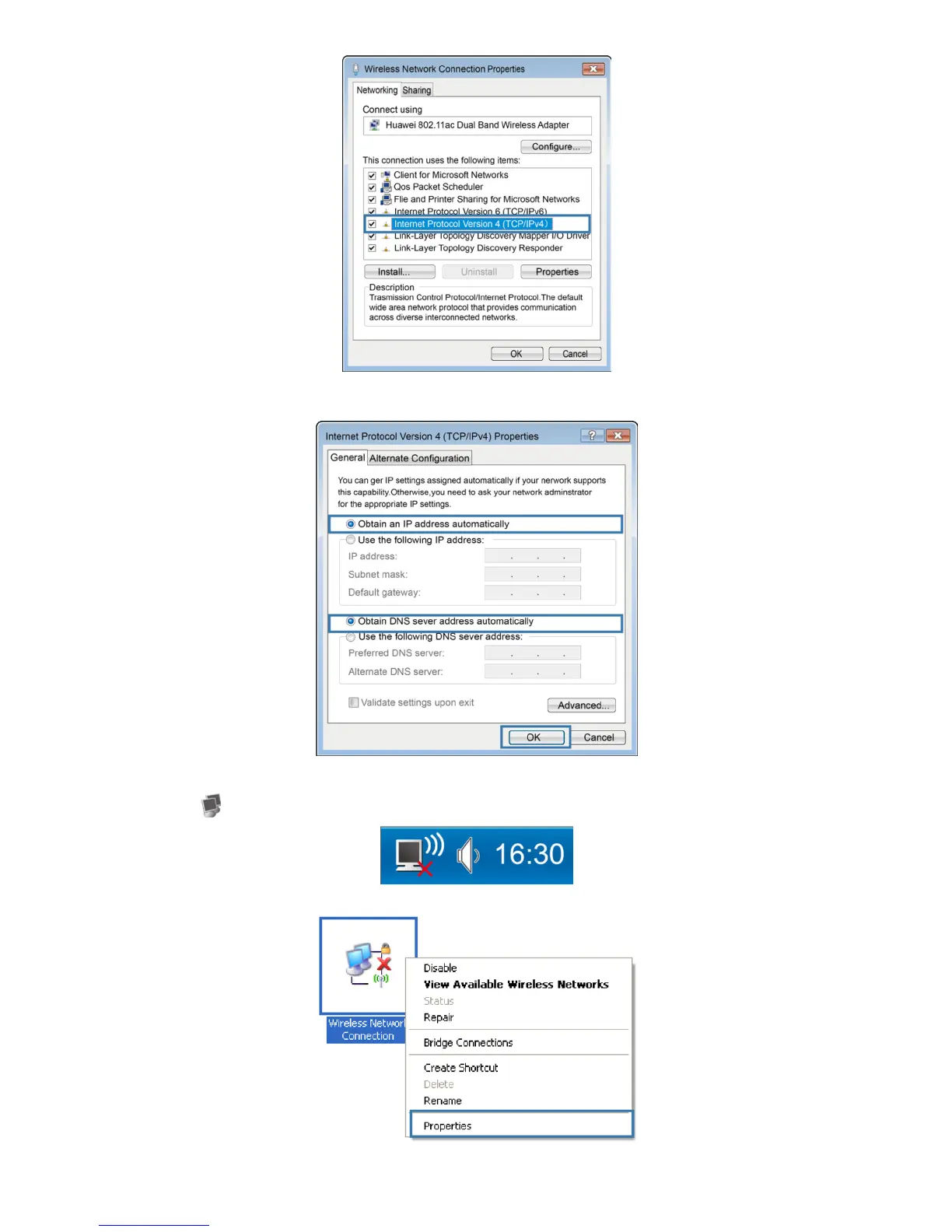

4. Select Obtain an IP address automatically and Obtain DNS server address
automatically. Click OK.
On Windows XP
1. Click in the lower right corner of your desktop.
2. In the displayed dialog box, click Properties.

Huawei WS319 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	-
Ethernet LAN (RJ-45) ports	4
Antennas quantity	2
Antenna gain level (max)	5 dBi
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Product type	Tabletop router
Product color	Black

Weight and Dimensions

Weight	176 g
