Huawei WS319 User Manual

22
4 Wireless Connection Setup
Setting Up a Wireless Connection Using the WPS
Button
Push the WPS button once to quickly set up a wireless connection between the WS319 and any
WPS-capable device.
Before you set up a wireless connection using the WPS button, verify the following:
 The wireless network security mode of the WS319 is WPA2-PSK or WPA-PSK/WPA2–PSK.
 The wireless device (laptop, tablet, or mobile phone) to connect to the WS319 is WPS-
capable.
1. Press the WPS button on the wireless device to start WPS negotiation. For details, see the
user guide for the wireless device.

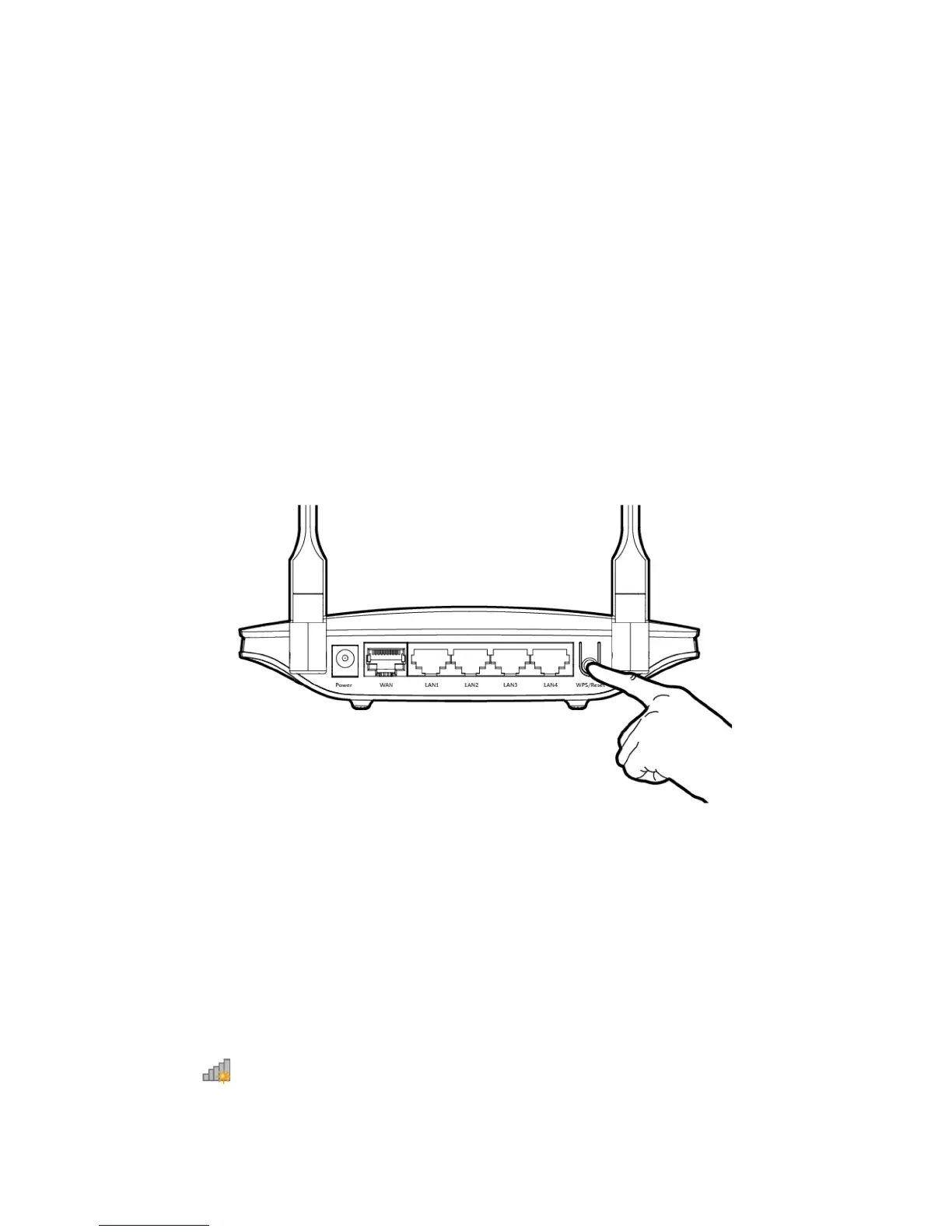

2. Within 2 minutes, press and hold the WPS/Reset button on the WS319 for 1 second or more.
The WPS indicator blinks.
When the WPS indicator on the WS319 is steady on, a connection between the WS319 and
wireless device is set up. The WPS indicator is on for 300 seconds.
Manually Setting Up a Wireless Connection
The wireless configuration software provided by Windows is used as an example to describe
how to set up a wireless connection.
Before setting up a wireless connection, record the WLAN name and password of the WS319.
The default WLAN name and password are printed on the WS319 cover label.
On Windows 7
1. Click in the lower right corner of your desktop.

Huawei WS319 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	-
Ethernet LAN (RJ-45) ports	4
Antennas quantity	2
Antenna gain level (max)	5 dBi
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Product type	Tabletop router
Product color	Black

Weight and Dimensions

Weight	176 g
