Huawei WS319 User Manual

33
6 WLAN Configuration
Expanding WLAN Coverage
To expand WLAN coverage, use the wireless distribution system (WDS) to set up a wireless
connection between two WS319 devices.
For example, if your house is too large to be fully covered by the WLAN provided by one WS319
device, add another WS319 device and set up a wireless connection between these two devices
using the WDS. The WLAN coverage is then expanded.
While setting up the wireless connection between the two WS319 devices, configure the devices
to use the same radio channel, WLAN name, encryption method, and encryption key.

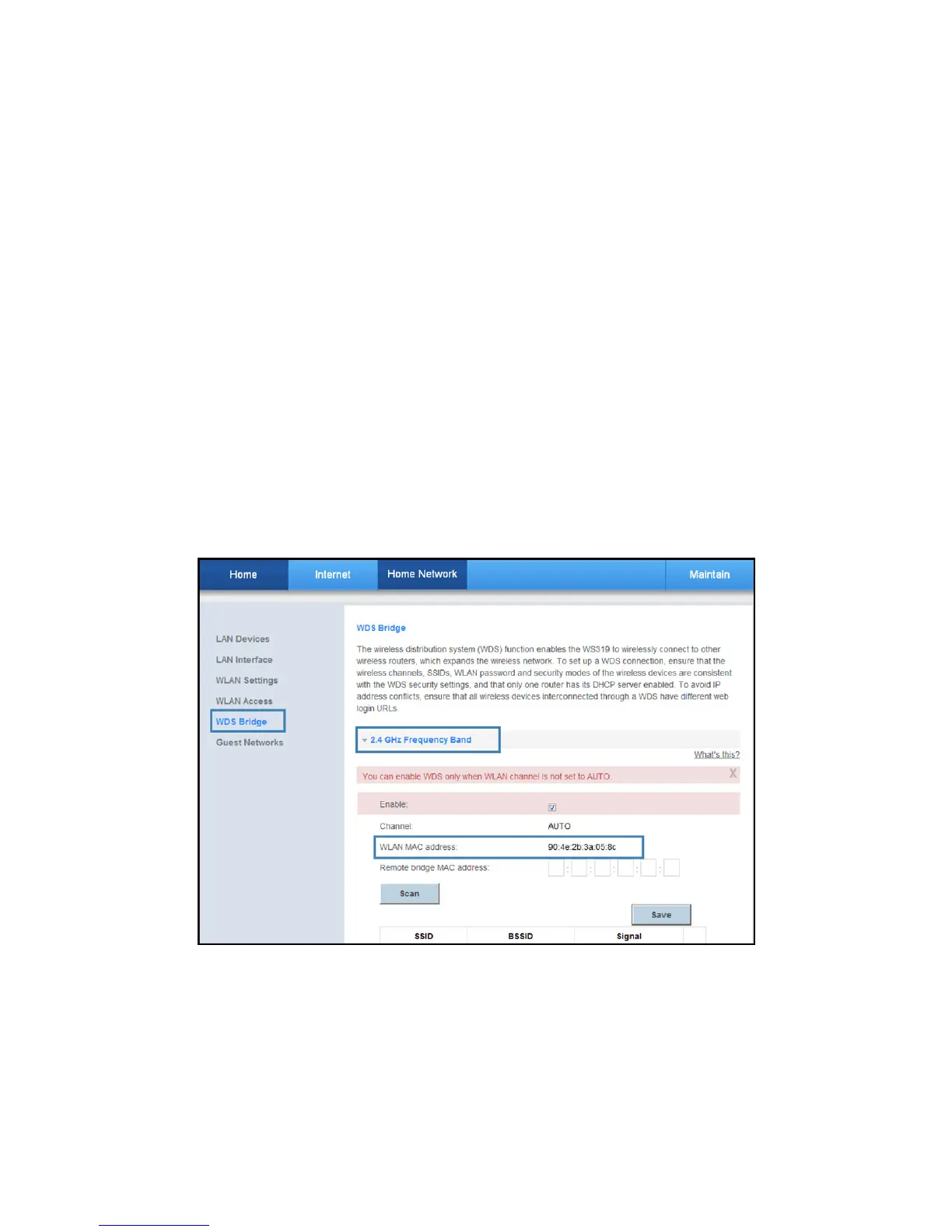

1. Find and record the wireless MAC addresses of the two WS319.
a. Log in to the web management page.
b. Choose Home Network tab.
c. In the navigation tree, choose WDS Bridge.
d. Select 2.4GHz frequency band configuration page.
e. Under WLAN MAC Address, find a character string that is similar to EC:23:3D:E0:5E:B4.
This value is the wireless MAC address of the WS319.
2. Set the WLAN parameters of the two WS319.
a. Log in to the web management page.
b. Choose Home Network tab.
c. In the navigation tree, choose WLAN Settings.
d. Select WLAN Encryption configuration page. Set the same value for the SSID, WPA
encryption mode and WPA pre-shared key about the two WS319.

Huawei WS319 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	-
Ethernet LAN (RJ-45) ports	4
Antennas quantity	2
Antenna gain level (max)	5 dBi
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Product type	Tabletop router
Product color	Black

Weight and Dimensions

Weight	176 g
