Huawei WS319 User Manual

41

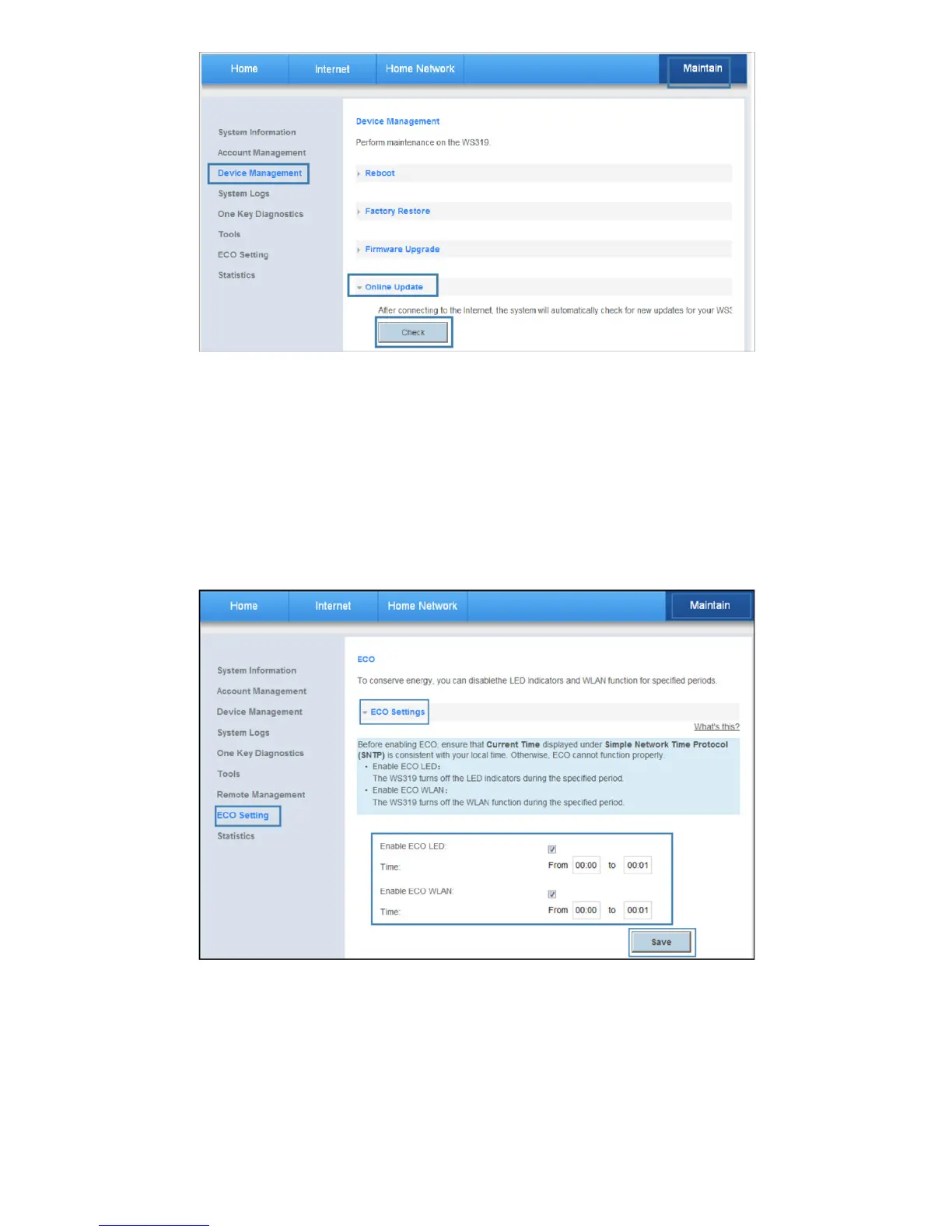

Power Saving Settings
To save power, you can set effective time for your WS319's LED indicators and Wi-Fi function.
1. Log in to the web management page.
2. Click Maintain > ECO Setting > ECO Setting.
3. Select the Enable ECO LED and Enable ECO WLAN check boxes.
4. Set Time
5. Click Save.

Huawei WS319 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	-
Ethernet LAN (RJ-45) ports	4
Antennas quantity	2
Antenna gain level (max)	5 dBi
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Product type	Tabletop router
Product color	Black

Weight and Dimensions

Weight	176 g
