Huawei WS319 User Manual

16

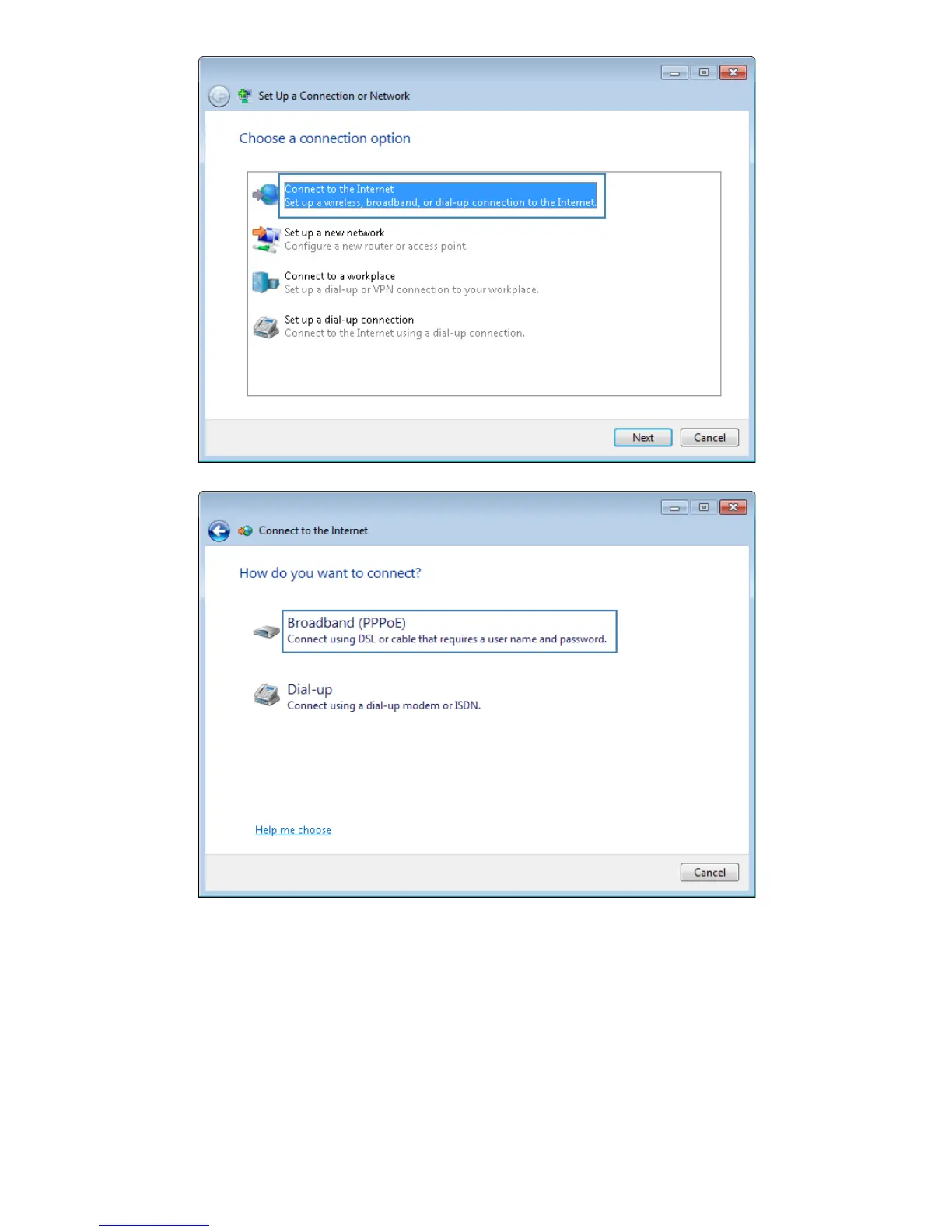

4. Click Broadband (PPPoE).
5. In User name and Password, enter the dial-up connection account name and password
provided by your ISP. In Connection name, name the dial-up connection. Select or deselect
Allow other people to use this connection. Then click Connect.

Huawei WS319 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	-
Ethernet LAN (RJ-45) ports	4
Antennas quantity	2
Antenna gain level (max)	5 dBi
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Product type	Tabletop router
Product color	Black

Weight and Dimensions

Weight	176 g
