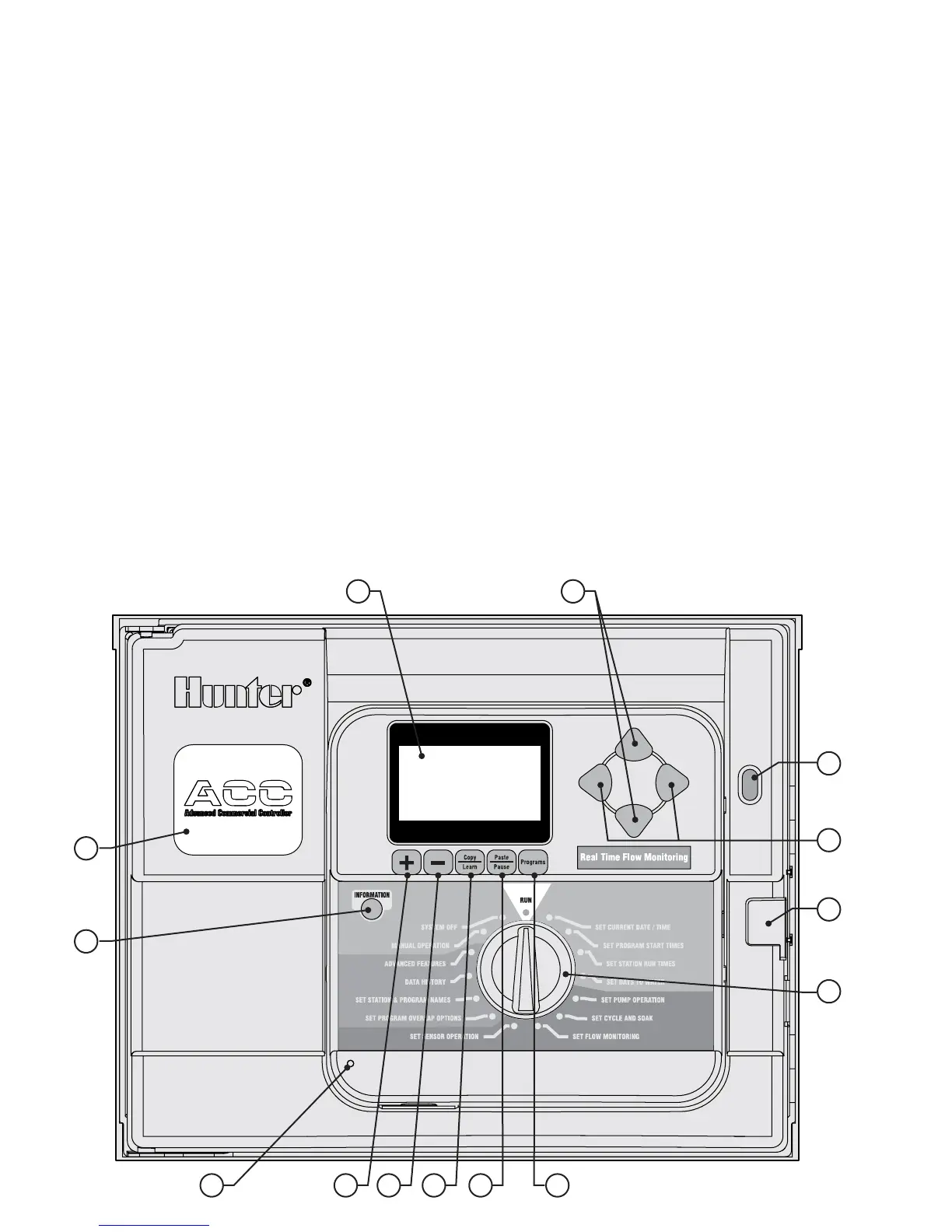

2
1. LCD Display – Backlit, adjustable contrast display
(re-lights when any button is pressed)
2. + Button – Increases flashing value, depending on
function
3. – Button – Decreases flashing value. Most items in
ACC screens “wrap” so that you can continue in either
direction through all the choices
4. Copy/Learn Button – Copies a time or value in a
flashing field, for pasting into similar fields. Also used
to learn typical flow (when a flow sensor has been
installed)
5. Paste/Pause Button – Pastes a copied time or value
into a new field. Also used as Pause/Resume feature
during watering, shuts off devices for 30 minutes or
until resumed
6. Programs Button – Selects one of the automatic
Programs (A-F), starts Test program, allows Reset
(with Reset button)
7. Up and Down Arrow Buttons – Used to move up and
down through adjustable functions in various screens,
and to select higher or lower numbered items
8. Left and Right Buttons – Used to move left and right in
some screens
9. Information Button – Lights display, and provides
instant help and other information, depending on dial
position. Also used to access Extended Features, when
held down while turning to specific dial positions
10. Programming Dial – Used to access all functions of
ACC. The most basic automatic watering can be set up
in the first 4 dial positions
11. Reset Button – Recessed switch erases some or
all memory when combined with pressing specific
buttons
12. Facepack Release Button – Hold down while removing
facepack from inner door panel
13. Door Grip – Convenient finger grip for opening inner
door
14. Logo Badge – Removable for installation of optional
communications modules
aCC InTerfaCe and Key ComponenTs .......................................
1
2 3 4 5 6
7
8
12
13
10
11
9
14
