CURRENT TIME/DAY
7711 22 33 44 55 66
PROGRAMMING THE CONTROLLER
The EC display shows time and day when the controller is idle. The
display changes when the dial is rotated to indicate the specific
programming information to enter. When programming, the flashing
portion of the display can be changed by pressing the or
buttons. To change something that is not flashing, press the button
until the desired field is flashing.
Three programs A, B and C each with the ability to have four daily
start times, permit plants with different watering requirements to be
separated on different day schedules.
NOTE: A basic programming rule is that whatever symbol
or character is flashing will be the item programmed.
For instance, if the hour is flashing when setting the
time, the hour can be changed or programmed. For illus-
tration purposes, flashing characters are in GRAY type.

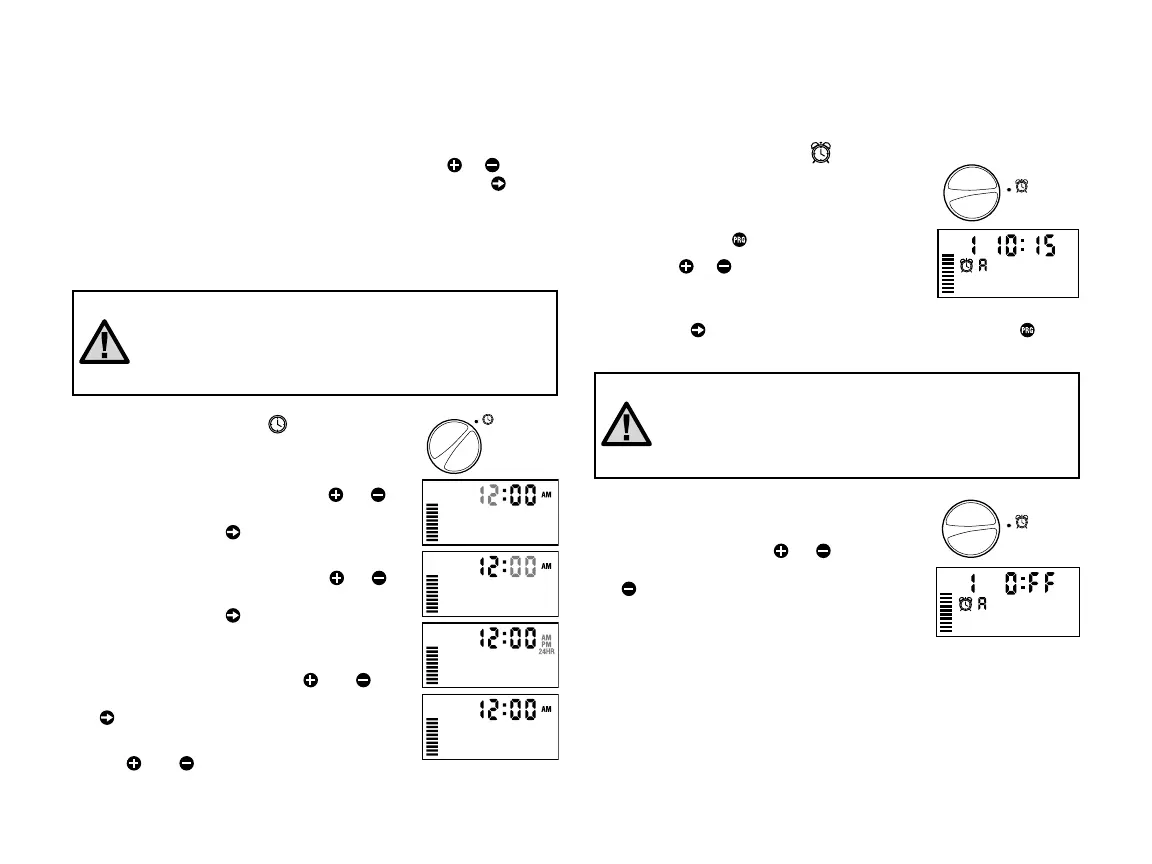

Setting the Date and Time
1. Turn the dial to the CURRENT TIME/DAY
position.
2. Hours will be flashing. Press the
or
button to change the hour shown on the
display. Press the to proceed to setting
the minutes.
3. Minutes will be flashing. Use the
or
button to change the minutes shown on the
display. Press the to proceed to select
AM, PM, or 24 hour time.
4. The time will be displayed, and an arrow will
be flashing on AM. Press the
and but-
tons to select AM, PM, or 24 hour. Press the
to proceed to setting the day of the week.
5. The number for day 1 will be flashing. Press
the
and to select the day of the week
corresponding to the day.
The time and day have now been set. You can turn the dial to
AUTOMATIC to display the current time.
Setting Watering Start Times
1. Turn the dial to the START TIMES position.
2. The factory preset is set on program A. If
necessary, you can select program B or C
by pressing the
button.
3. Use the
or button to change the start
time. (The start times advance in
15 minute increments).
4. Press the
button to select the next start time, or press for
the next program.
NOTE: One start time will activate all stations sequen-
tially in that program. This eliminates the need to
enter each station’s start time. Multiple start times in a
program can be used for separate morning, afternoon, or
evening watering cycles.
Eliminating a Program Start Time
With the dial set to the SET WATERING START
TIMES position, push the or button until
you reach 12:00 am (Midnight). From here push
the button once to reach the OFF position.
