Hunter ROAM XL User Manual

8
INSTALLING THE ROAM XL REMOTE WIRING HARNESS
4. Route wiring harness into controller housing.
Attach the red wire to the rst AC screw slot.
Attach the white wire to the other AC screw slot,
and attach the blue wire to the R (or REM on
some controllers) as shown in Figure 2.
1
/2" Thread
To Controller
Pre-assembled Assembled

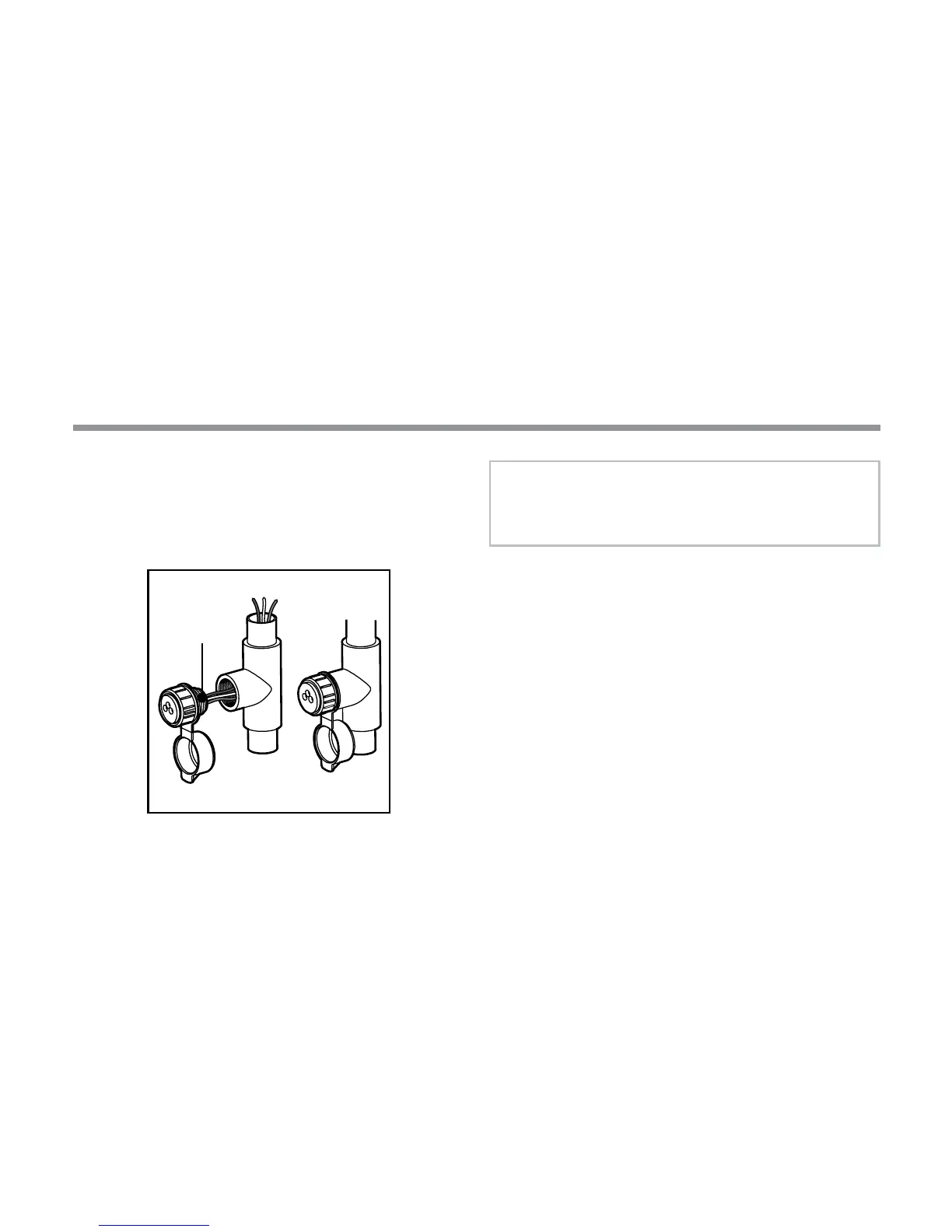

Figure 1.
a
a NOTE: Turn controller power off rst,
before wiring the harness.
