WIRING THE SMARTPORT
®
TO HUNTER CONTROLLERS

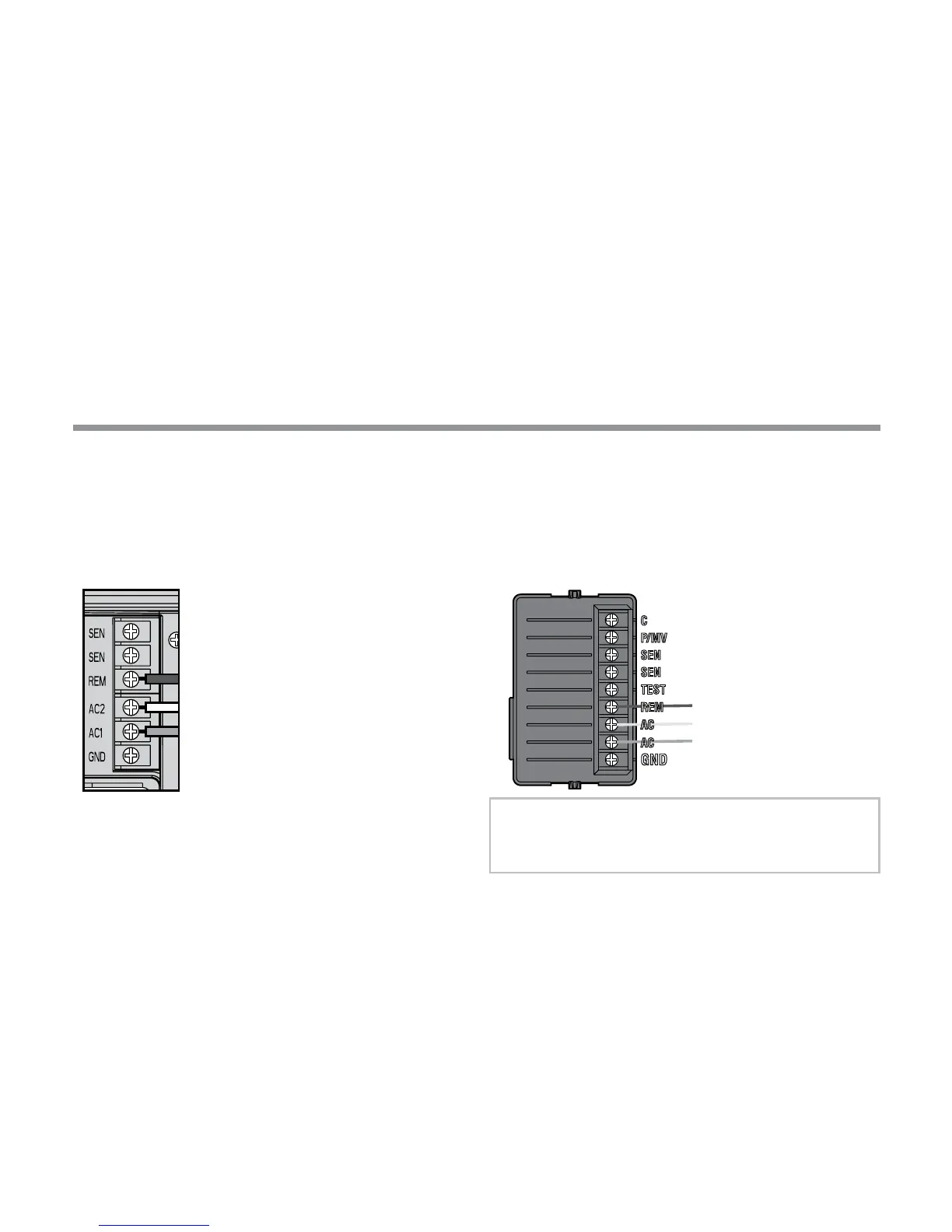

Pro-C Controller SmartPort Installation
Access the terminal strip area on the main module and
attach the red wire to the bottommost AC screw slot,
attach the white wire to the upper AC screw slot and
attach the blue wire to the screw slot marked “REM”.
Red
Blue
White
ICC Controller SmartPort Installation
Access the terminal strip area on the power module and
attach the red wire to the bottommost AC screw slot,
attach the white wire to the upper AC screw slot and
attach the blue wire to the screw slot marked “REM”.
Blue
White
Red
a
a NOTE: Hunter ACC and I-Core
controllers are provided with the
SmartPort
®
factory installed.
