Hunter ROAM XL User Manual

13
EXTENDING WIRING ON SMARTPORT
®
HARNESS
Use a special shielded cable to connect the
SmartPort
®
to the controller if installing the connector
more than 2m (6 ft.) of wire from the controller.
The use of shielded cable will reduce the potential
for radio and electrical interference. The SmartPort
should never be installed more than 15 m (50 ft.)
metres away from the controller.
For easiest installation, order a Hunter SRR-SCWH
SmartPort
®
wiring harness with a full 7.6 m (25 ft.) of
shielded cable.

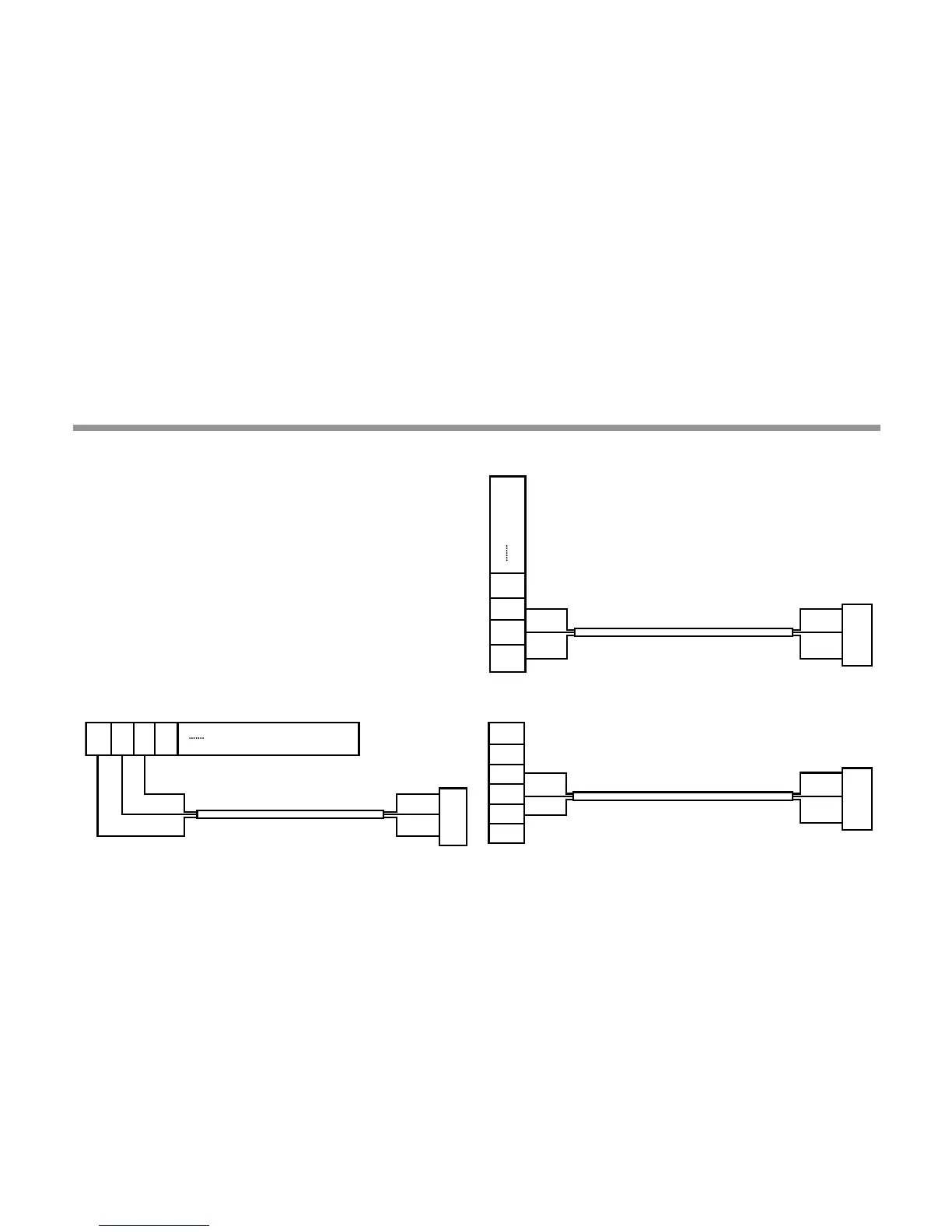

HUNTER SRR-SCWH
WIRING HARNESS
SRC TERMINAL BLOCK
BLUE
WHITE
RED
BLUE
WHITE
RED
AC AC RRS
HUNTER SRR-SCWH WIRING HARNESS
BLUE
WHITE
RED
ICC TERMINAL BLOCK
BLUE
WHITE
RED
AC
AC
R
RS
HUNTER SRR-SCWH WIRING HARNESS
BLUE
WHITE
RED
PRO-C TERMINAL BLOCK
BLUE
WHITE
RED
SEN
SEN
REM
AC2
AC1
GRD
