Hunter Soil-Clik - Hcc

14
24V
24V
SENSOR 1
SENSOR 2
COMMON
SEN C
SEN 2
SEN 1
REM
24VAC
24VAC
GND

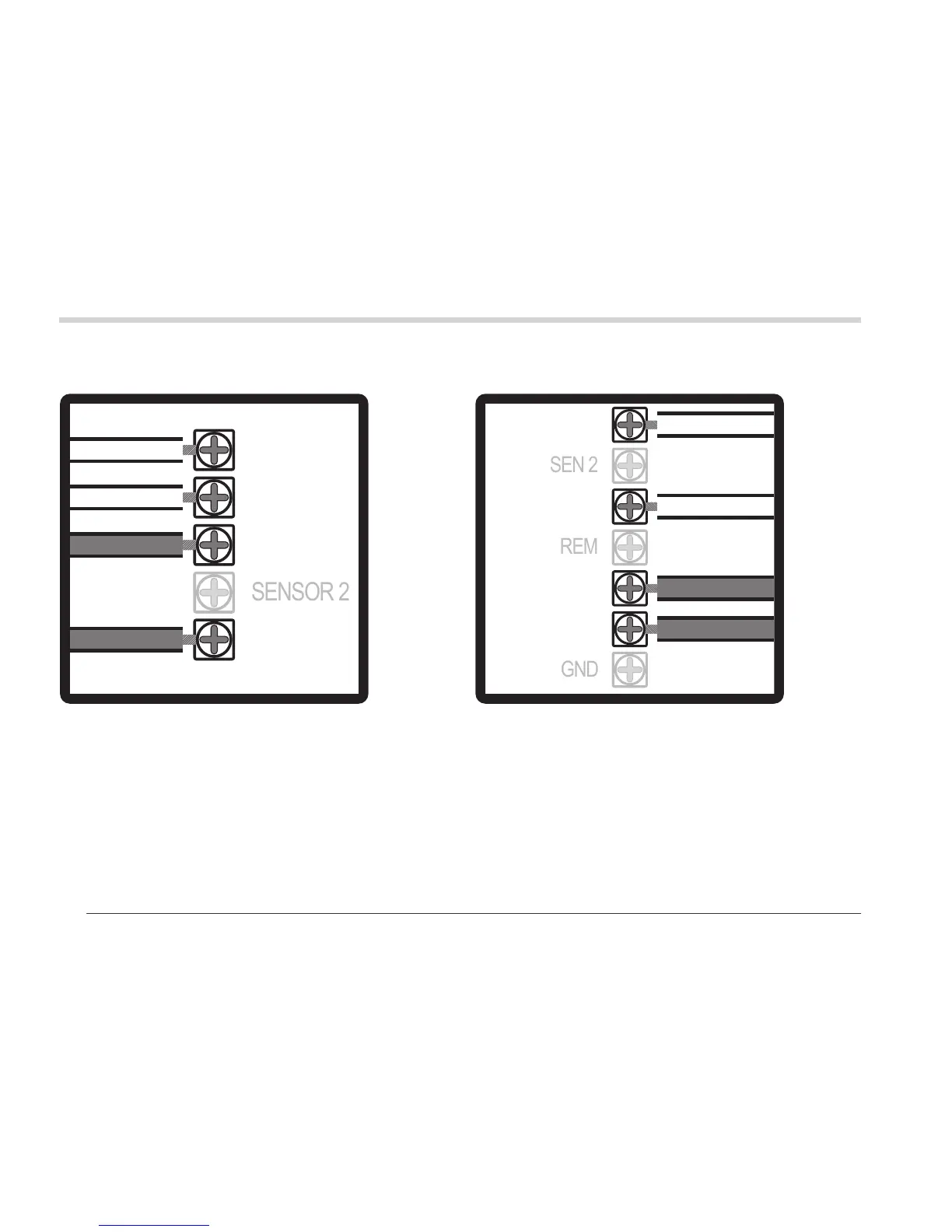

Connecting the Module to Hunter Products
1. Yellow power wires to the HC 24V power
terminals
2. White wires to the SENSOR and sensor
COMMON terminals
3. Or use the Common Interrupt method on
page 18
1. Yellow power wires to the HCC 24VAC
power terminals
2. White wires to the SENSOR and sensor
COMMON terminals
3. Or use the Common Interrupt method on
page 18
HC HCC
