Operation Instructions for TCX56/57 Tire Charger
23
A. Standard version (TCX56)

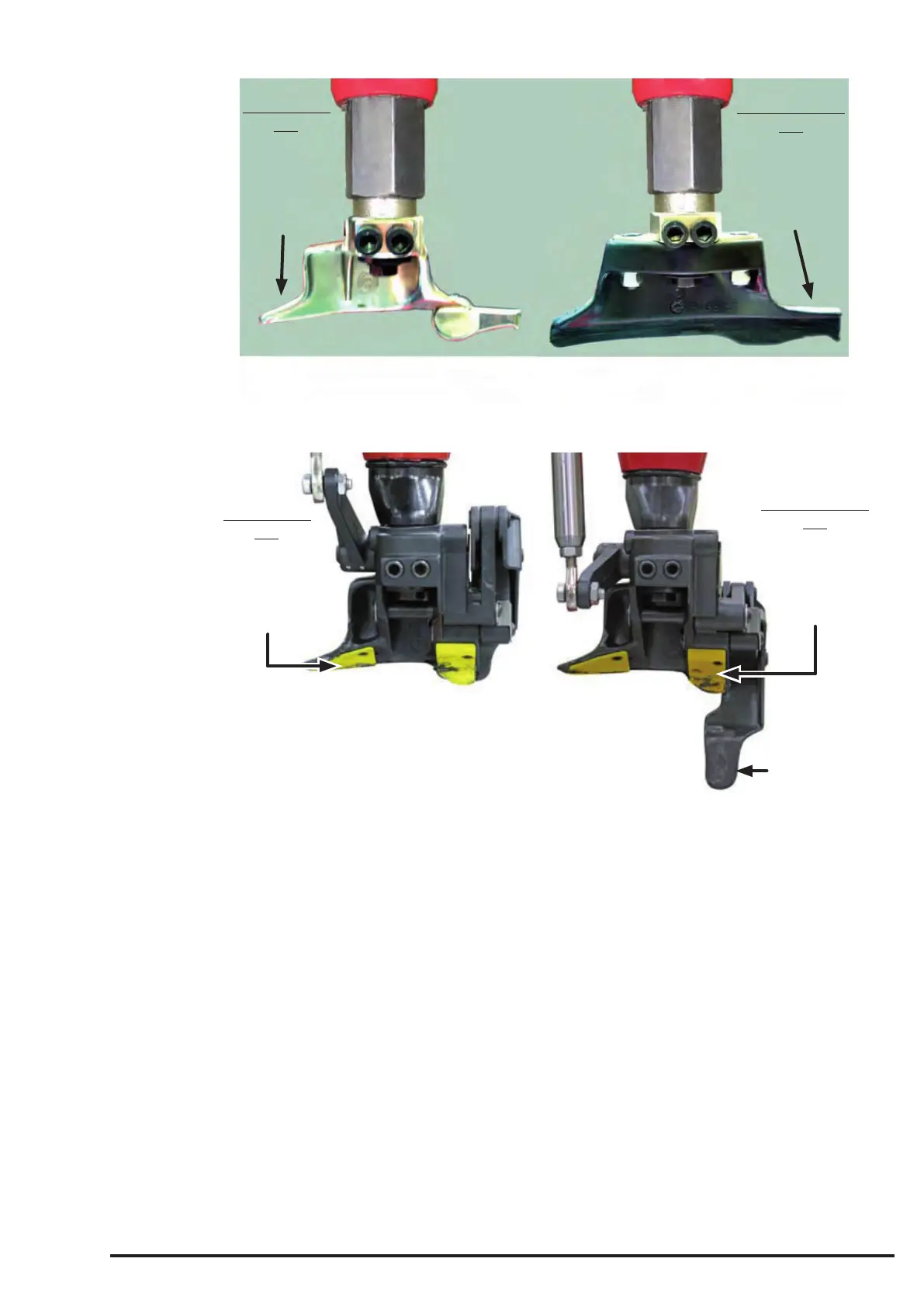

MOUNTING
LIP
The
mounting lip
is on the left
side of the
head.
STEEL MOUNT
HEAD
PLASTIC
MOUNT HEAD
DEMOUNTING
LIP
The
demounting
lip is on the
right side of the
head.
B. Leverless version (TCX57)
AUTOMATIC LEVER
RETRACTED
AUTOMATIC LEVER
EXTENDED
MOUNTING
LIP
The
mounting lip
is on the left
side of the
head.
DEMOUNTING
LIP
The
demounting
lip is on the
right side of the
head.
AUTOMATIC
LEVER
In addition, the head also incorporates an automatic lever to ease the demounting
process.
The bead of tire is placed on top of mounting lip during mounting.
The bead of tire is placed on top of demounting lip during demounting.
