Operation Instructions for TCX56/57 Tire Charger
56
3.5 Mount/Demount Head Assembly
Mount/Demount Head Calibration
The mount/demount head is pre-calibrated from the factory, however, double
checking the calibration is recommended. Calibration requires the use of an
(approximately) 18 inch bare rim.
1. Clamp rim without a tire on the tire changer turntable.

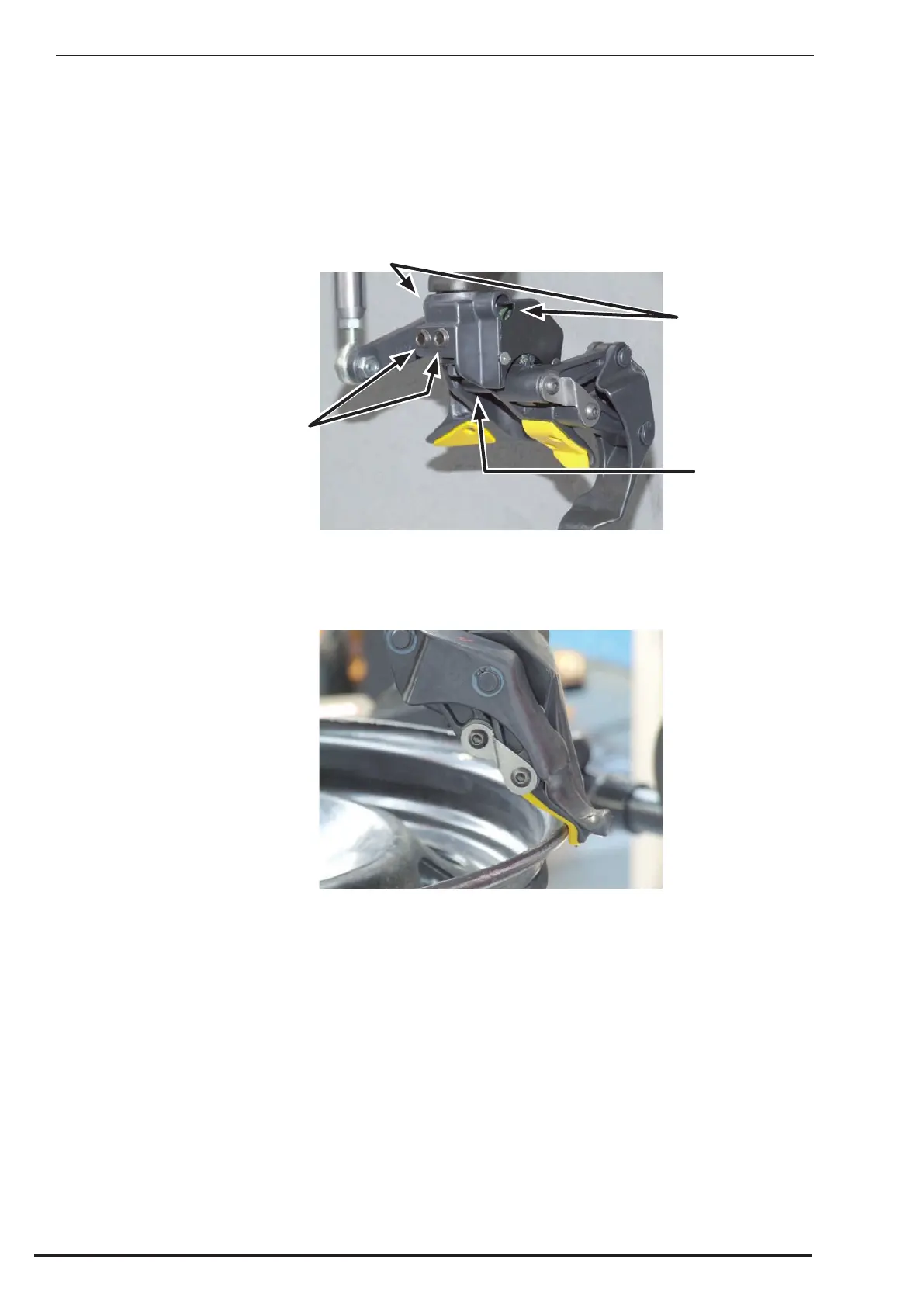

2. Before making any adjustments, loosen the four adjustment screws and tighten the
head retaining bolt until some grip is obtained.
HEAD
RETAINING
BOLT
ADJUSTMENT
SCREW
ADJUSTMENT
SCREW
3. Position the tool head manually against the edge of the rim so that both sides of the
tool head are resting on it. Keep the tool head in position without engaging the head
position lock.
Horizontal Adjustment of the Tool Head
1. Lower the automatic lever of the tool head to access the adjustment screws on the
side.
