Operation Instructions for TCX56/57 Tire Charger
54

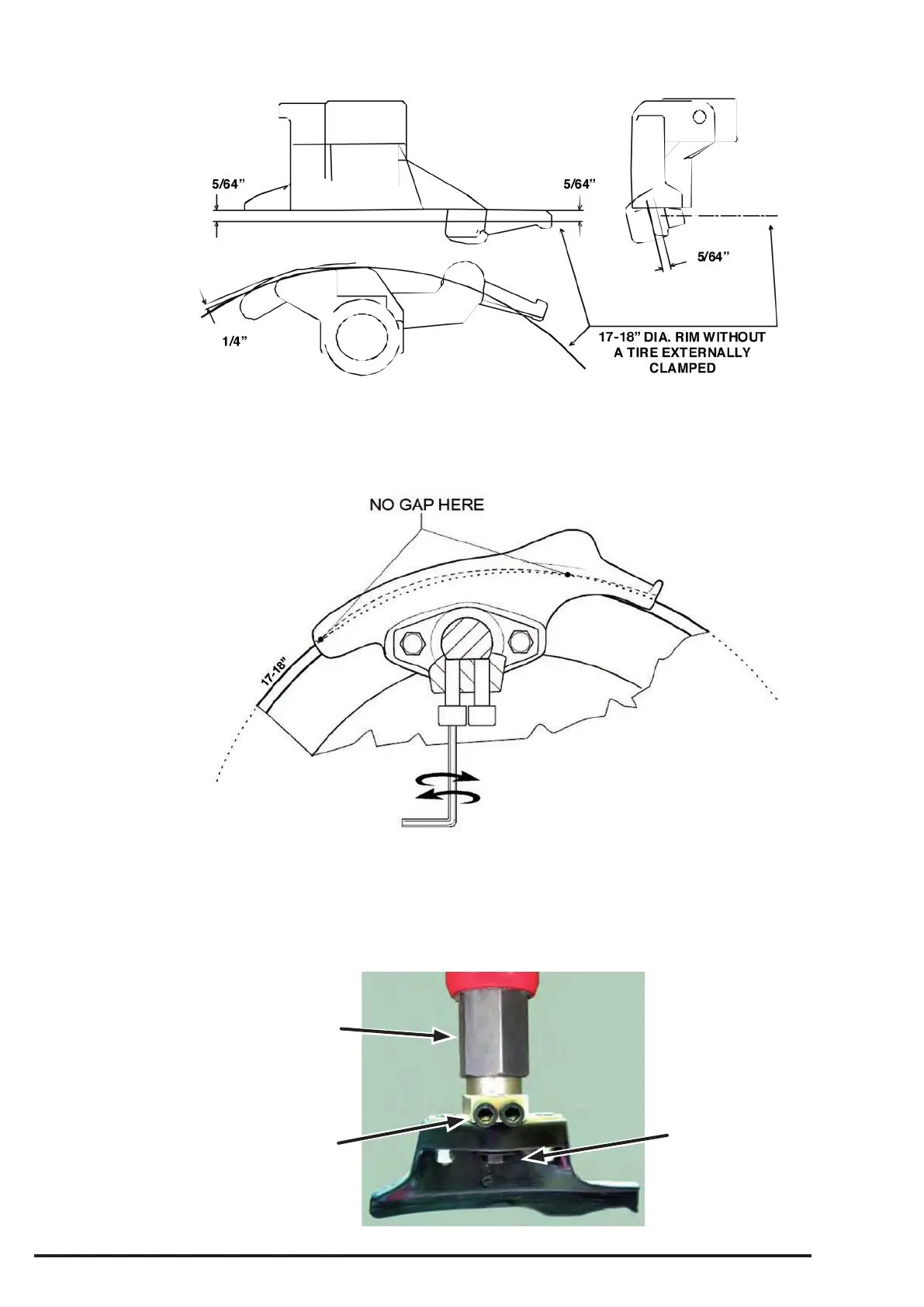

Figure below is a summary of the desired end result.
For Plastic Heads
Calibration will require the use of a 17-18” inch bare rim. Figure below is a summary of the
desired end result.
Set Position of Plastic Mount/Demount Head on Hex Shaft
1- Clamp a 17-18” rim without a tire on the tire changer turntable.
2- Loosen the head retaining bolt slightly so that the head is still attached.
HEX SHAFT
PIN
ADJUSTMENT
BOLTS
HEAD
RETAINING
BOLT
