Operation Instructions for TCX56/57 Tire Charger
53

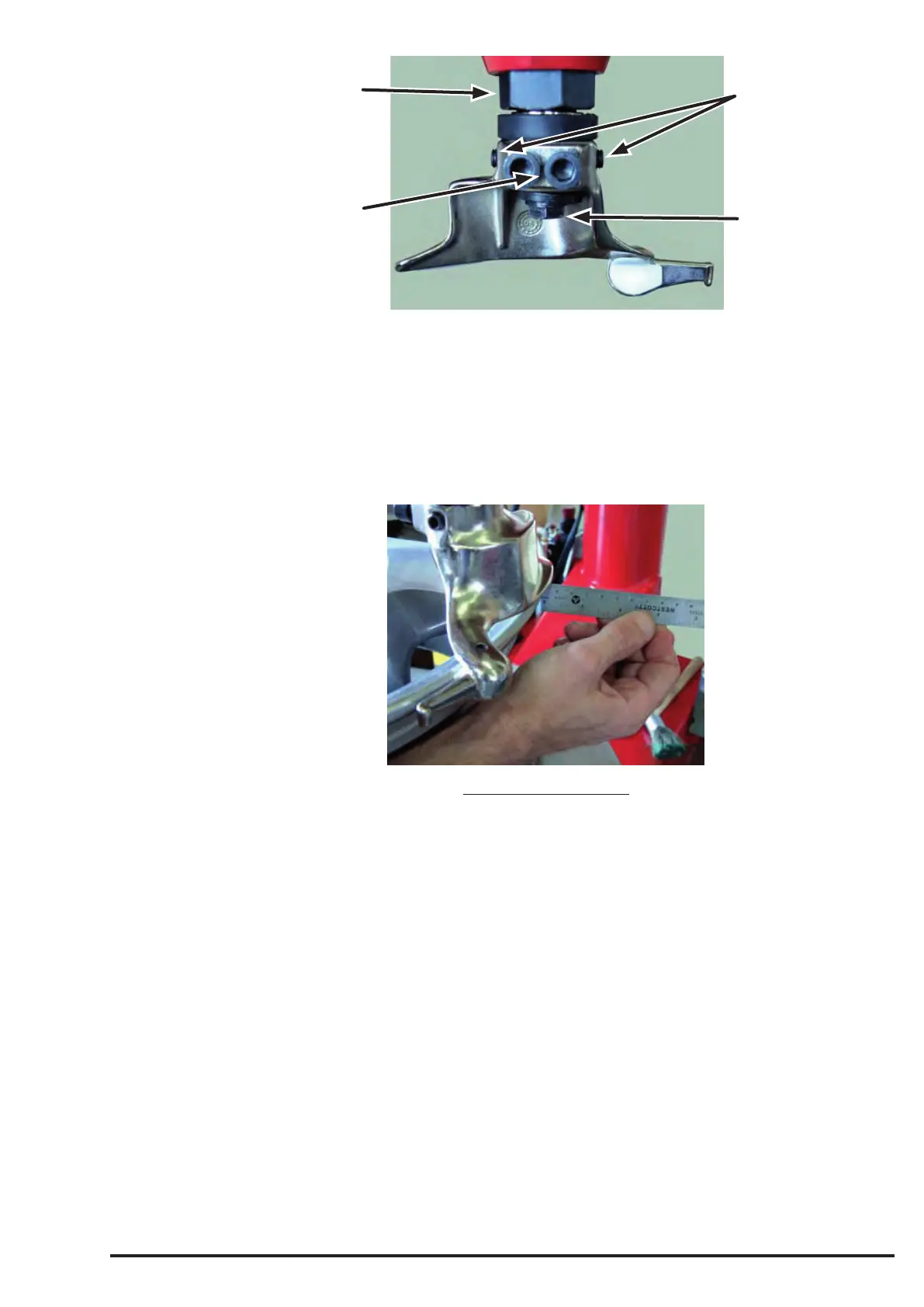

HEX SHAFT
PIN
SET SCREWS
ADJUSTMENT
BOLTS
HEAD
RETAINING
BOLT
4- Position the tool head manually against the edge of the rim so that both sides of the tool
head are resting on it.
5- Tighten the set screws in alternation to maintain 5/64 in. horizontal gap at leading and
trailing edge of the mount head. Double check distance with feeler gauge. See above
gure.
6- Keep the roller in contact with the edge of the rim, alternately loosen and tighten the two
adjustment bolts until the gap is 1/4-inch.
BACK EDGE OF HEAD
OVER-HANG
Measure with depth gauge
¼-inch specification
7- Fully tighten the set screws, checking when done that sides of the tool head are still the
same distance from the edge of the rim.
8- When the correct position has been achieved, tighten the adjustment bolts alternately to
lock it in position.
9- Tighten the head retaining bolt.
