INSTALLATION
17

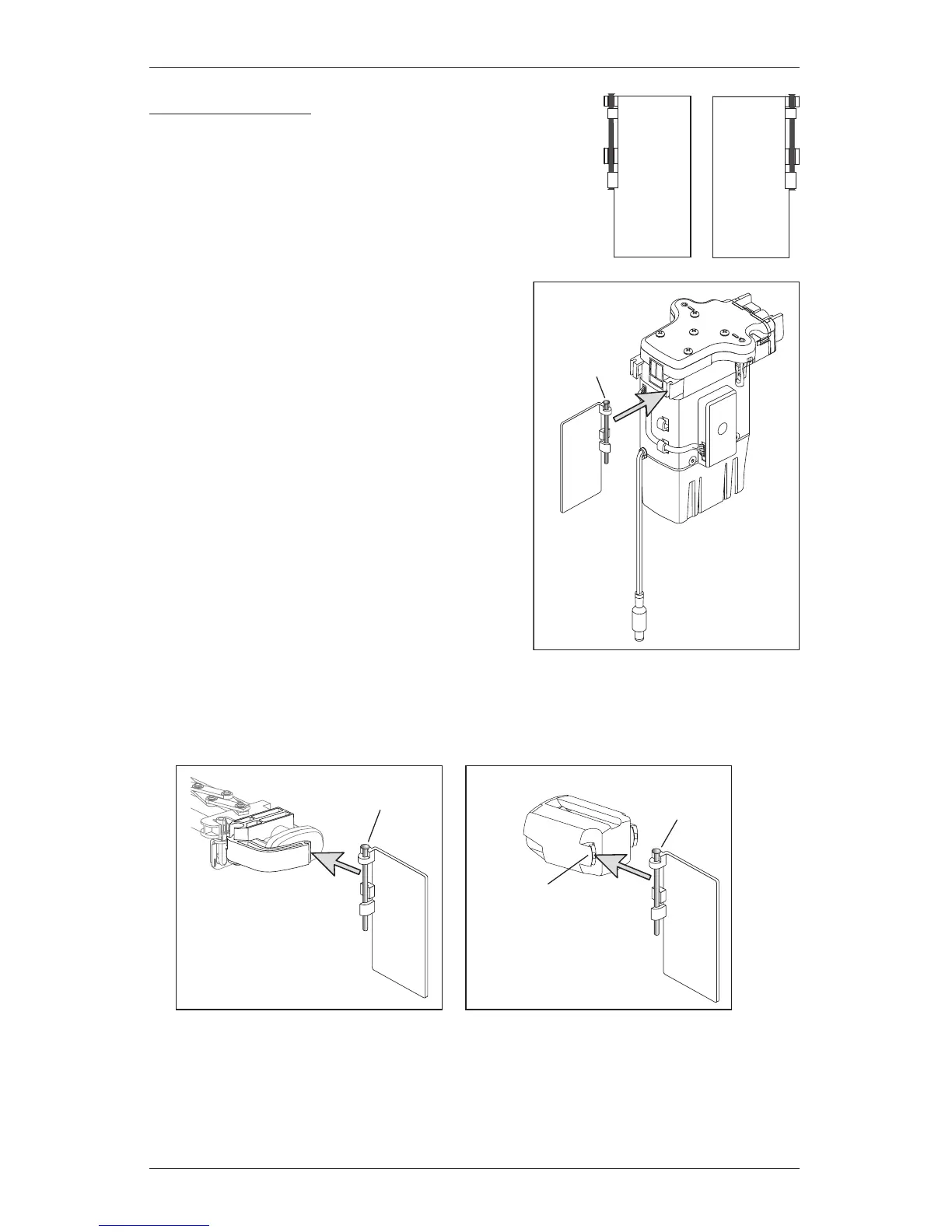

Attach Swivel Plates
■ The end treatments on both ends of the sheer attached with
swivel plates.
➤ Swivel plates are right- and left-specific, marked by
an R or an L. The swivel plates are packaged with the
product’s hardware.
■ Snap the rivet on the swivel plate into the
front clip on the control end cap. Swivel plates
attached on the left will have STD L stamped on
the top. Swivel plates attached on the right will
have STD R on the top.
■ Snap the rivet on the other swivel plate onto the swivel arm (side stack) or into the front clip
on the non-control end cap (split stack). Swivel plates attached on the right will have STD R
stamped on the top. Swivel plates attached on the left will have STD L on the top.
STD R STD L
Swivel Plate
Side Stack
Swivel Arm
Rivet
Swivel Plate
Split Stack
Rivet
Front Clip
Non-Control
End Cap
STD
R
STD
R
Rivet
STD L
