SERVICING THE INDIVIDUAL PARTS
D
16

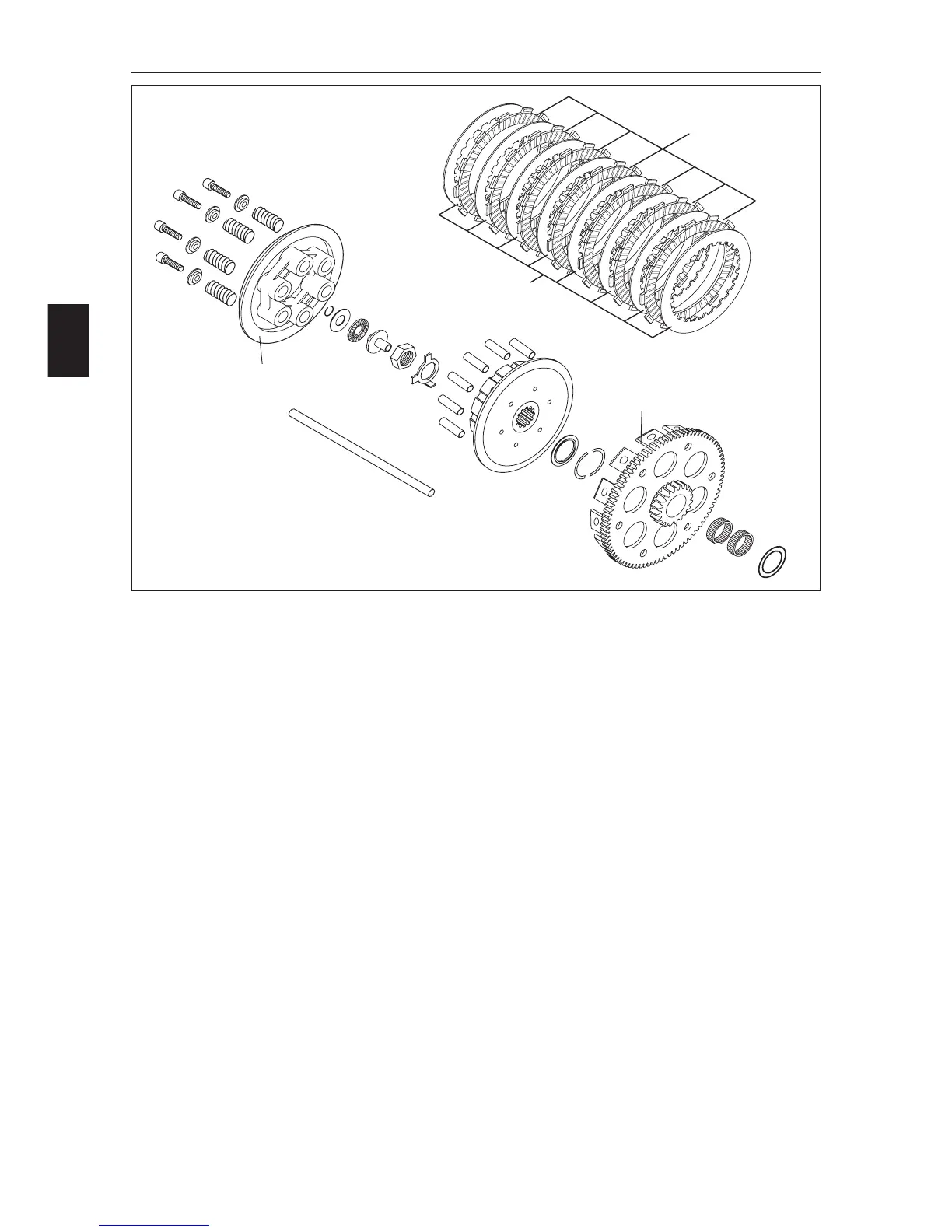

CHECKING THE CLUTCH FOR WEAR
Pressure piece (1)
Check for seizing marks and smooth operation.
Axial needle bearing (2)
Check for damage.
Push rod (3)
Place on a flat surface and check for eccentricity.
Clutch springs (4)
Minimum length 41.5 mm (new 43 mm), replace all 6 springs if necessary.
7 lining disks (5)
Minimum thickness 1.9 mm (new 2.0 mm). The lining disks must be flat.
8 clutch disks 1.0 mm (6)
The clutch disks must be flat. Check for mechanical damage. Replace the clutch disks if localized points are
broken off.
Inner clutch hub (7)
Check for seizing marks or damage.
Pressure cap (8)
Check the seating surface (A) of the steel disk for damage.
Outer clutch hub (9)
Check the thrust faces (B) of the lining disks and the outer clutch hub for wear. Replace the lining disks and the
outer clutch hub if the depressions are deeper than 0.5 mm.
Needle bearing (10)
Check for seizing marks or damage.
1
5
6
7
9
10
8
A
2
3
4
B
