FUEL SYSTEM
G
11

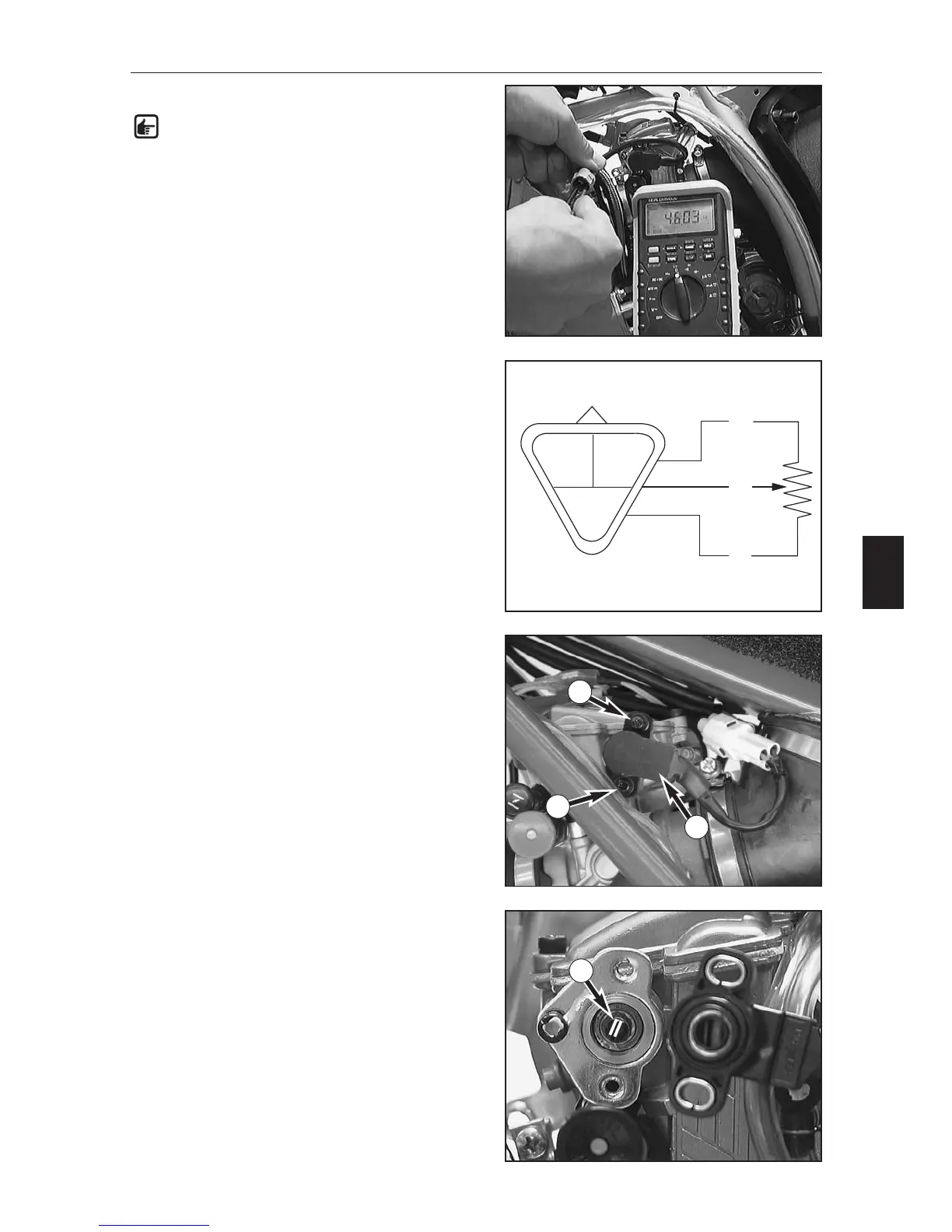

CHECKING THE THROTTLE SENSOR
NOTE: The following measurement must be
performed at a component temperature of
approx. 20°C.
–Disconnect the plug connection on the throttle sensor.
– Connect a multimeter (measuring range . x 1k) to the
blue (+) and the black (–) cable on the throttle sensor.
Throttle sensor resistance: 4 - 6 kΩ
– Now connect the multimeter to the yellow (+) and the
black (–) cables on the throttle sensor.
– The resistance should change evenly when the throttle
grip is slowly opened.
Throttle sensor resistance: 0 - 5 kΩ ±1 kΩ
(when the throttle grip is opened)
DISMOUNTING AND MOUNTING THE
THROTTLE SENSOR
–Disconnect the plug connection on the throttle sensor
lösen and remove the screws (1).
– Remove the throttle sensor (2) from the carburetor.
– When you mount the throttle sensor, make sure that
the flat area on the driver (3) engages in the groove in
the throttle sensor.
– Degrease the thread on the 2 screws and apply
Loctite 243.
– Mount the 2 screws but do tighten yet and adjust the
position of the throttle sensor.
bu
bu
ye
ye
bl
bl
bu = blue
ye = yellow
bl = black
1
1
2
3
