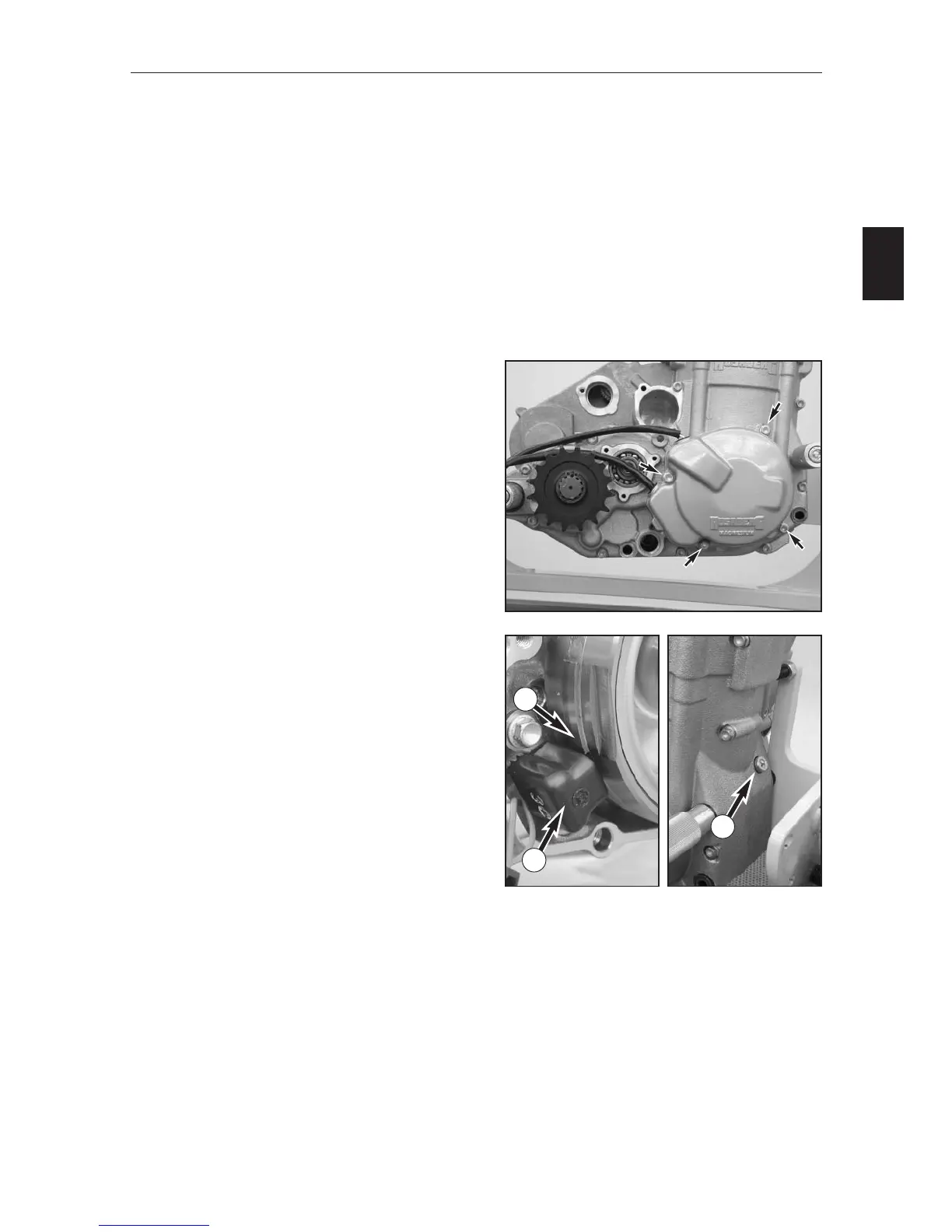

DISASSEMBLING THE ENGINE
C
1
– Thoroughly clean the outside of the engine and clamp
on a universal engine work stand.
– Drain the engine oil, remove the oil filter and the oil
screen (see Chapter A).
– Remove the kickstarter and the shift lever.
– Remove the circlip from the engine sprocket with
suitable pliers, pull the engine sprocket off the shaft.
–Remove the 4 bolts from the generator cover and
remove the generator cover.
– Pull both dowels from the housing and discard the
gasket.
– Unscrew the spark plug with the spark plug wrench
590.29.072.000.
LOCKING THE ENGINE
–Turn the crankshaft in a counterclockwise direction
until the pickup sensor (1) is aligned with the edge of
the shim (2) welded onto the rotor.
– Remove the plug and the copper gasket and screw in
the locking bolt (3) 580.30.080.000 by hand, turning
the crankshaft back and forth to allow the locking bolt
to engage in the recess in the crankshaft
2
3
1
