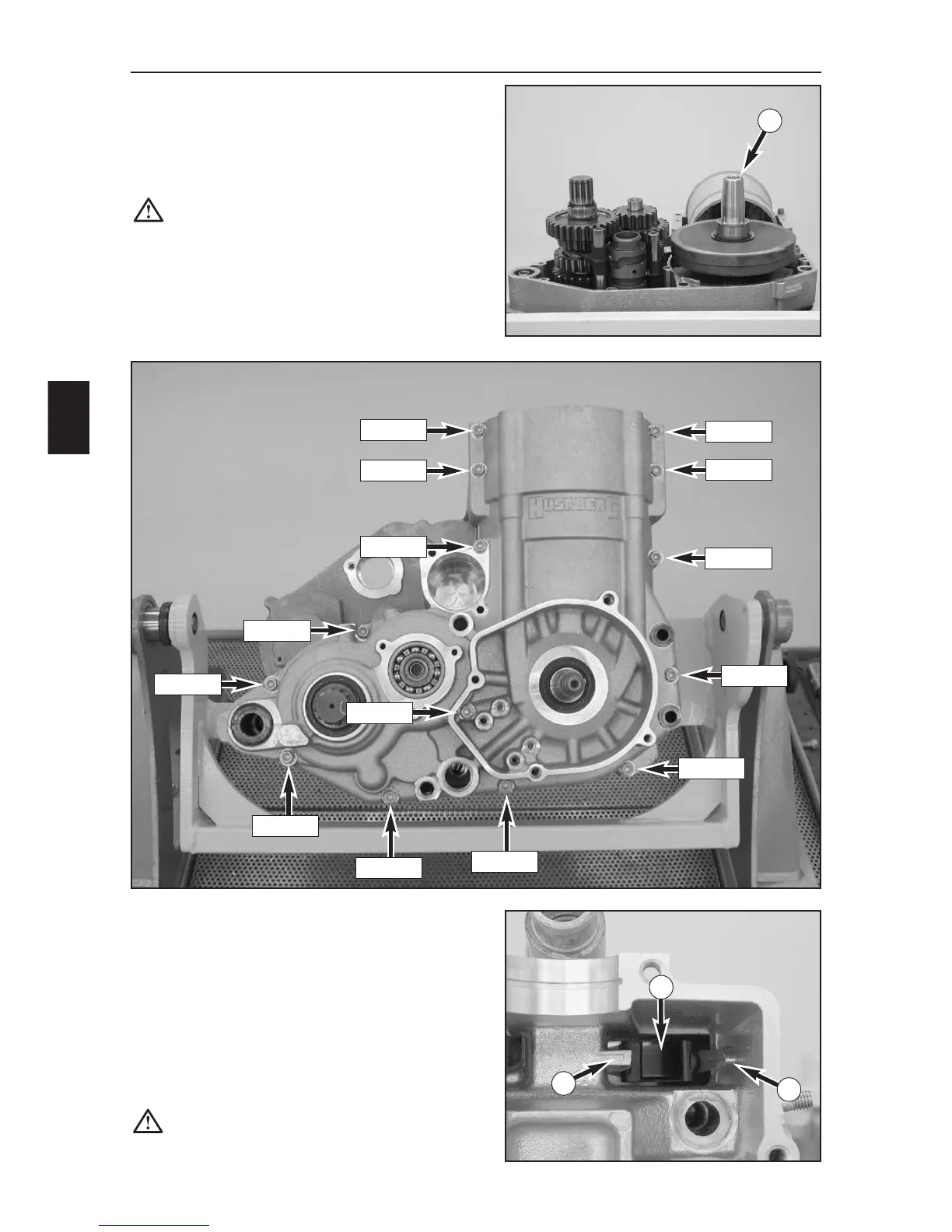

ASSEMBLING THE ENGINE
E
4
– Remove the protective sleeve.
– Mount the bolts (see above photo for bolt lengths) and
tighten slightly.
–Tap the cylinder liner down and tighten the bolts from
the inside to the outside to 10 Nm.
–After tightening, check all shafts for smooth operation
and lock the crankshaft in the TDC position.
MOUNTING THE CYLINDER HEAD
– Put a new cylinder base gasket in place and mount the
cylinder head (do not forget the sleeves).
CAUTION: run the chain guide rail (2) between
the two locating tabs (3).
M6x45
– Degrease the sealing areas on both engine case halves
and apply a thin coat of silicone gasket sealant 309098
to the sealing area on the left housing half; mount the
dowels
–Place protective sleeve 800.29.105.000 on the
crankshaft (1) mount the right engine housing half.
CAUTION: do not try to draw the two housing
halves together with the housing bolts. If
necessary, carefully tap on the housing near the
bearings with a plastic hammer.
M6x40
M6x40
M6x50
M6x50
M6x60
M6x65
M6x35
M6x50
M6x50
M6x50
M6x50
M6x60
M6x45
3
3
2
1
