SERVICING THE INDIVIDUAL PARTS

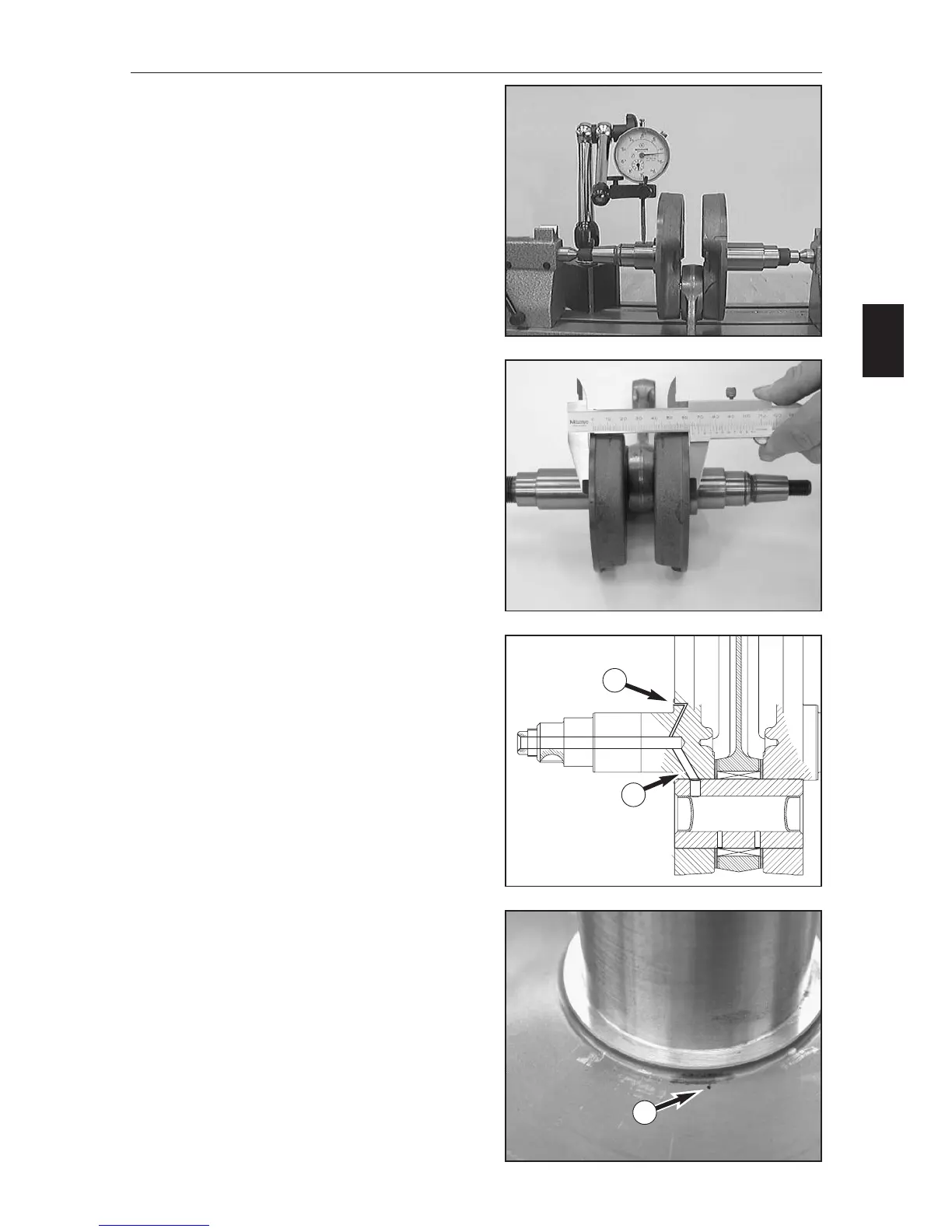

CHECKING THE CRANKSHAFT FOR LATERAL
RUNOUT
–Place the crankshaft on a roller stand or similar support
and use a dial gauge to check the crankshaft for lateral
runout.
Lateral runout: max. 0.12 mm
Check the radial clearance and axial clearance at the
conrod bearing.
Radial clearance: max. 0.05 mm
Axial clearance: max. 1.00 mm
OUTER DIMENSION OF THE CRANKSHAFT
WEB
– Measure the outer dimension of the crankshaft web
using a sliding gauge as shown.
Outer dimension of crankshaft web = 60 mm ± 0.05 mm
–Clean the crankshaft thoroughly, blow compressed air
through the oil holes to the crank pin (1) and to the
ball bearing in the balance weight (2) and make sure
they are not clogged.
1
2
2
