SERVICING THE INDIVIDUAL PARTS
D
5

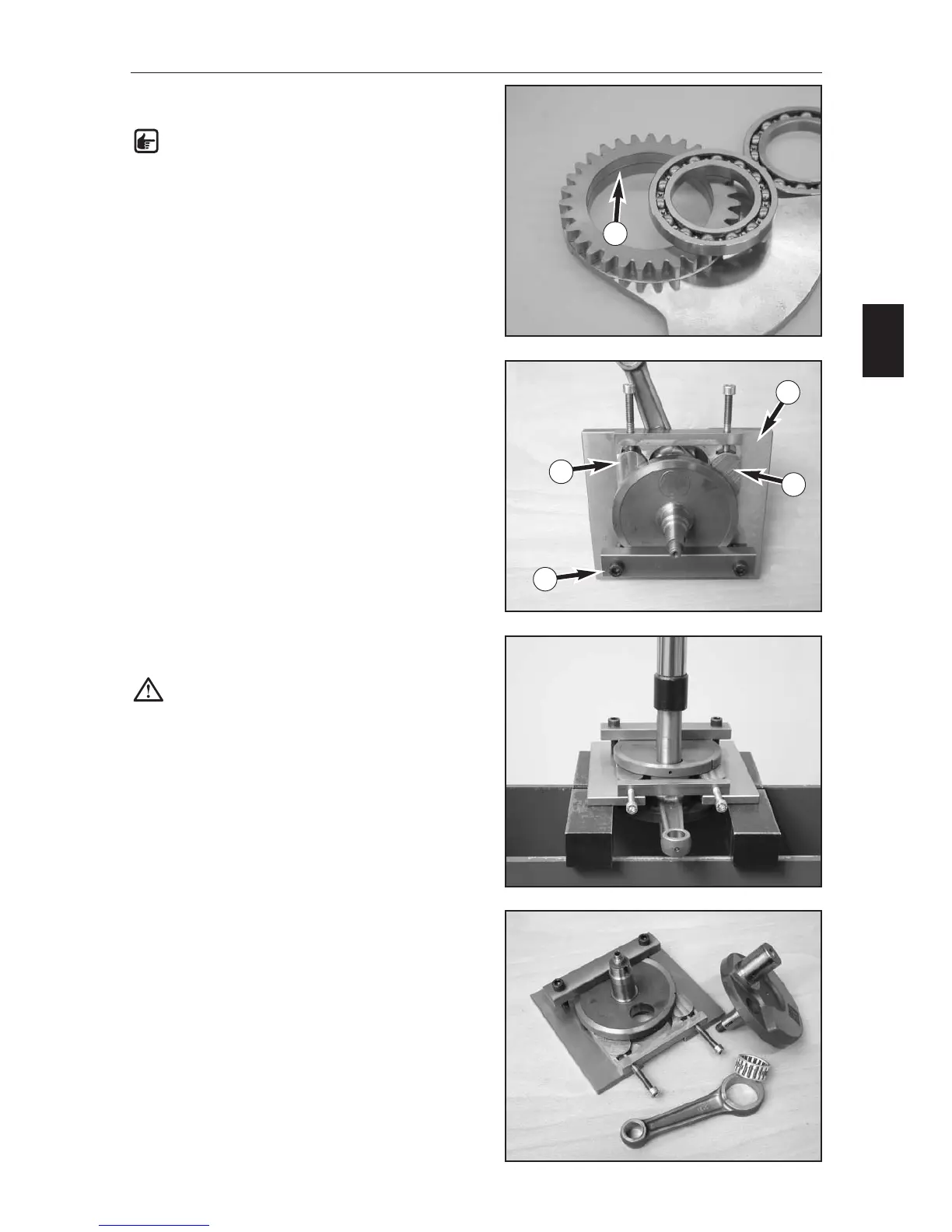

–Press the outer ball bearing out of the balance weight
(on the side with the toothing).
NOTE: the ball bearing cannot be pressed out
through the bottom since it will be blocked by
the ring (1).
PRESS OUT THE CRANK PIN
–Place the crankshaft and a crankshaft web in the press
out tool 800.29.035.000 (2) as shown in the photo,
being careful not to jam the conrod.
– Move the wedges (3) until the crankshaft lies flat.
–Tighten the screws on the clamping bracket (4).
–Use a hydraulic press to press the crankpin through
with the pressing pin.
CAUTION: hold the lower part of the crankshaft
to keep it from falling down.
–Press the crankpin out of the second crankshaft web in
the same manner.
– Check the crankpin parts, replace any damaged or
worn parts and clean the crankshaft webs.
1
2
3
3
4
