ELECTRIC SYSTEM
F
6

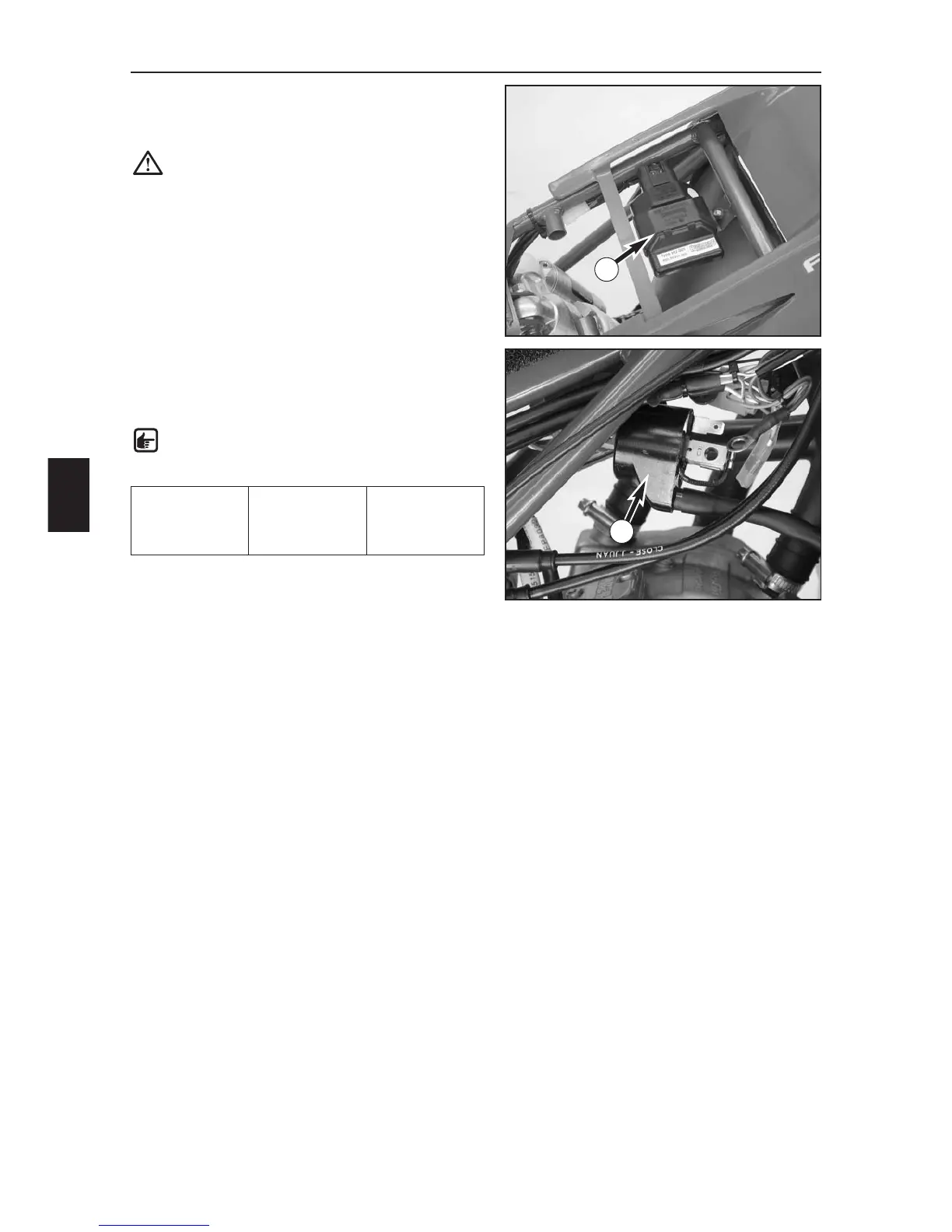

CDI UNIT
Check the cables and socket connections to the CDI unit.
The CDI unit can only be tested on an ignition test stand.
CAUTION: never test the CDI unit with a
conventional measuring device. Highly sensitive
electronic components could be destroyed.
CHECKING THE IGNITION COIL
– Disconnect the ignition coil and remove the spark plug
connector.
–Use an ohmmeter to take the following measurements:
NOTE: the following measurements only
correspond to the setpoint values at a coil
temperature of 20° C.
Replace the ignition coil if the measured values deviate
significantly from the setpoint value.
Measurement Cable colors Resistance
Primary coil blue/white-ground
0,30 Ω ± 0,05 Ω
Secondary coil
blue/white ignition wire
6,30 kΩ ± 1,26 kΩ
1
2
