DISASSEMBLING THE ENGINE
C
3

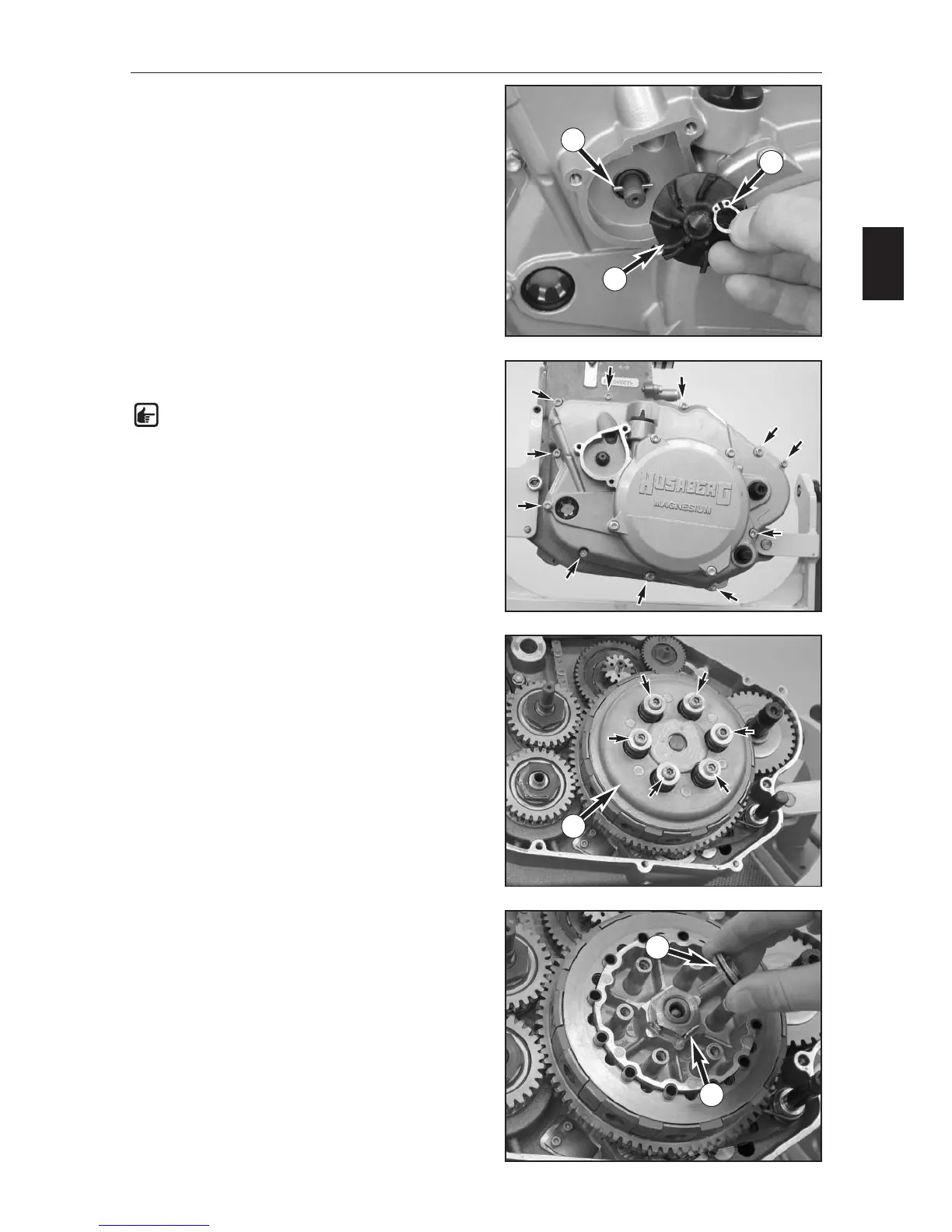

– Remove the circlip (1) from the water pump shaft.
– Carefully pull out the water pump wheel (2) with pliers
and remove the pin (3) from the shaft.
– Remove all of the bolts in the clutch cover and remove
the clutch cover.
NOTE: the outer cover does not need to be
removed separately.
–Discard the gasket and the O-ring in the water duct,
pull the dowels out of the housing.
REMOVING THE CLUTCH
– Loosen the clutch bolts crosswise to prevent the clutch
disks from jamming. Remove the pressure cap (4)
together with the bolts, spring retainer and clutch
springs.
– Remove the pressure piece (5) and the push rod.
– Remove all of the clutch disks from the outer clutch
hub together.
– Remove the clutch sleeves from the inner clutch hub.
– Bend up the lock washer (6) for the clutch nut.
1
2
3
4
5
6
