SERVICING THE INDIVIDUAL PARTS
D
17

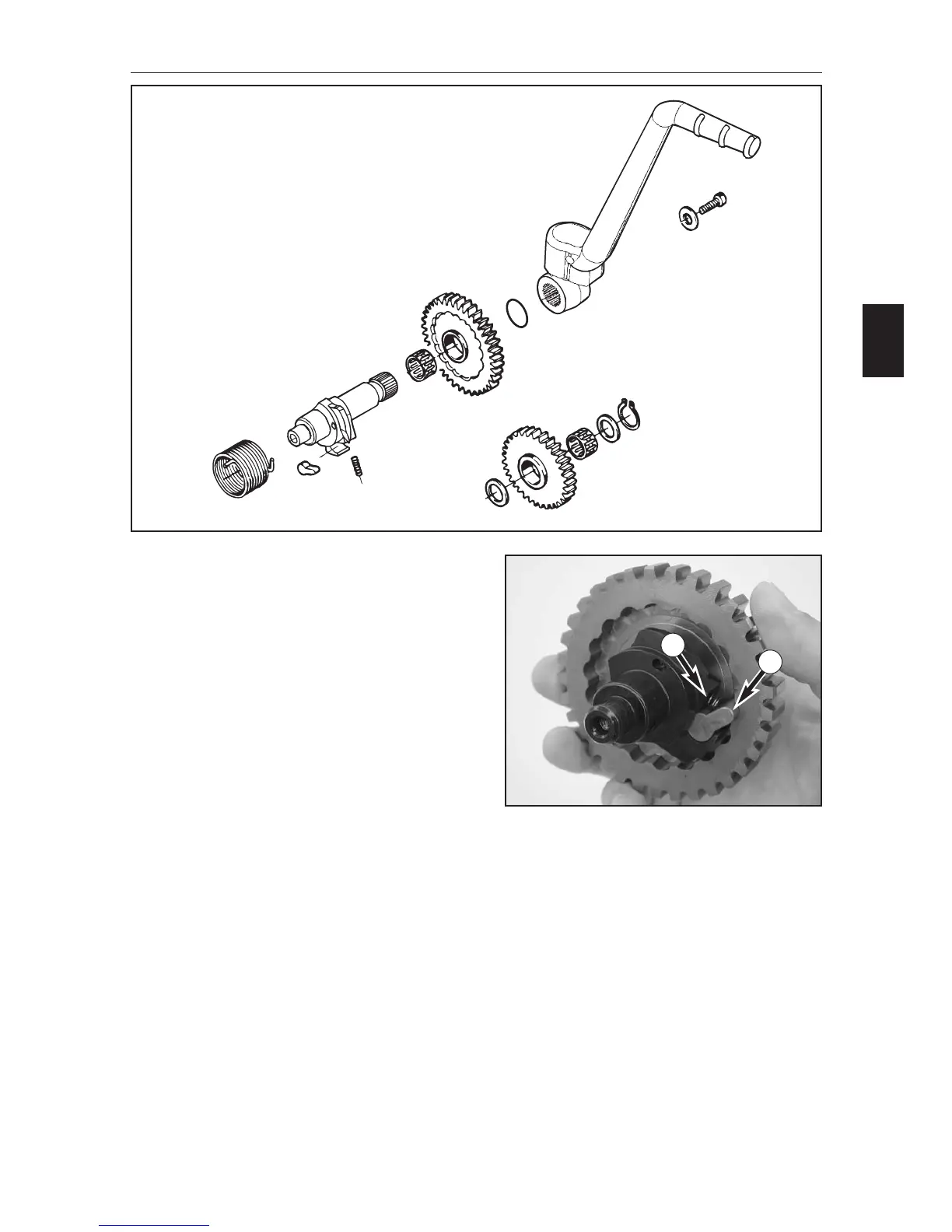

CHECKING THE KICKSTARTER FOR WEAR
Remove all parts from the kickstarter shaft, clean and
perform the following visual test:
– Check the toothing and the driver running surface on
the kickstarter wheel (1) for wear.
– Check the kickstarter shaft (2) for wear or damage.
– Check the inner clutch hub (3) and the driver spring (4)
for wear or damage.
– Check the toothing on the kickstarter idler (5) for wear.
– Check the clearance of both needle bearings (6).
– Check the kickstarter spring (7) for damage.
– Insert the driver spring in the kickstarter shaft, slide the
inner clutch hub into the recess.
– Slide the kickstarter wheel together with the needle
bearing onto the kickstarter shaft and make sure the
inner clutch hub engages.
