FUEL SYSTEM
G
2

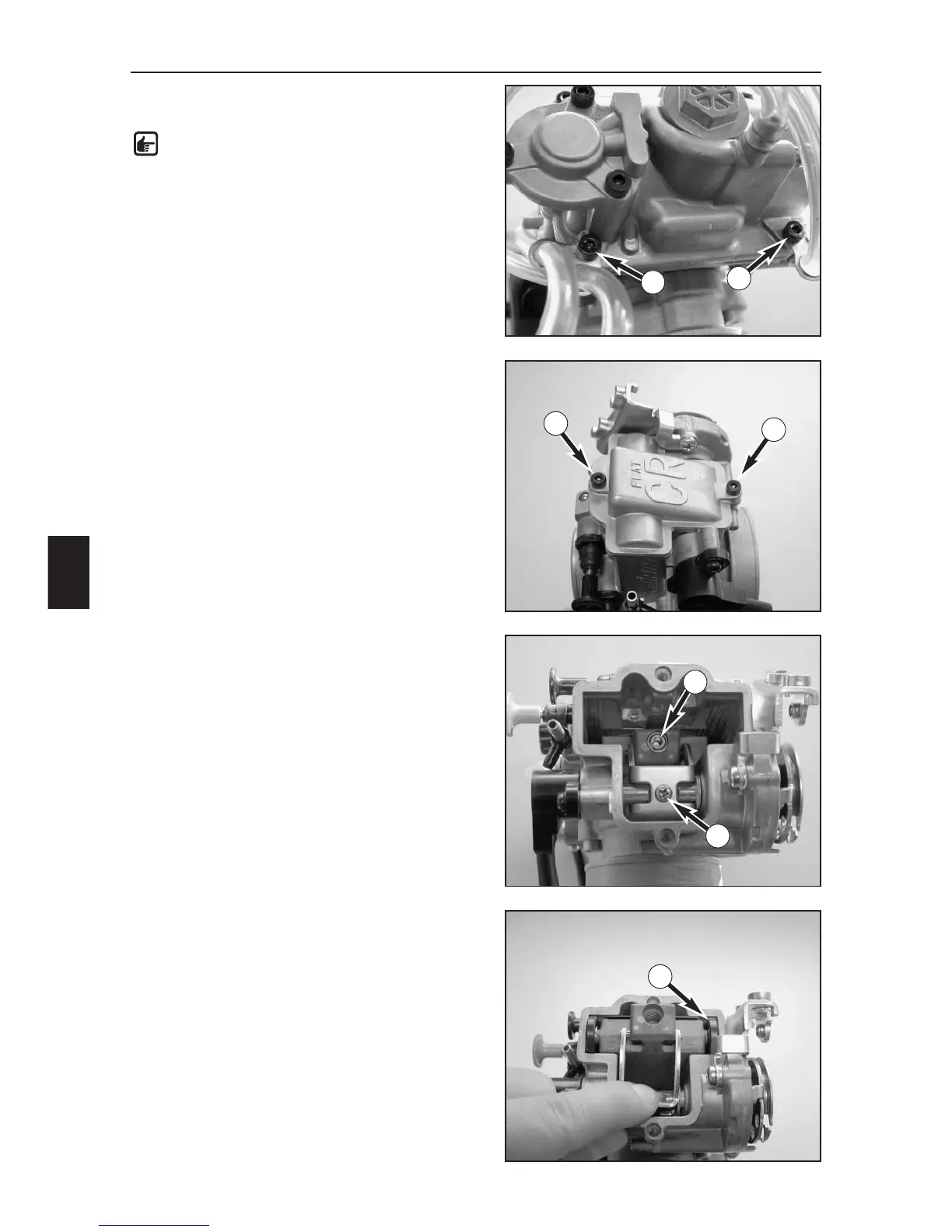

DISASSEMBLING THE KEIHIN FCR-MX 39/41
CARBURETOR
NOTE: Before you start to disassemble the
carburetor, make sure your workplace is clean
and offers enough room to spread out the
individual carburetor parts.
–
Dismount the carburetor and remove any accumulated dirt.
–
Loosen the 2 screws (1) and disconnect all of the vent
hoses from the carburetor.
–
Remove the 2 screws (2) and lift the slide cover and gasket
from the carburetor.
–
Remove the screw (3) and pull the jet needle from the
throttle slide.
–
Remove screw (4).
–
Lift the throttle slide arm and take the throttle slide
including the roller (5) and slide shim out of the carburetor.
1
1
2
2
3
4
5
