1. FUNCTION
F-signal =
Remote signal from the charging station which has a
range of 6 – 7 metres. The signal is generated by the
large coil in the charging station plate. The F-signal
guides the mower in the direction of the charging
station.
When there is no F-signal, the Automower
®
will not
be able to find the charging station. The mower will
eventually stop and display the fault message
Low
battery volt
age.
N-signal =
Near signal from the charging station with a range of
approximately 1 metre. The signal is generated by
the two small coils in the charging station plate. The
N-signal guides the Automower
®
directly into the
charging station, so that the charging strips and
contact strips make contact.
The Automower
®
cannot enter the charging station
when there is no N-signal. The mower will eventually
stop and display the fault message
Low battery
voltage
Guide 1 and Guide 2 =
Signal that the charging station transmits out through
the guide wires. The Guide 1 and Guide 2-signals lead
the mower along each Guide wire to or from a remote
area. Guide 1 and Guide 2 are marked at the rear of
the charging station. Guide 2 is only available for
230 ACX, Solar Hybrid and 260 ACX.
Automower
®
can not follow the guide wire if there is no
Guide-signal.
1.8 Loop signal strength
Double flashing can be remedied with a Signal
amplifier (522 42 58-01) which is available as an
accessory.
The loop is most easily controlled using the LED in
the charging station (or the 210 C loop generator).
Check the loop signal by checking what the green
LED is indicating.
• Solid light = the signal is good.
• Flashing every other second = break in the loop
and no signal available.
Flashing twice every other second = weak signal. This
may be due to the fact that the boundary wire is
beyond 500 m or the wire is damaged.

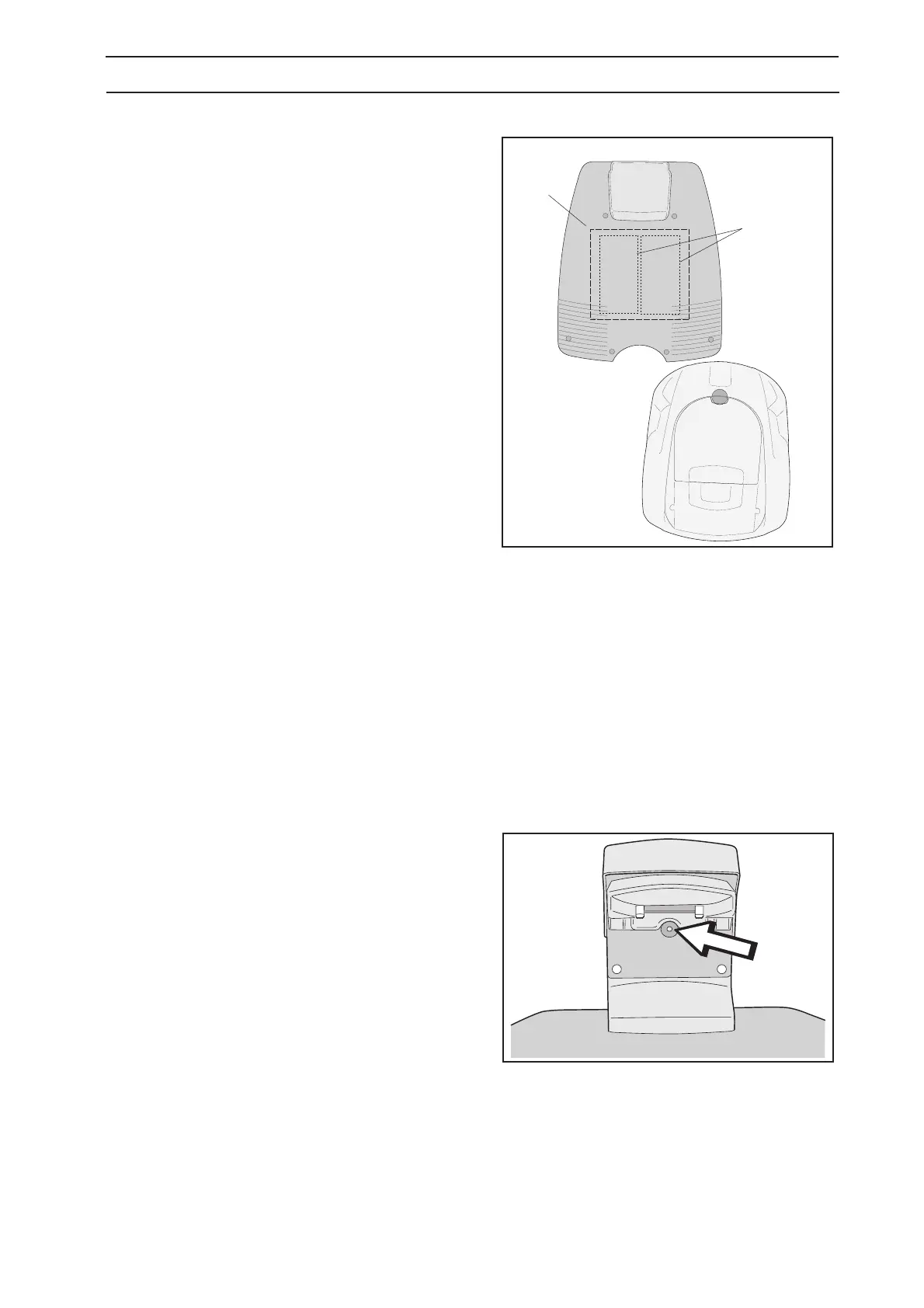

Automower
®
in the test position
N
F
