22
Installation (Cont'd)
Corrigan Retro• t Instructions

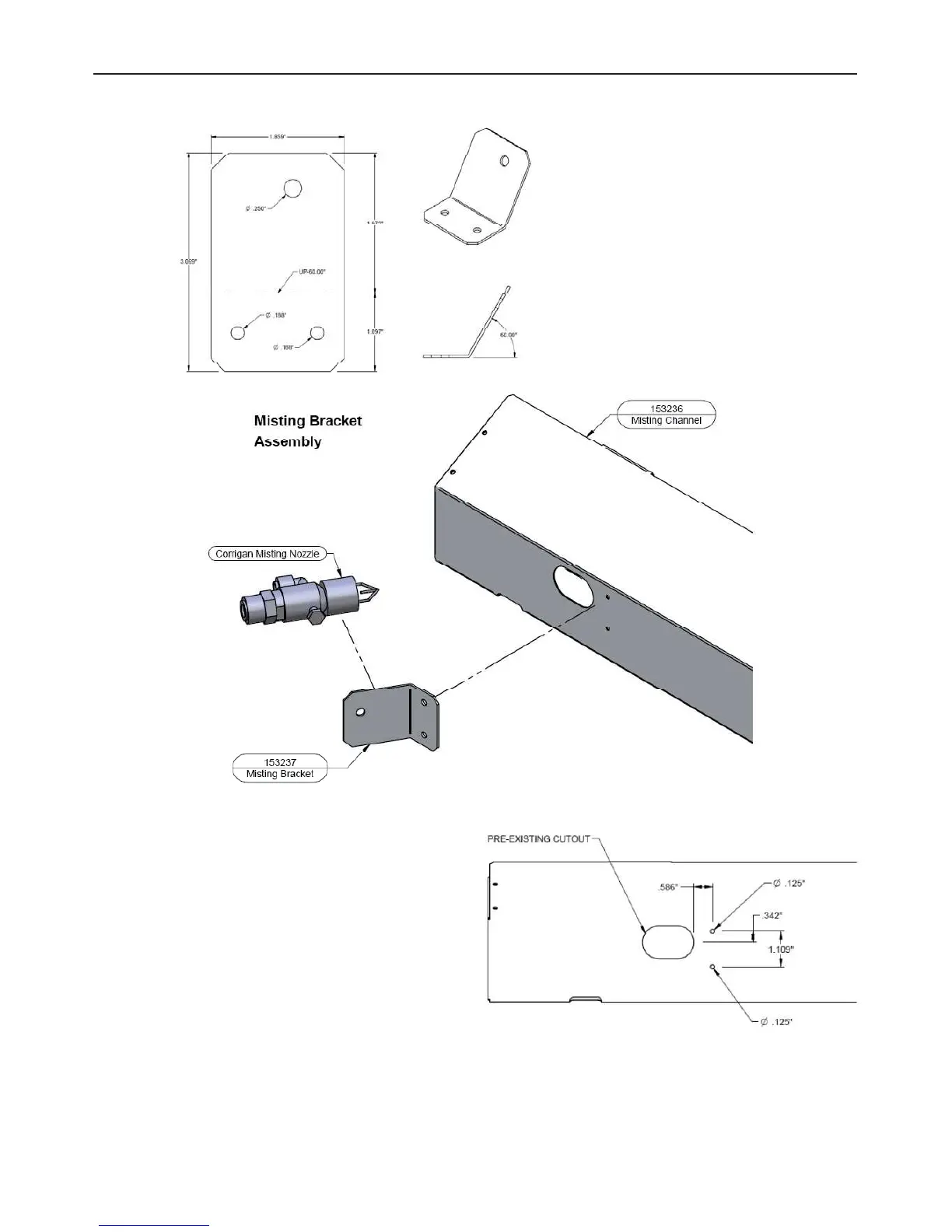

Step 1: Marking and Drilling Pilot Holes
If the existing Misting Channel does not have 1/8" diameter
holes in the location shown, these holes will have to be
marked and drilled.
Option 1:
Mark the two hole locations as speci! ed in the
diagram.
After marking a mark, use a sharp 1/8" diameter drill bit to
create a clean through hole.
To Next Page
