23

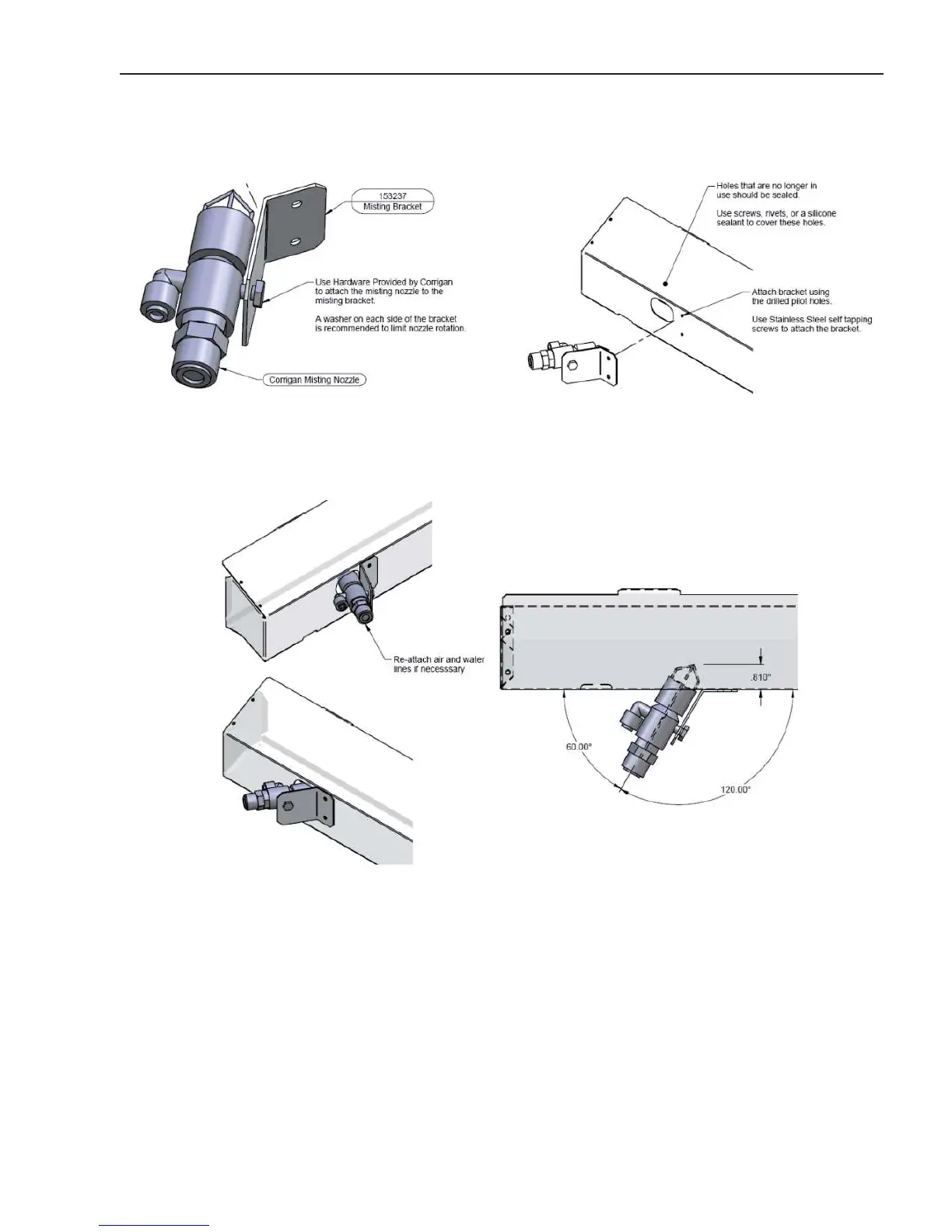

Step 2: Attach misting nozzle to misting bracket
The spraying end of the nozzle must point toward the end
of the bracket with two holes.
See the diagram below.
Step 3: Attach Nozzle/Bracket assembly to Misting
Channel
The nozzle will protrude into the oblong cutout.
See the diagram below.
Installation (Cont'd)
Step 4: Final Assembly and Inspection
The nozzle should be positioned as shown. Some ! nal adjustment may be necessary to optimize misting, depending
on case operating conditions.
Make adjustments to angle by manually bending bracket if necessary. This may require the use of hand tools. Use eye
protection at all times.
Note: The nozzle tip should protrude into the cutout by approximately half of the nozzle head length.
