Pg 2.9 S23P rev a
SECTION 2A, CONTROL CONSOLE

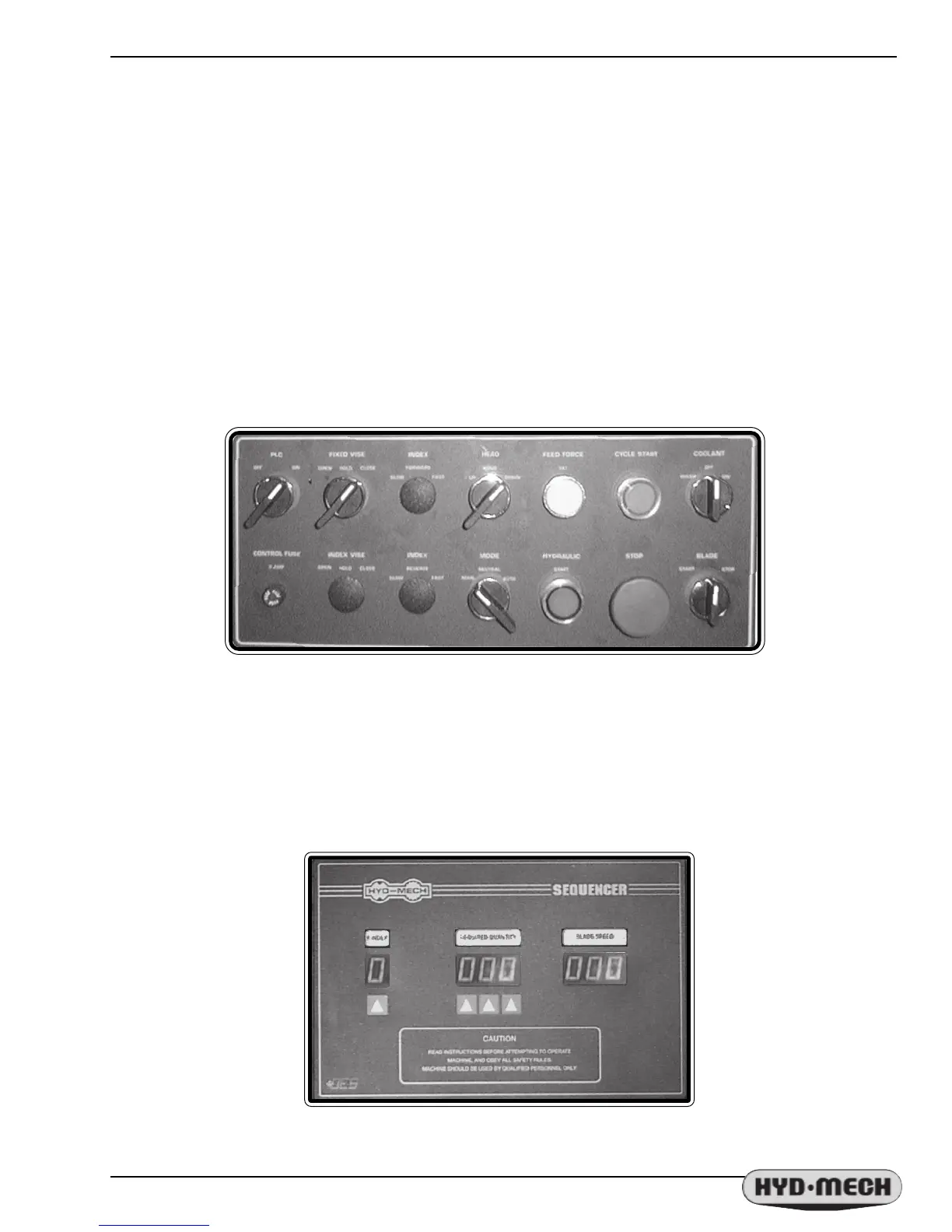

OPERATOR CONTROL CONSOLE
The operator control console provides the operator with all the controls necessary to operate the saw after the
cutting angle has been set and the stock has been loaded and secured. All of the electrical control functions of the
S-20P Series II or S-23P saw are provided to the operator from the control console which incorporates the manual
control switches, the Sequencer controller, and the Head Up Limit setting knob. The hydraulic functions of the S-
20P Series II / S-23P are controlled from the Hydraulic Feed Control unit. This unit is covered in detail in Section
2B of this manual - Saw Cutting Controls.
The manual control switches allow the operator to raise and lower the Head of the saw, turn the blade on and
off, open and close the vises, move the shuttle, and turn the coolant supply on and off. The control switches are
described by function on the following three pages
The Sequencer controller provides the operator with the ability to operate the saw in automatic mode. Starting
on page 2.12, this controller is described in detail.
Sequencer Controller
Manual Control Switches for Sequencer
To Next Page
