Pg 2.14 S23P rev a
Parameter Options Setting

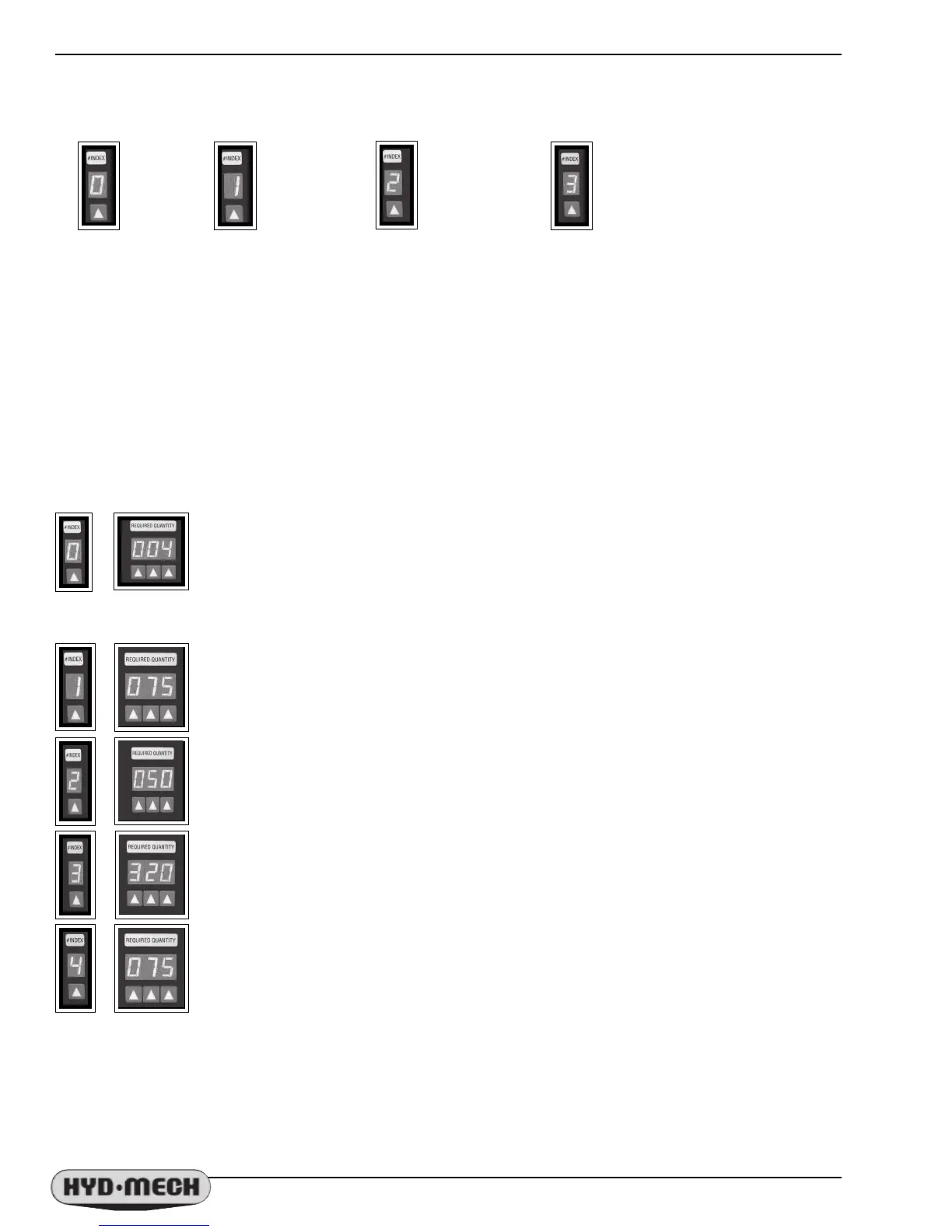

The #INDEX display with the single digit is used to show which option is active and can be set.
The Options are:
OPTION 0 : With option 0 there is only one setting. This function is the active option
default when the
Parameter Setup is entered by holding down the #INDEX key as the PLC switch is turned
ON.
SETTING: 004 This is the default setting for normal machine operation of the vise and
cutting head.
OPTION 1 : With option 1 the vise open delay interval can be adjusted. For changes of
this setting contact Hyd-Mech Saws as to the possible ramifications.
OPTION 2 : With option 2 the Blade wheel circumference measured in feet, times a
factor of ten (Example, for S-23P, 5 feet x 10 = 50 ), is entered into the program. This
value is used to calculate and display the blade speed.
OPTION 3 : With option 3 the setting value is the number of pulses sent by the blade
speed proximity sensor to the Sequencer for each revolution of the blade wheel. The setting
for the S-23P is 320 pulses per revolution.
OPTION 4 : With option 4 the vise open time can be adjusted. For changes of this
setting contact Hyd-Mech Saws as to the possible ramifications.
Parameter Options
1: Vise Open
Delay Time
2: Blade Wheel
Circumference
3: Blade Wheel
Pulses/Revolution
0: Machine
