Pg 2.13 S23P rev a
4. In the Manual mode the Head should be set at the required Head Up limit position. With the vise open the
stock can be loaded and set in position for cut length. At this time the operator can close the vise in Manual
mode to hold the stock.
5. Switching to Automatic mode and pressing the Cycle Start push-button will cause the vise to close if it is
open and illuminate the push button.
6. The Blade switch must then be turned to Start and the cutting cycle begins. The blade will be turning and the
Head will descend at the rate set by the Feed Rate knob. At the end of the cycle the blade stops and the head
moves back up to the Head Up limit position that has been set. The vise will open when the Head is Up and the
Cycle Start push-button light will go off.
7. The operator can then reposition the stock, press the Cycle Start push-button (which will light) and the vise
will close. Starting the blade will begin the next cycle.

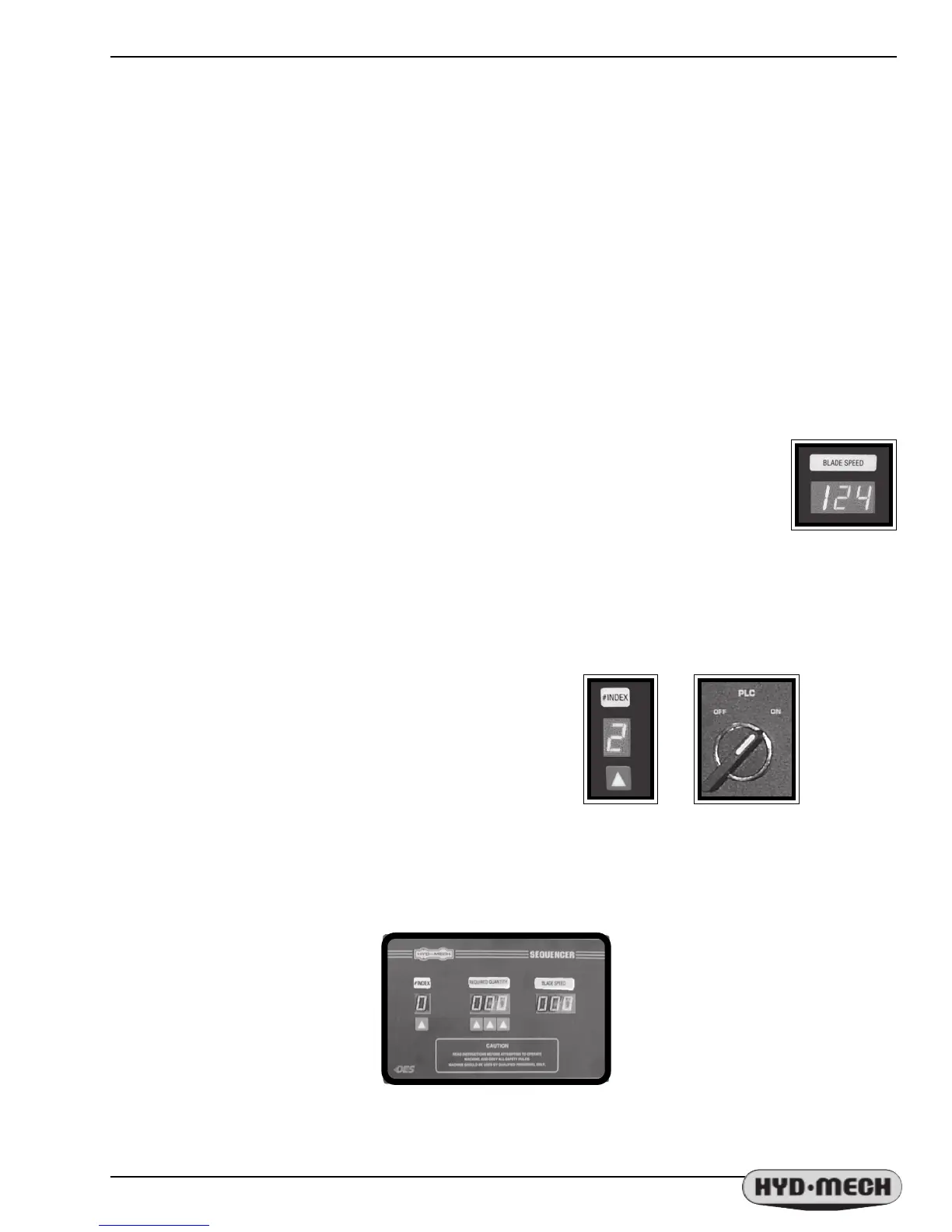

BLADE SPEED INDICATOR
The running blade speed is displayed on the Sequencer display face in either the Manual or
Automatic Mode. The units measurement is factory set in Surface Feet Per Minute or Metric. This
setting can be changed by a skilled operator. Contact Hyd-Mech Saws for assistance with this
change.
SEQUENCER PARAMETER SETUP
The Sequencer program is factory set with settings that allow the saw to be accurately configured. These
settings are available to be changed for different machine operation configurations.
To access the Parameter Settings:
1) Turn the Sequencer OFF with the PLC switch.
2) Hold down the entering key below the #INDEX.
3) Turn the Sequencer ON with the PLC switch.
The displays will light, a brief program number message will appear for a brief instant and then the following will
be displayed on the Sequencer face.
---- Continued ----
Turn switch
to ON.
Hold down
key.
